DTC P2271: Middle Ho2S Signal Stuck Rich: Notes

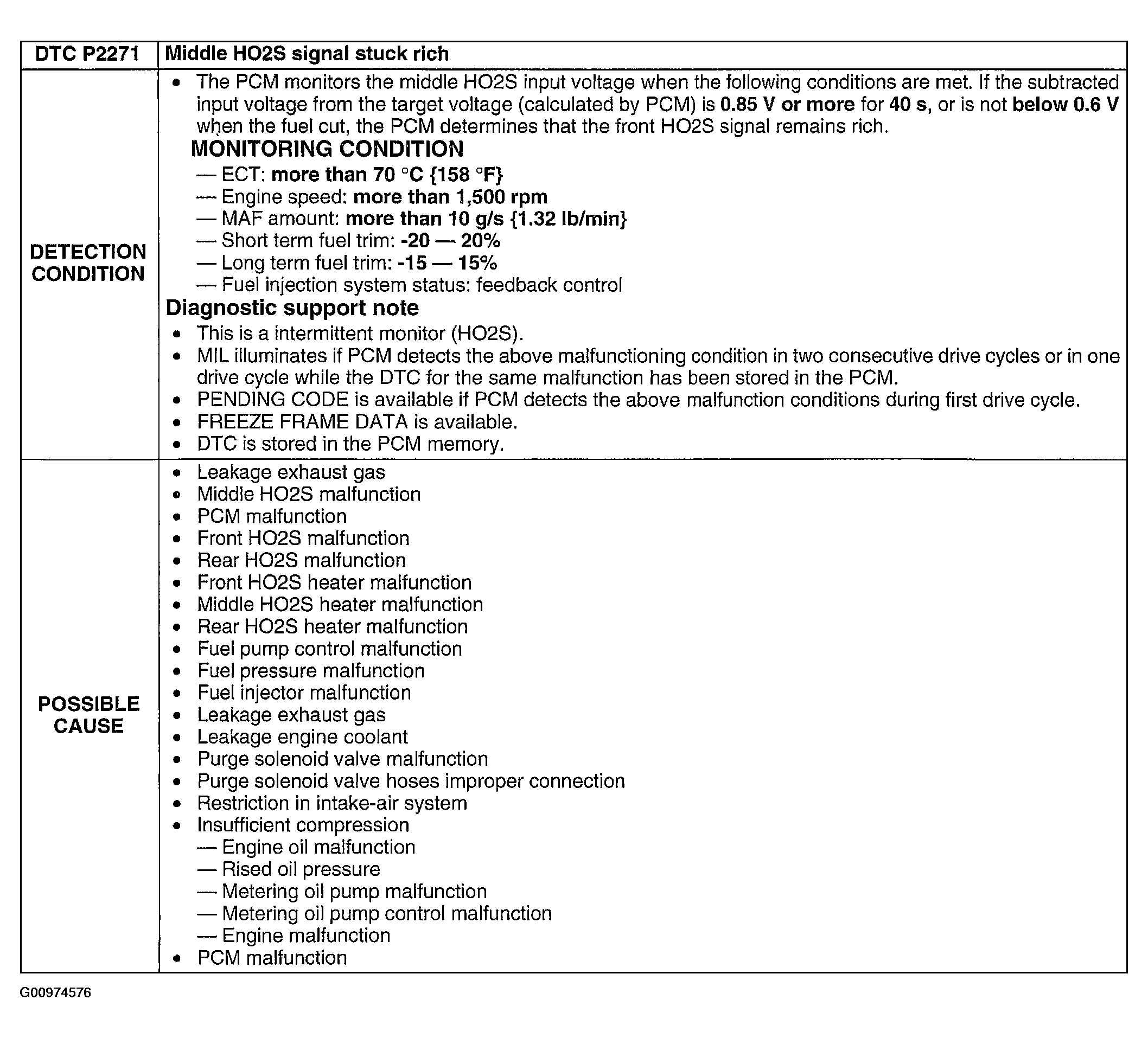

Fig 1: DTC P2271: Detection Condition & Possible Causes Chart

G00974576

Courtesy of MAZDA MOTORS CORP.
