DTC P2229: BARO Sensor Circuit High Input
>>
Diagnostic procedure
Diagnostic procedure

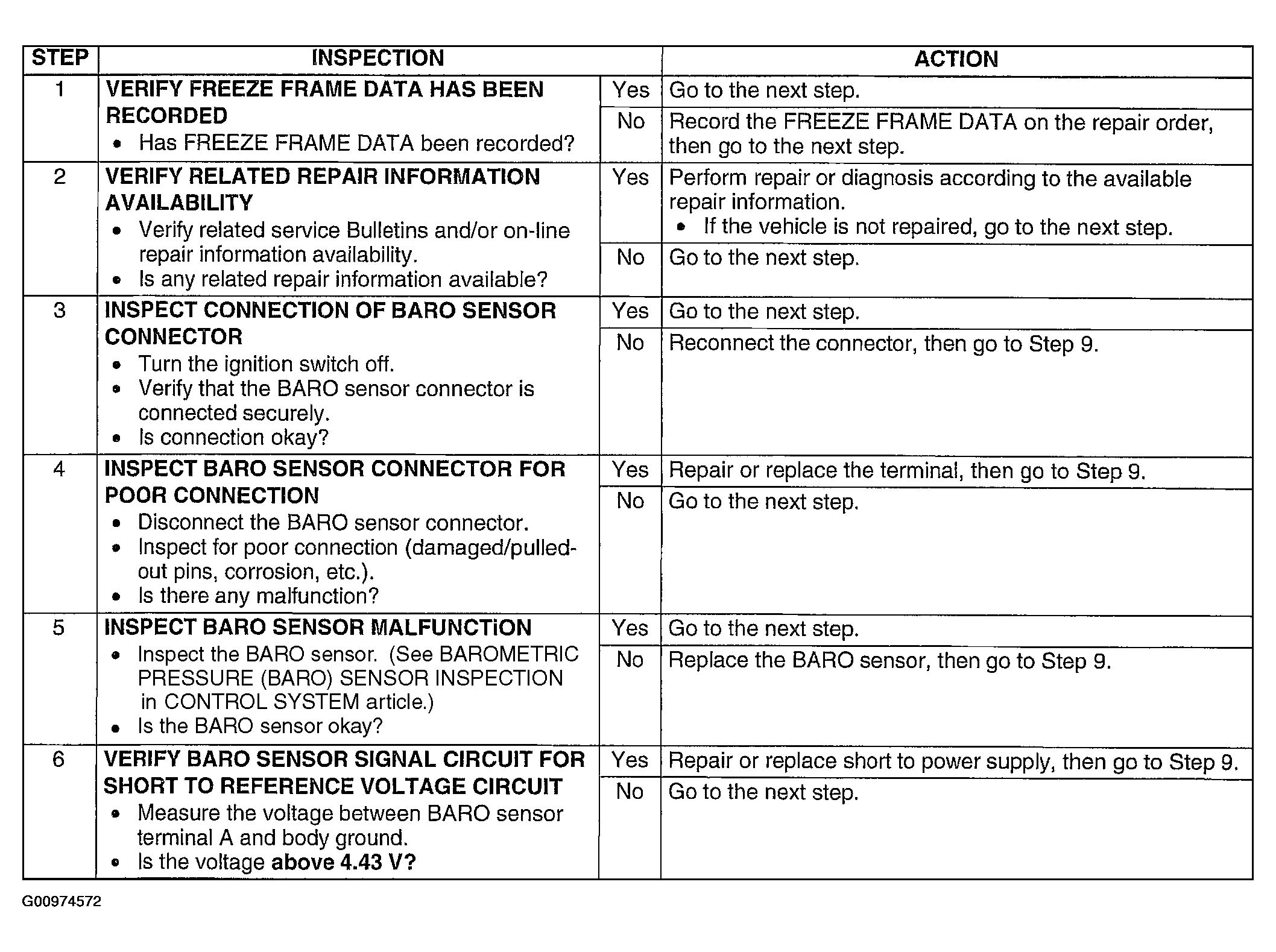

Fig 1: DTC P2229: Diagnostic Procedure Chart (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.

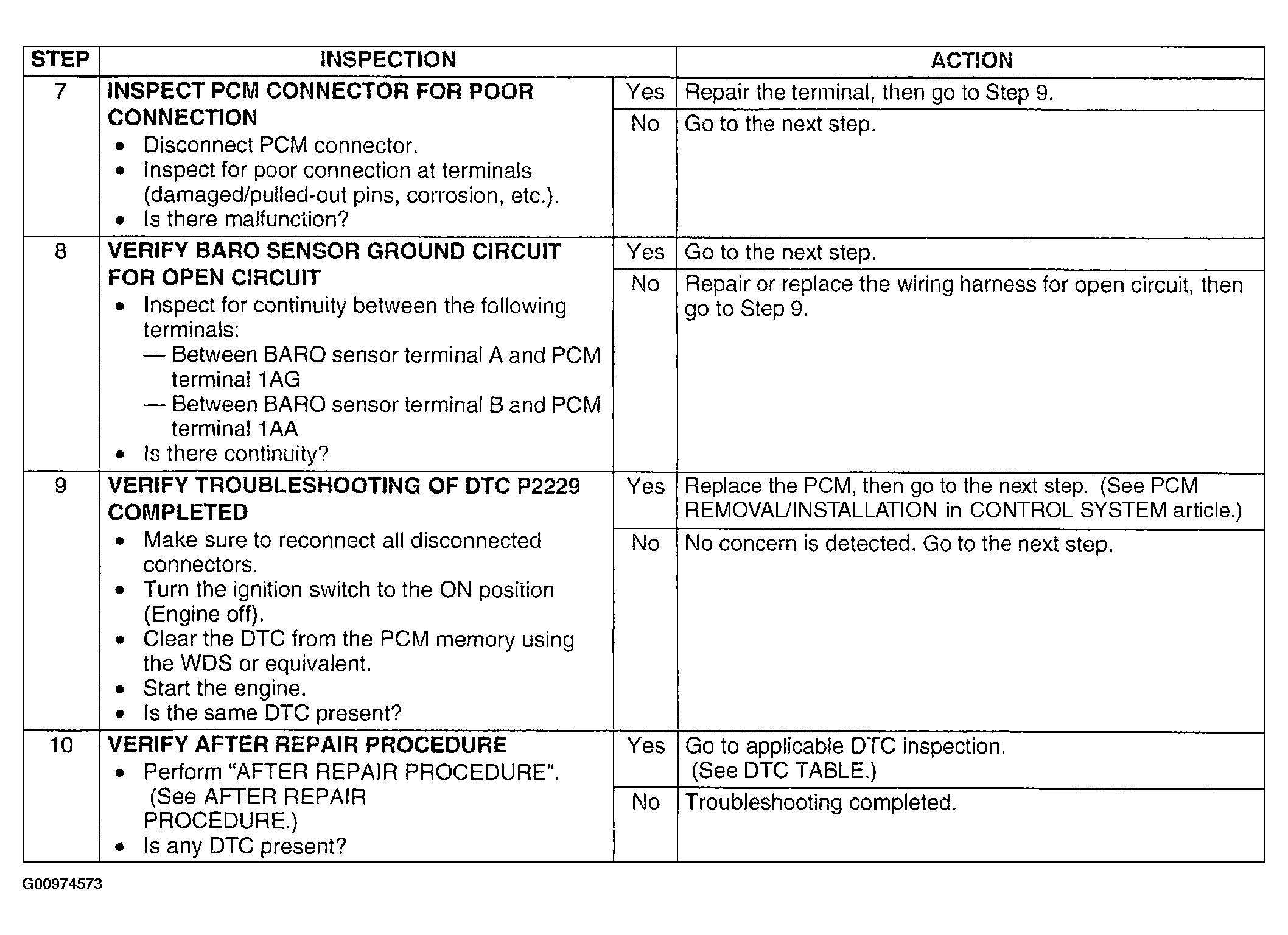

Fig 2: DTC P2229: Diagnostic Procedure Chart (Steps 7-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
