DTC P2178: Fuel System Too Rich At Off Idle: Notes

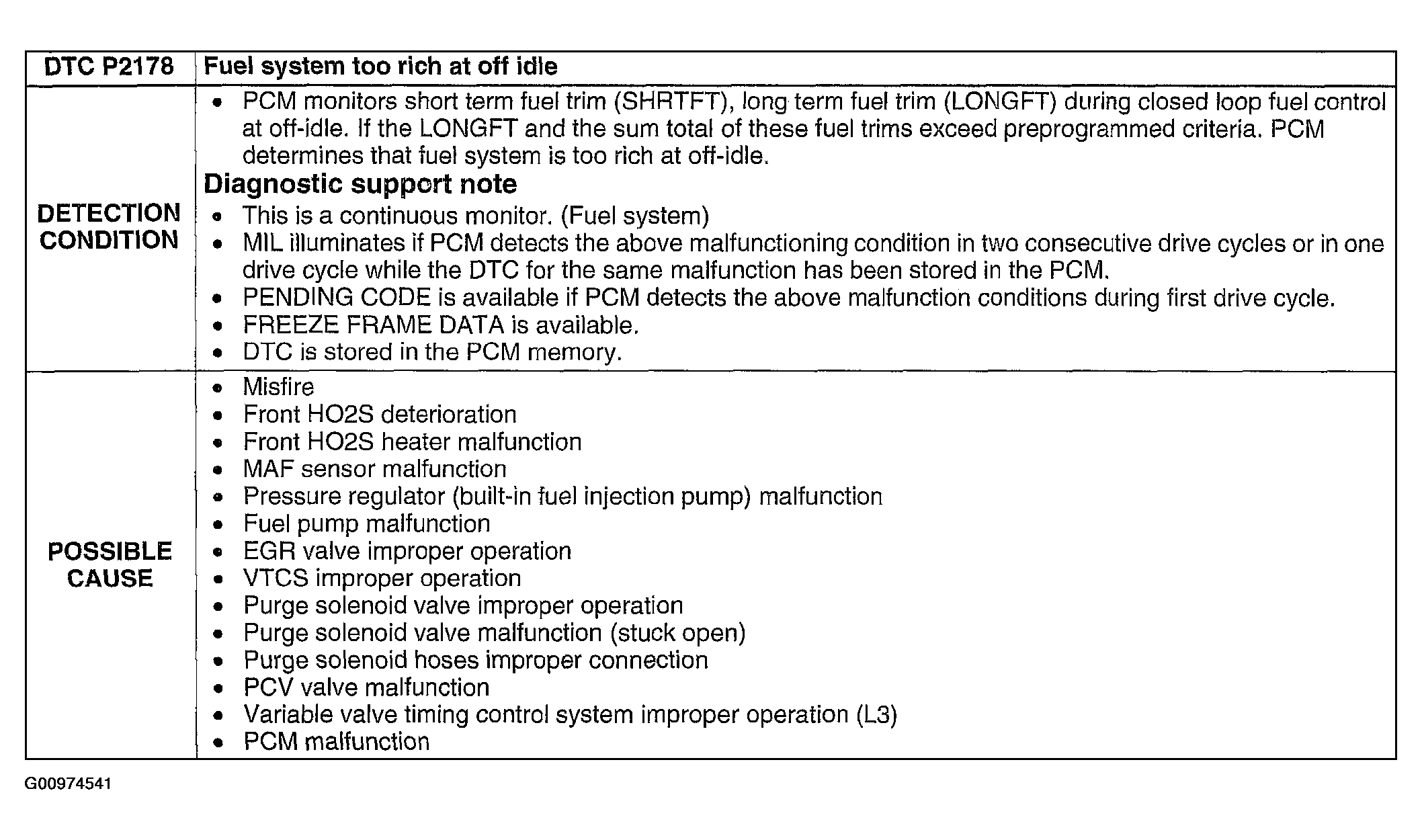

Fig 1: DTC P2178: Detection Condition & Possible Causes Chart

G00974541

Courtesy of MAZDA MOTORS CORP.
