Home >> Mazda >> 2004 >> 3 i, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P2096: Target A/F Feedback System Too Lean >> Notes

DTC P2096: Target A/F Feedback System Too Lean: Notes

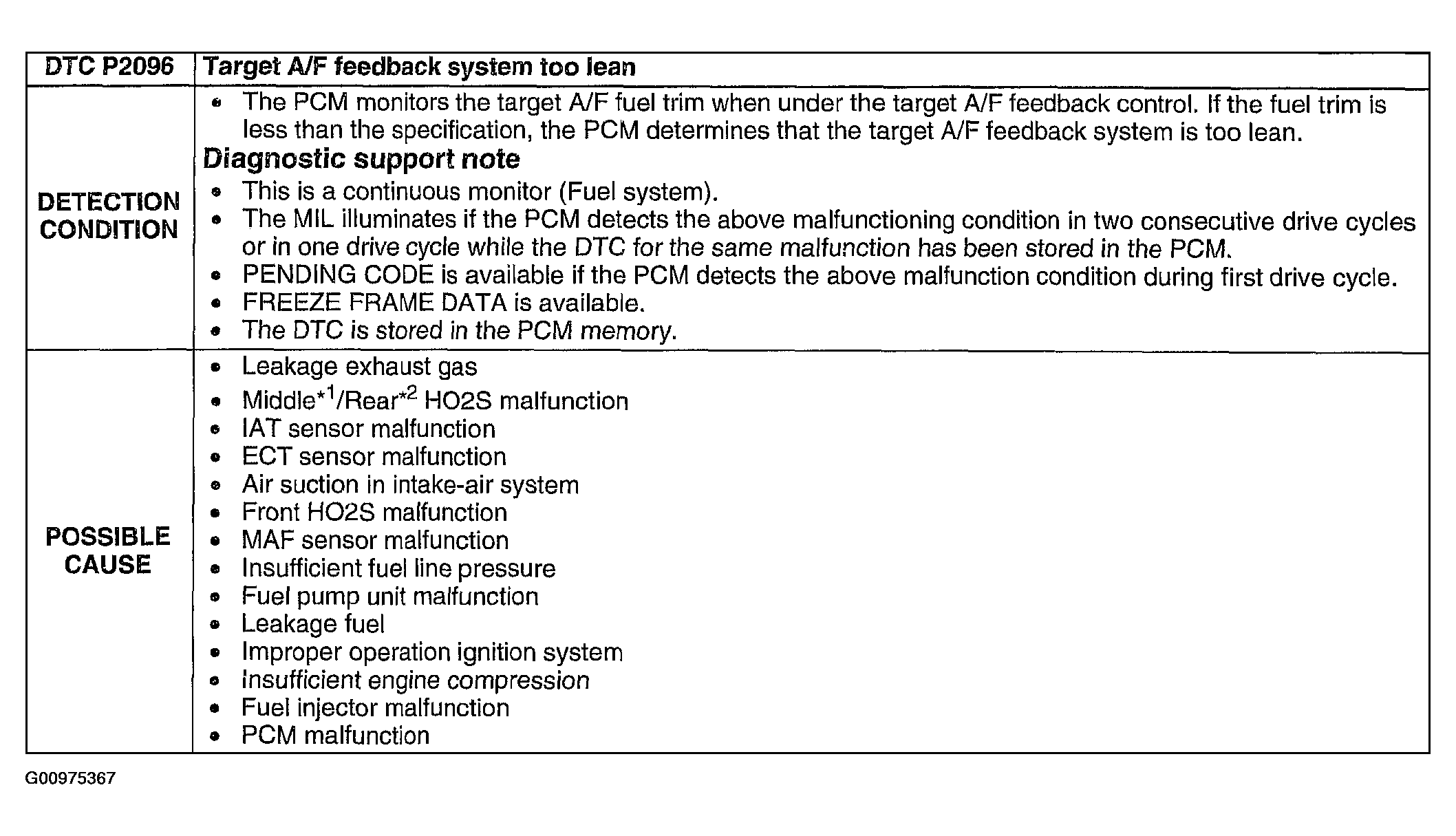

Fig 1: DTC P2096: Detection Condition & Possible Causes Chart

G00975367

Courtesy of MAZDA MOTORS CORP.
