DTC P0661: Variable Intake-Air Solenoid Valve Circuit Low Input
>>
Diagnostic procedure
Diagnostic procedure

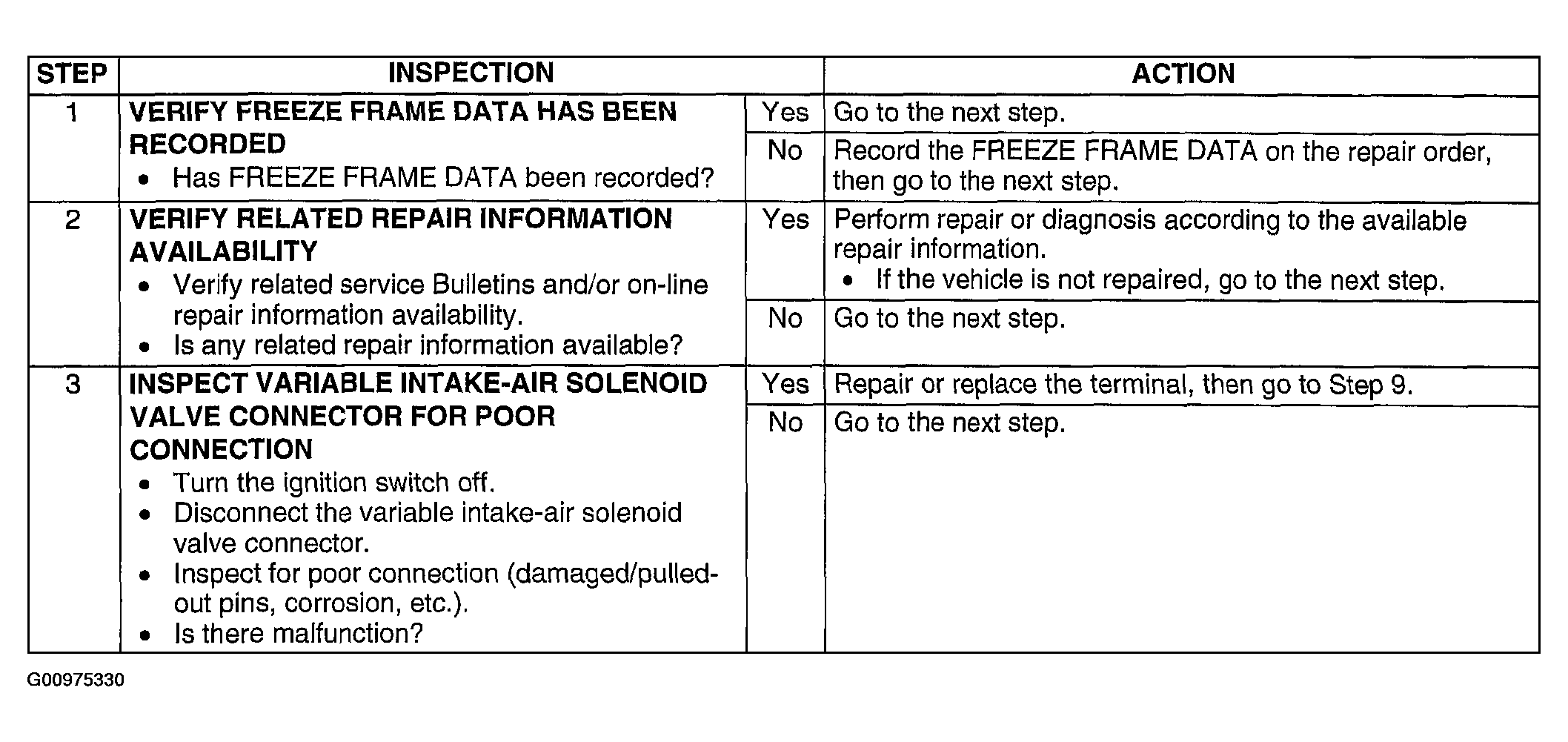

Fig 1: DTC P0661: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

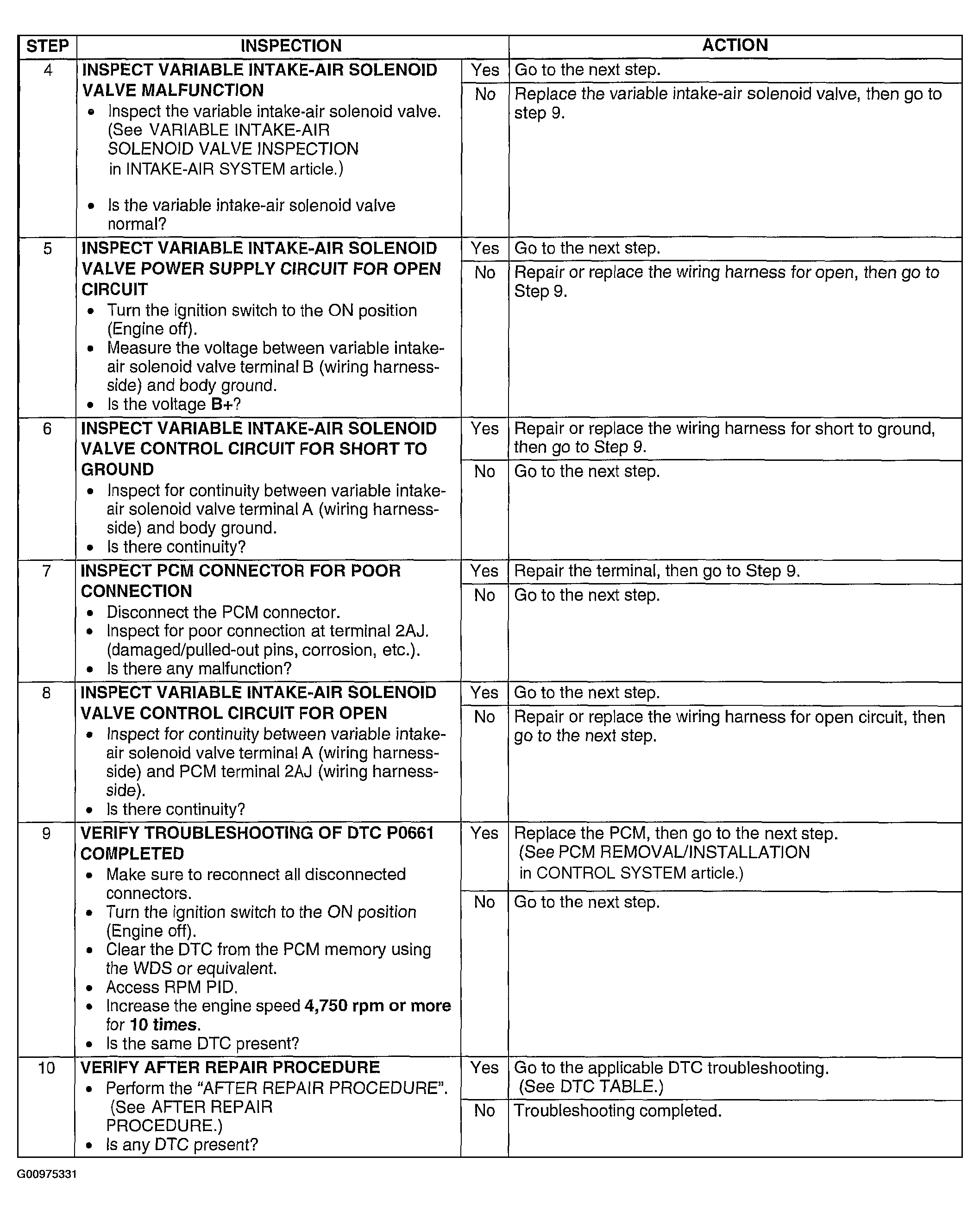

Fig 2: DTC P0661: Diagnostic Procedure Chart (Steps 4-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
