Mazda
>>
2004
>>
3 i, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System]
>>
DTC P0610: Pcm Vehicle Options Error
>>
Diagnostic procedure
Diagnostic procedure

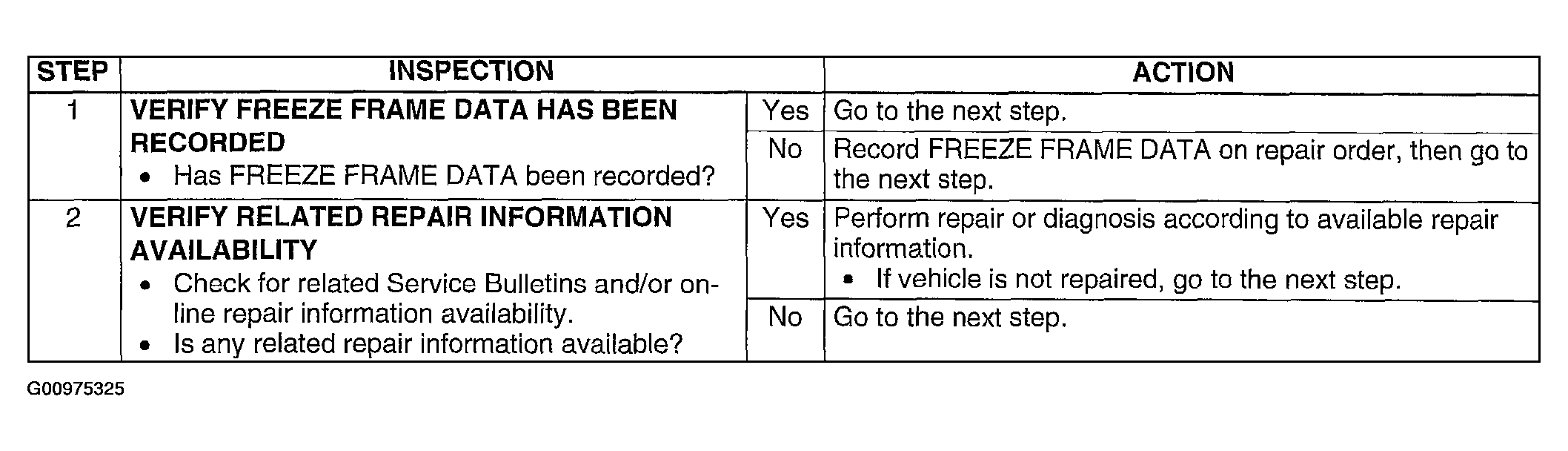

Fig 1: DTC P0610: Diagnostic Procedure Chart (Steps 1 & 2)
Courtesy of MAZDA MOTORS CORP.

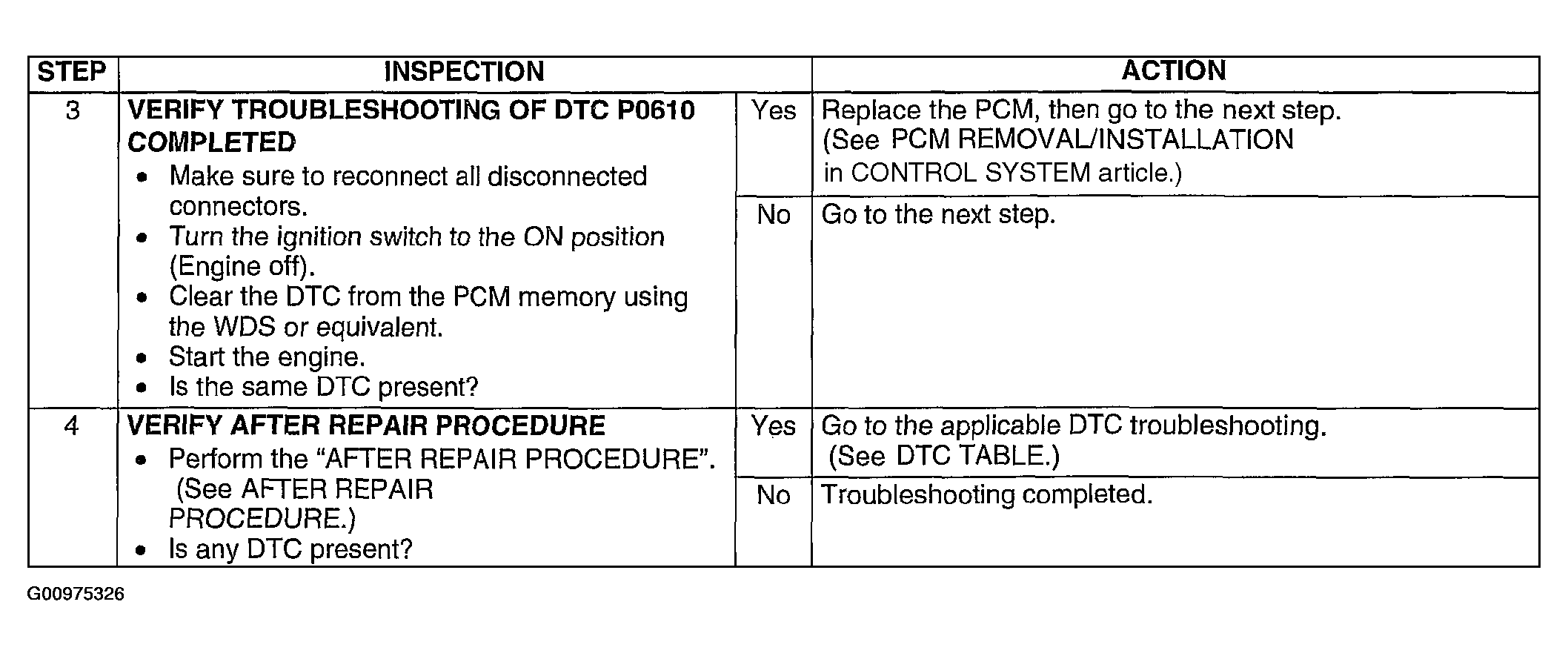

Fig 2: DTC P0610: Diagnostic Procedure Chart (Steps 3 & 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
