Home >> Mazda >> 2004 >> 3 i, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0463: Fuel Gauge Sender Unit Circuit High Input >> Diagnostic procedure

Diagnostic procedure

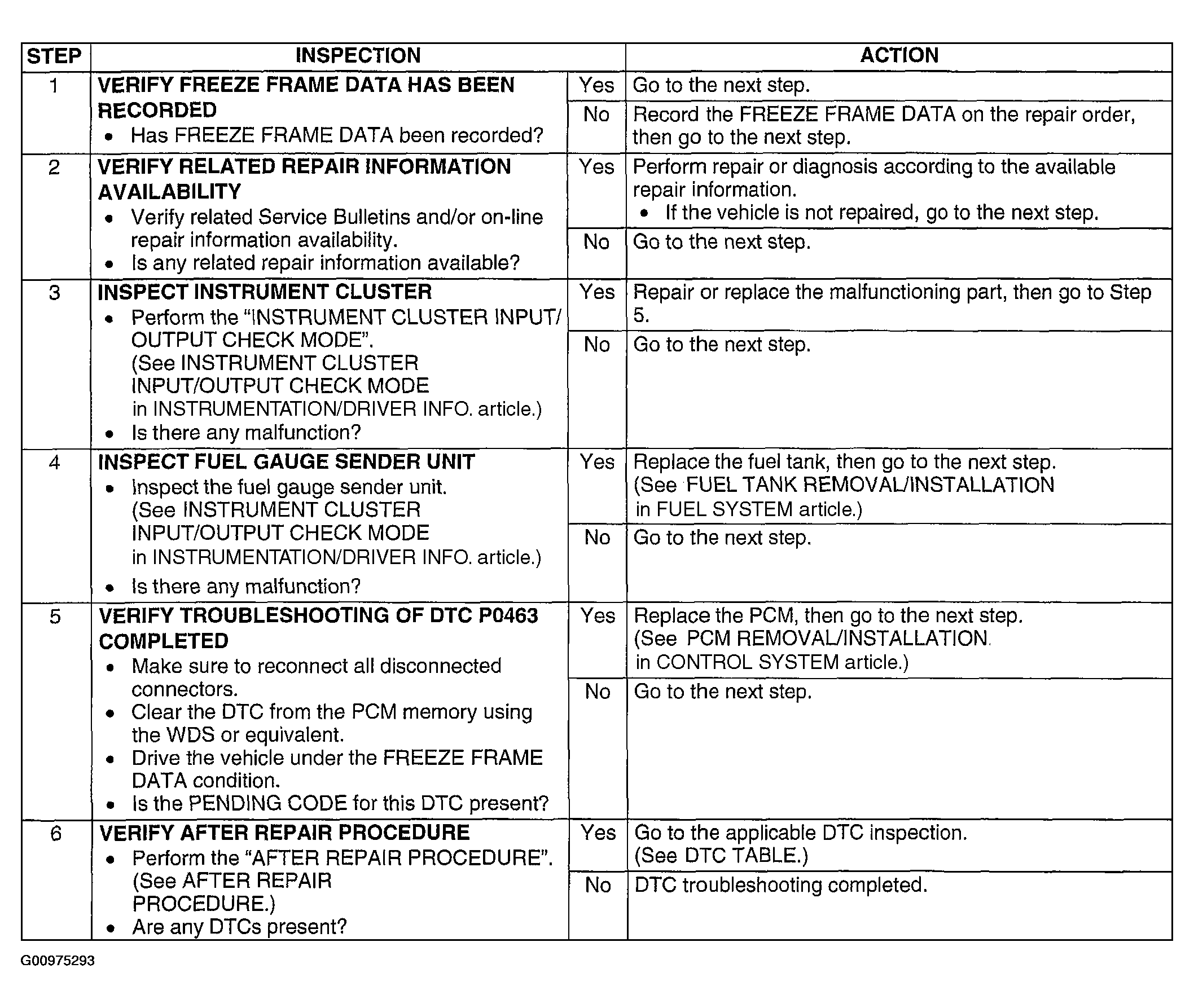

Fig 1: DTC P0463: Diagnostic Procedure Chart (Steps 1-6)
G00975293Courtesy of MAZDA MOTORS CORP.
