Home >> Mazda >> 2004 >> 3 i, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0461: Fuel Gauge Sender Unit Circuit Range/Performance Problem >> Diagnostic procedure

Diagnostic procedure

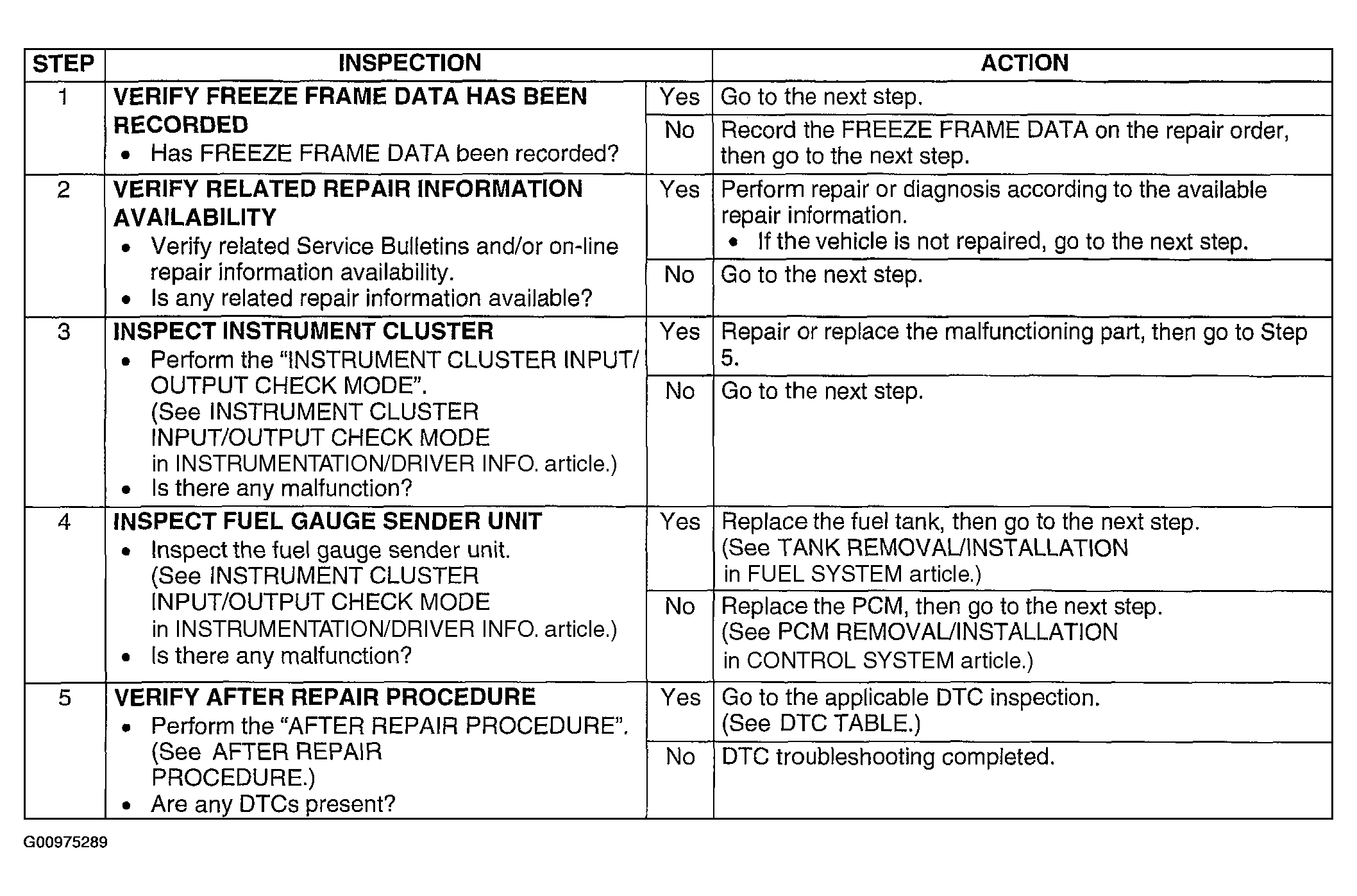

Fig 1: DTC P0461: Diagnostic Procedure Chart (Steps 1-5)
G00975289Courtesy of MAZDA MOTORS CORP.
