Diagnostic procedure

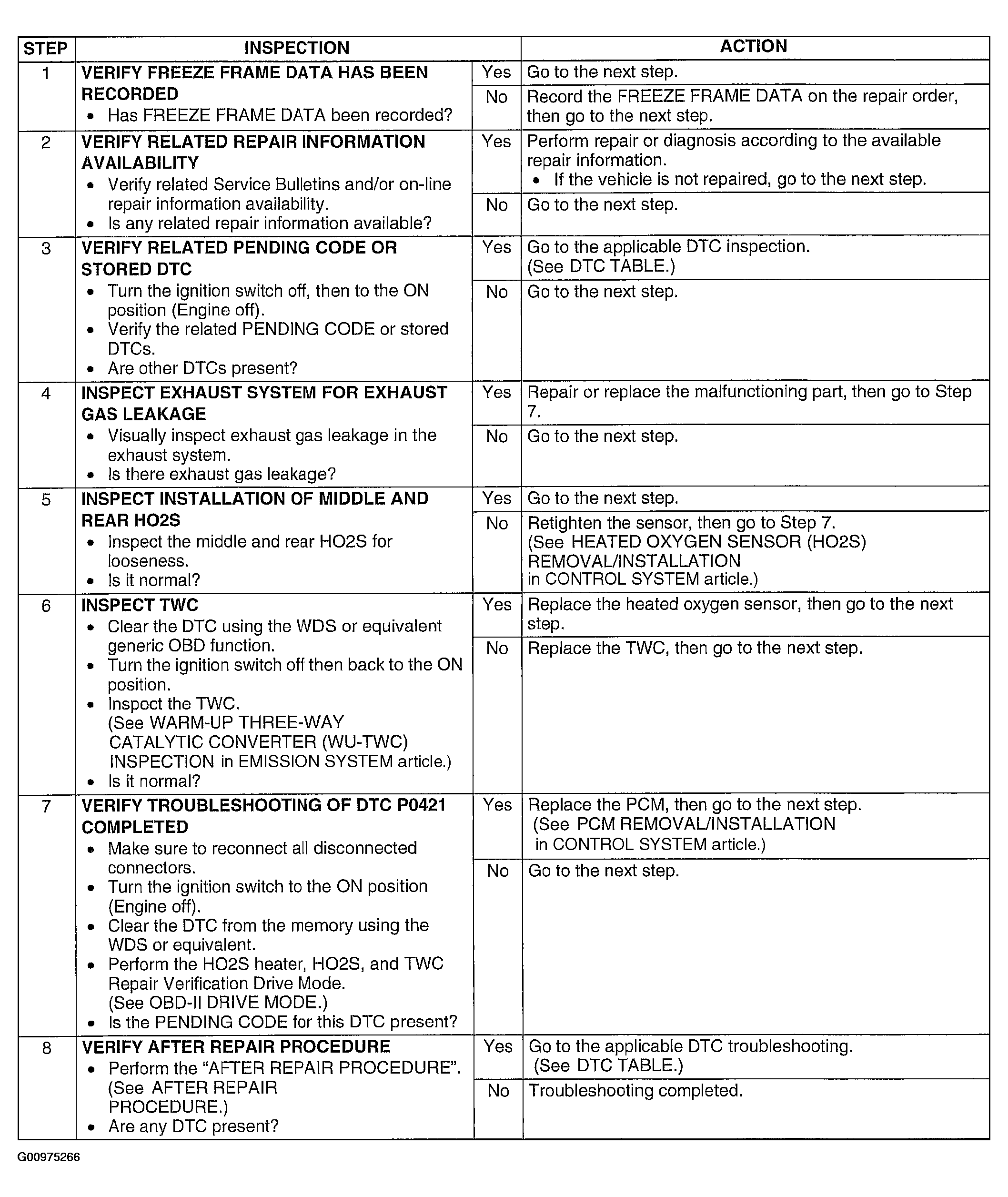

Fig 1: DTC P0421: Diagnostic Procedure Chart (Steps 1-8)
G00975266Courtesy of MAZDA MOTORS CORP.

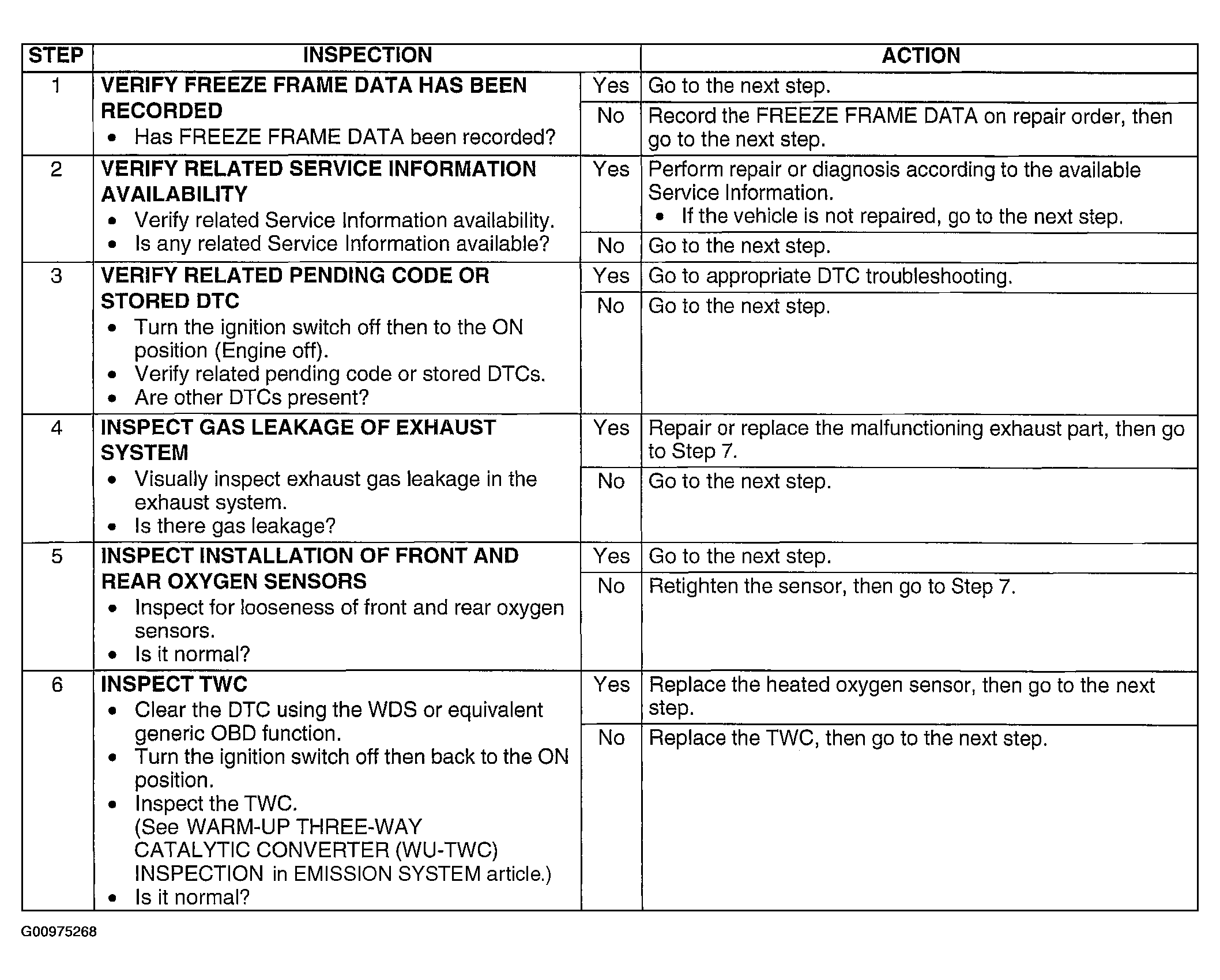

Fig 1: DTC P0421: Diagnostic Procedure Chart (Steps 1-6)
G00975268Courtesy of MAZDA MOTORS CORP.

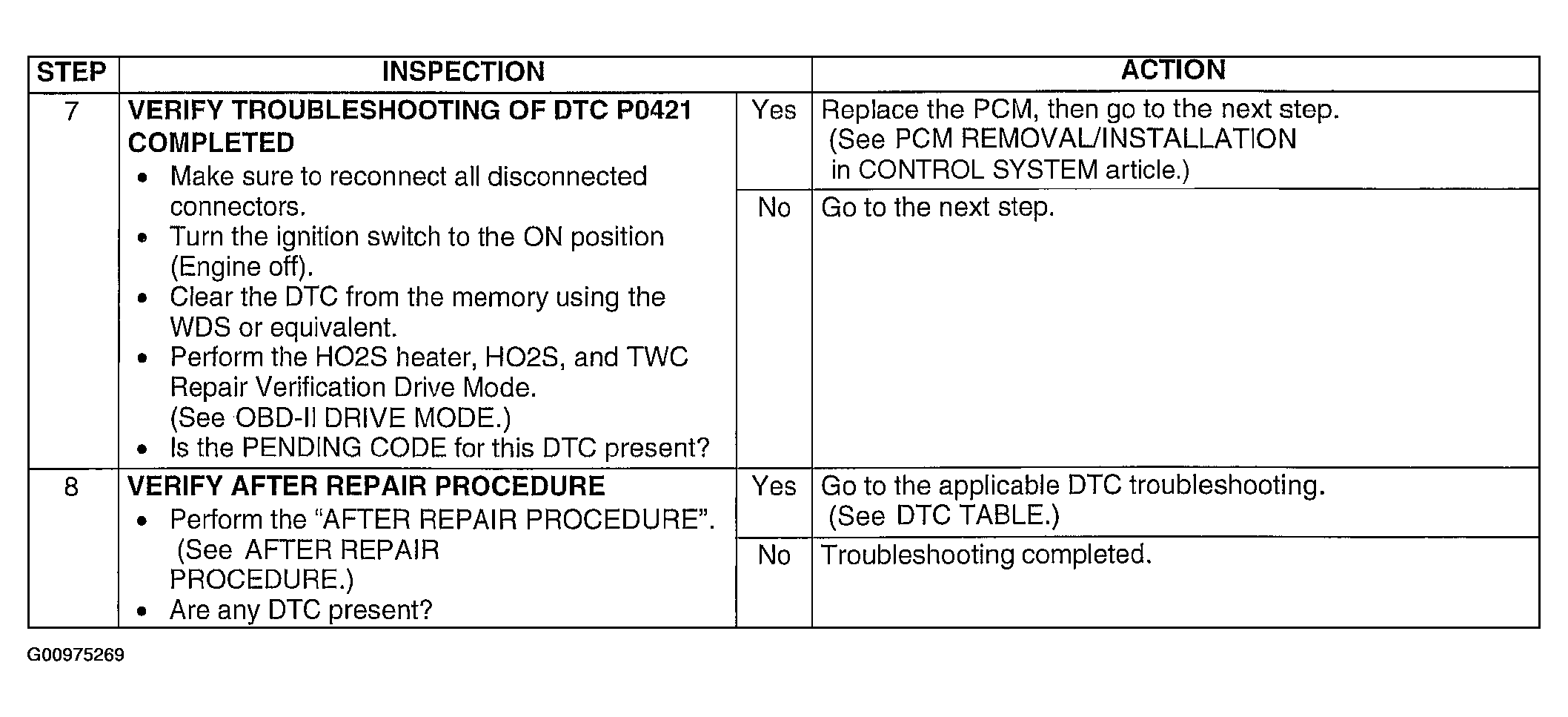

Fig 2: DTC P0421: Diagnostic Procedure Chart (Steps 7 & 8)
G00975269Courtesy of MAZDA MOTORS CORP.
