DTC P0403: EGR Valve (Stepper Motor) Circuit Problem
>>
Diagnostic procedure
Diagnostic procedure

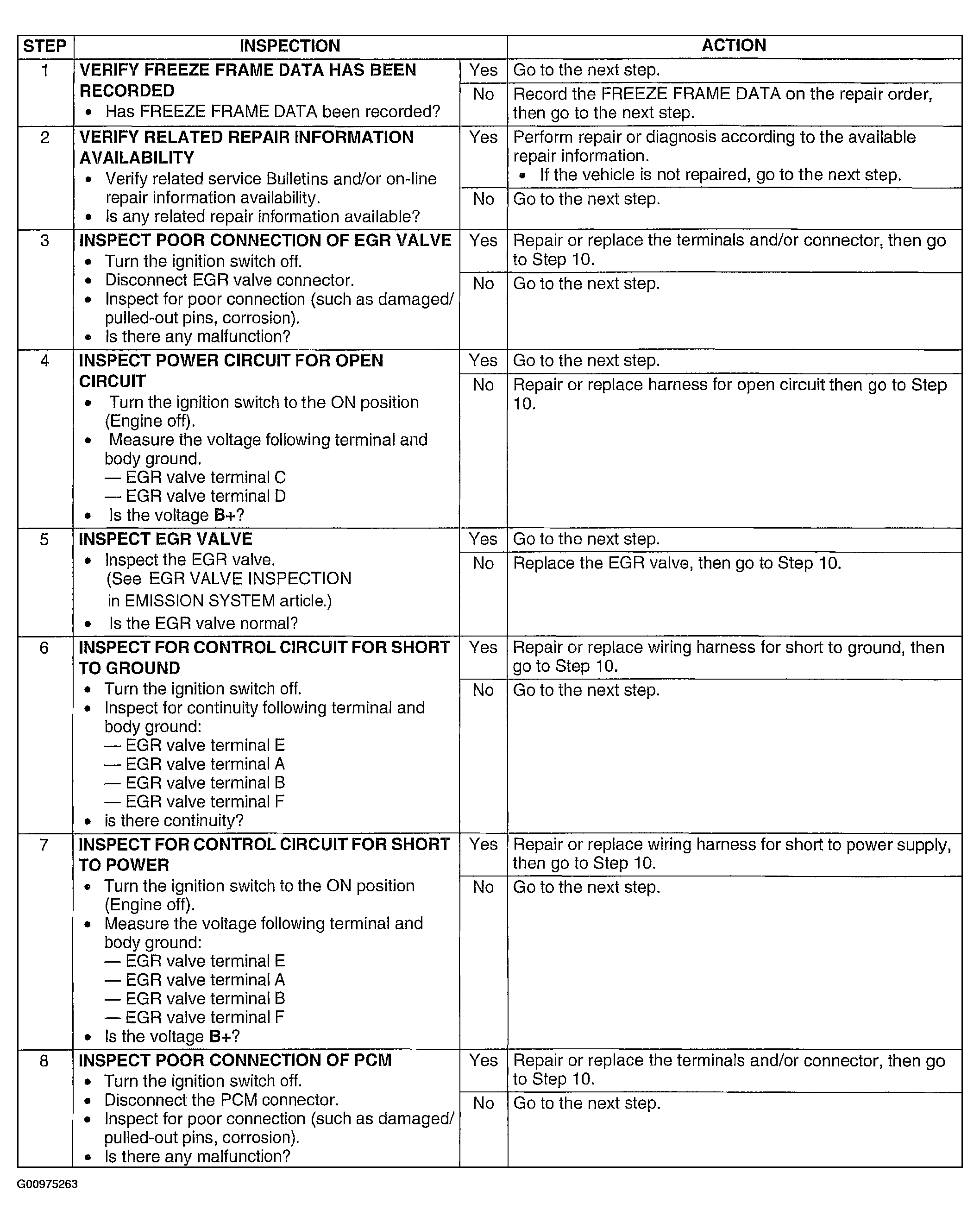

Fig 1: DTC P0403: Diagnostic Procedure Chart (Steps 1-8)
Courtesy of MAZDA MOTORS CORP.

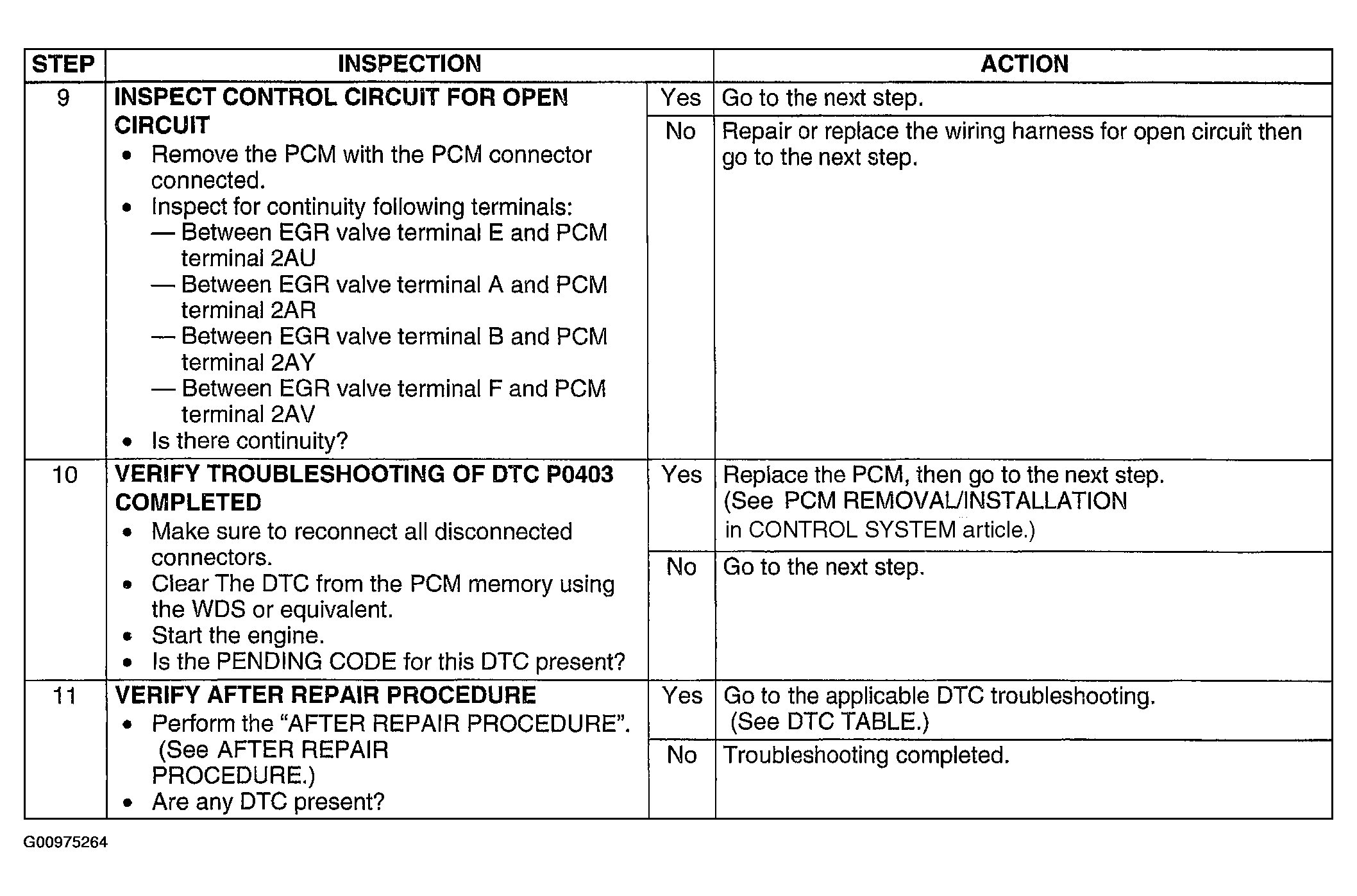

Fig 2: DTC P0403: Diagnostic Procedure Chart (Steps 9-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
