DTC P0300: Random Misfire Detected
>>
Diagnostic procedure
Diagnostic procedure

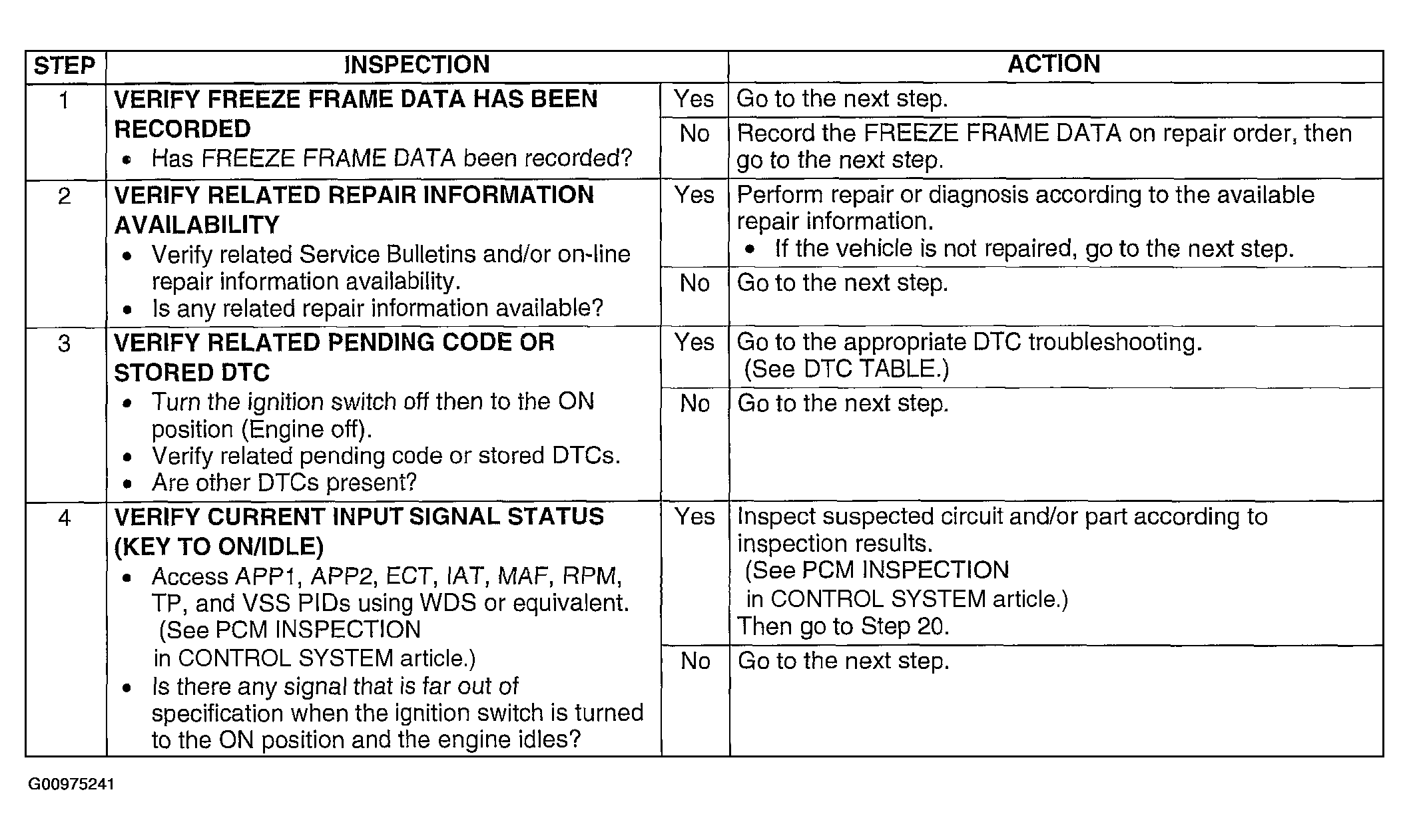

Fig 1: DTC P0300: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

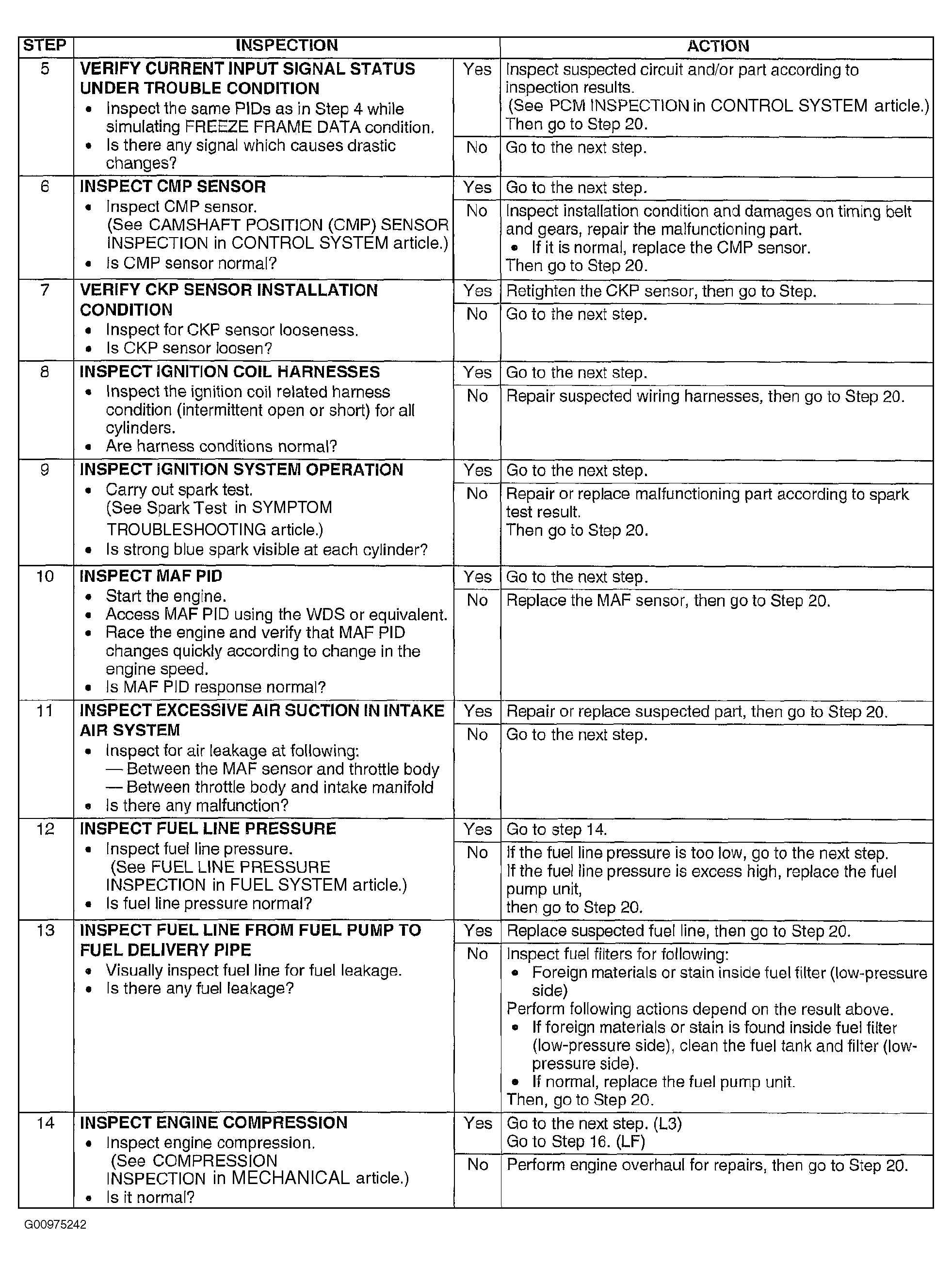

Fig 2: DTC P0300: Diagnostic Procedure Chart (Steps 5-14)
Courtesy of MAZDA MOTORS CORP.

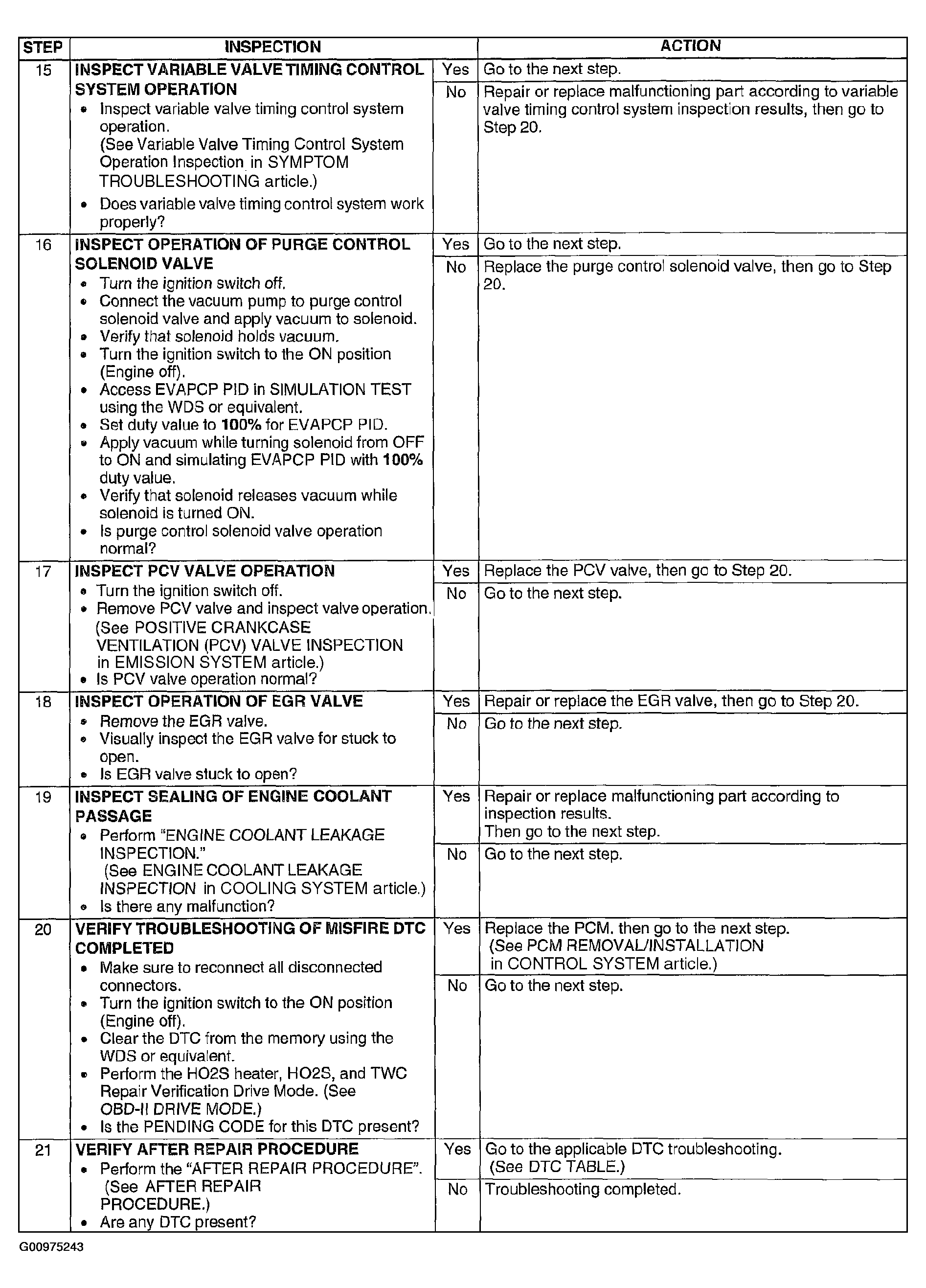

Fig 3: DTC P0300: Diagnostic Procedure Chart (Steps 15-21)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
