DTC P0145: Rear Ho2S Circuit Problem
>>
Diagnostic Procedure
Diagnostic Procedure

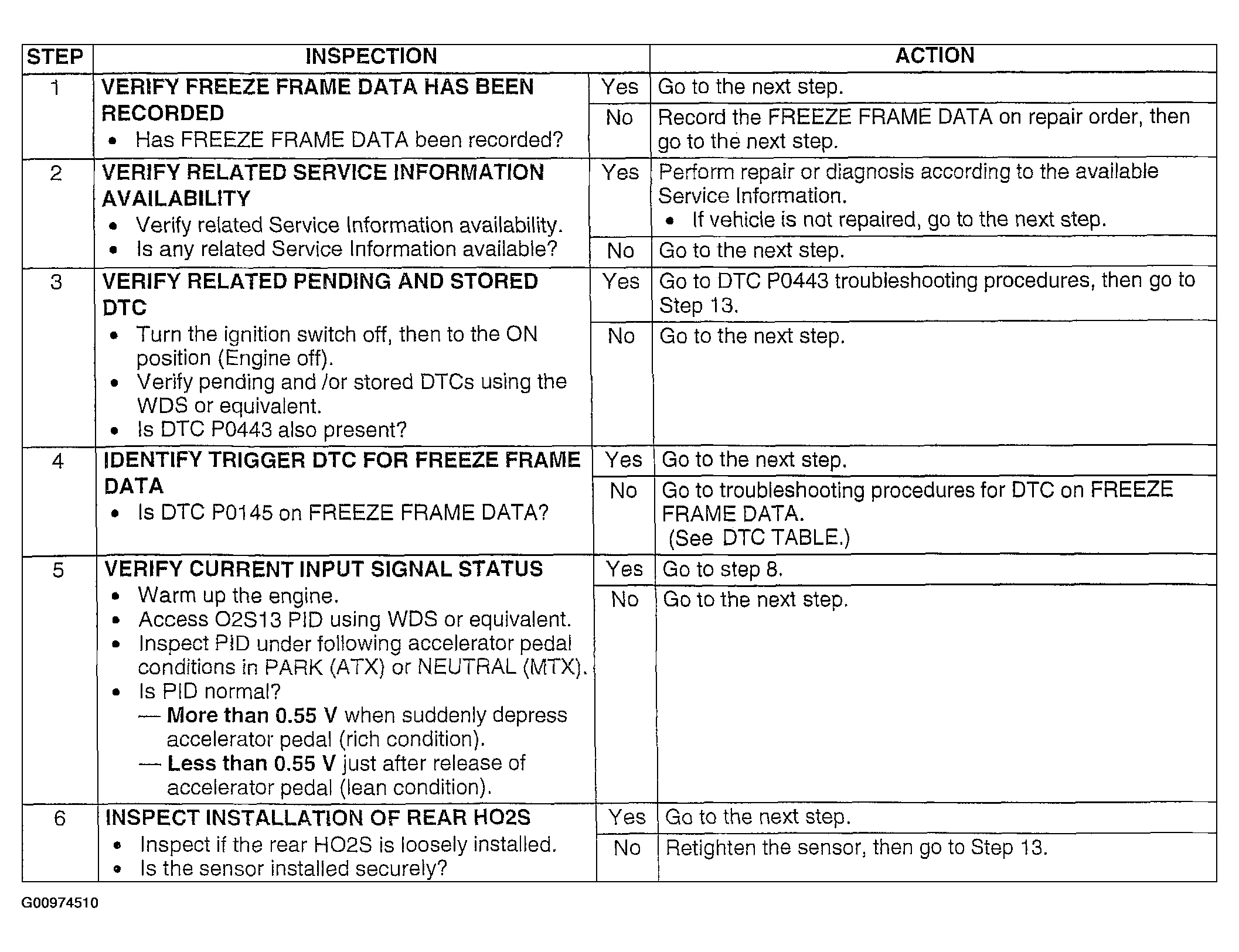

Fig 1: DTC P0145: Diagnostic Procedure Chart (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.
Fig 2: DTC P1045: Diagnostic Procedure Chart (Steps 7-14)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
