Diagnostic Procedure

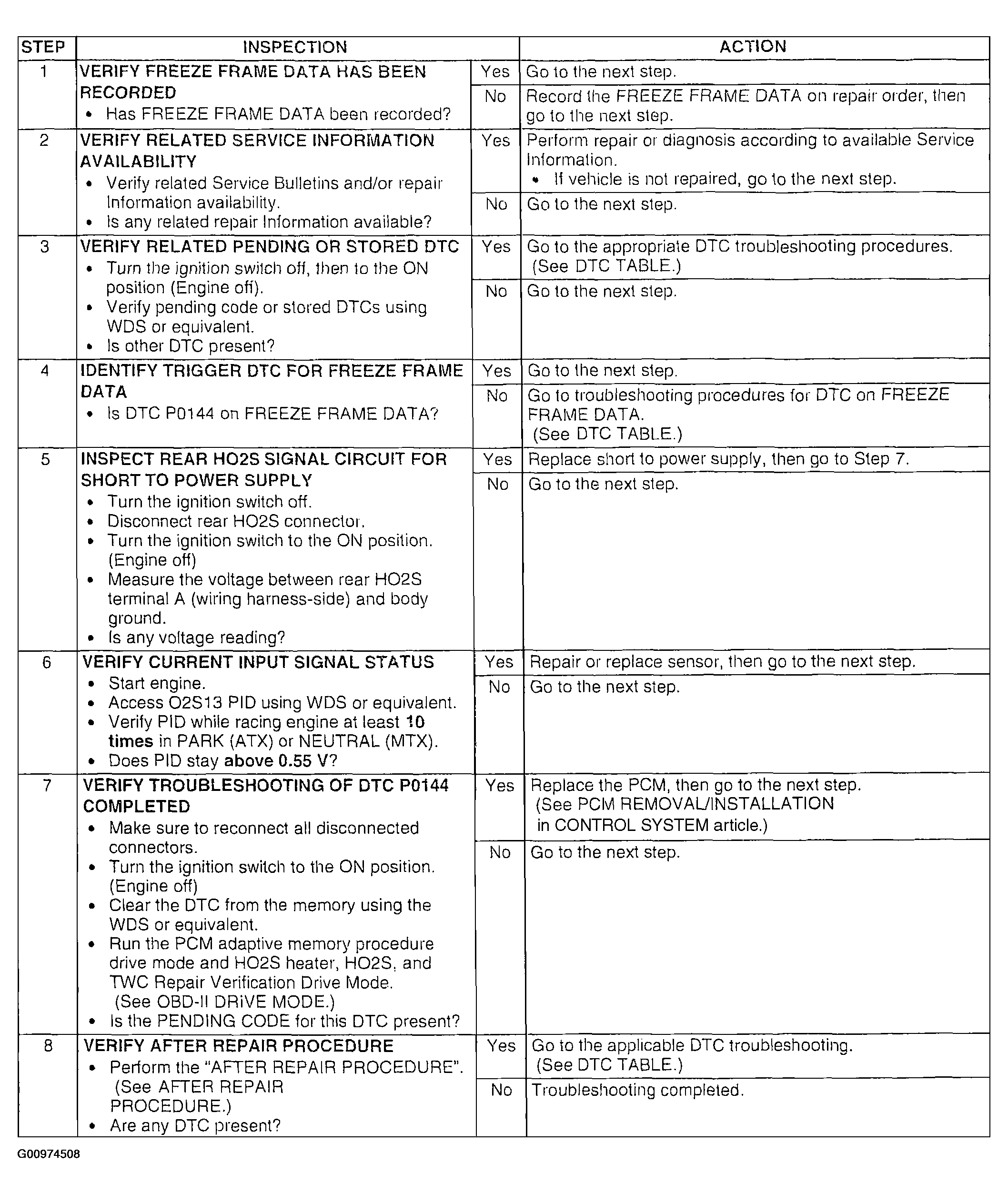

Fig 1: DTC P0144: Diagnostic Procedure Chart (Steps 1-8)
G00974508Courtesy of MAZDA MOTORS CORP.
