Home >> Mazda >> 2004 >> 3 i, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> Heated Oxygen Sensor (Ho2S) Removal/Installation >> California emission regulation applicable model

California emission regulation applicable model

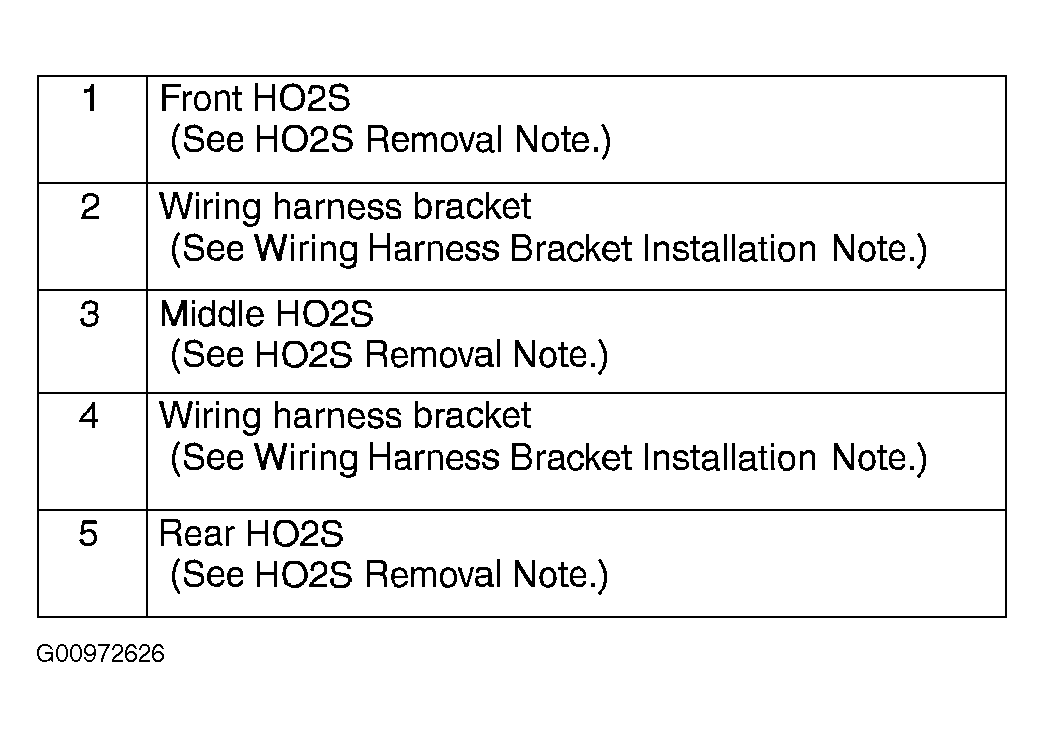

Fig 1: Heated Oxygen Sensor Removal/Installation Table-California Emission Regulation Applicable Model
G00972626Courtesy of MAZDA MOTORS CORP.

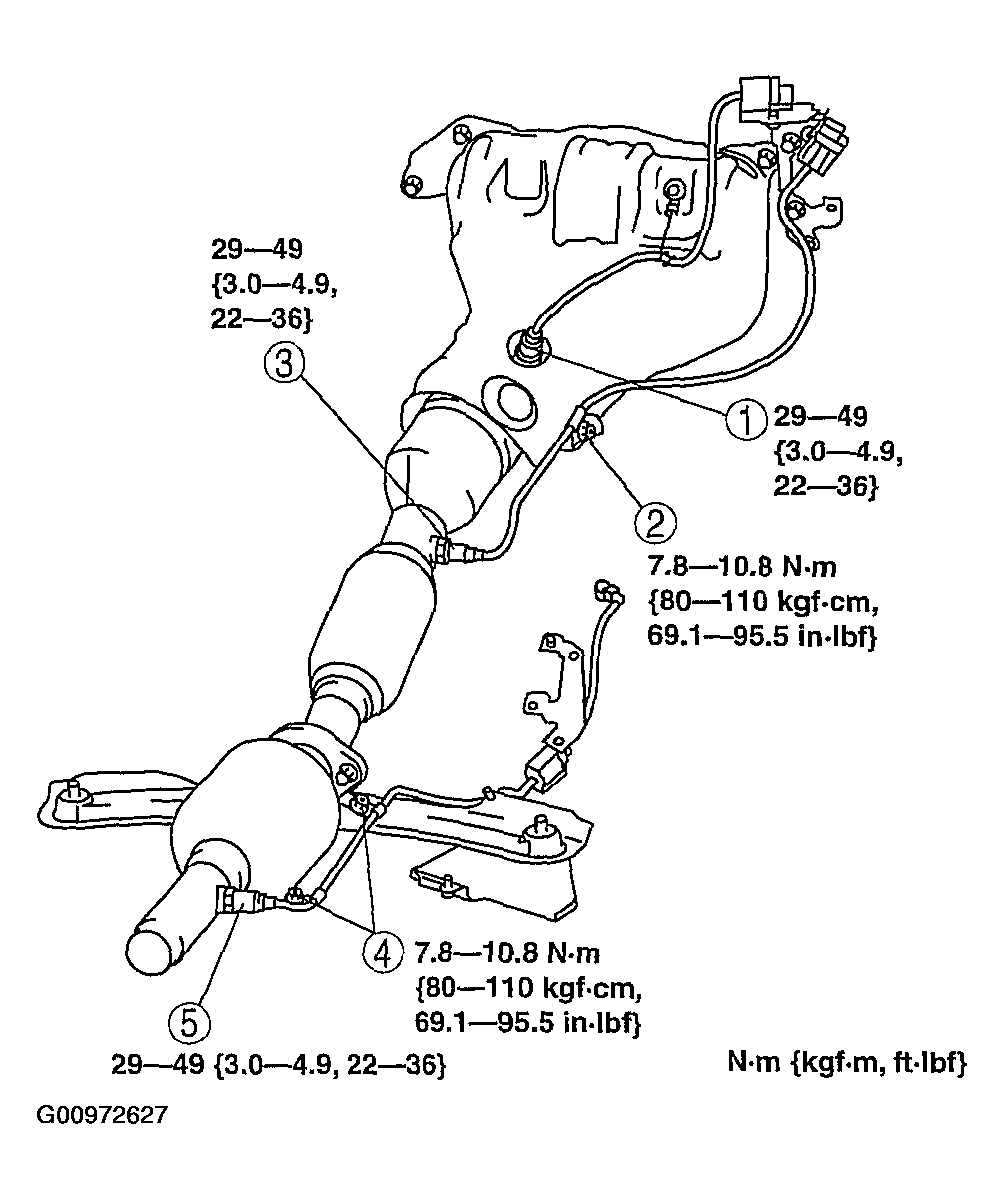

Fig 2: Heated Oxygen Sensor-California Emission Regulation Applicable Model With Torque Specifications
G00972627Courtesy of MAZDA MOTORS CORP.
