Symptom Troubleshooting Chart [Keyless Entry System]

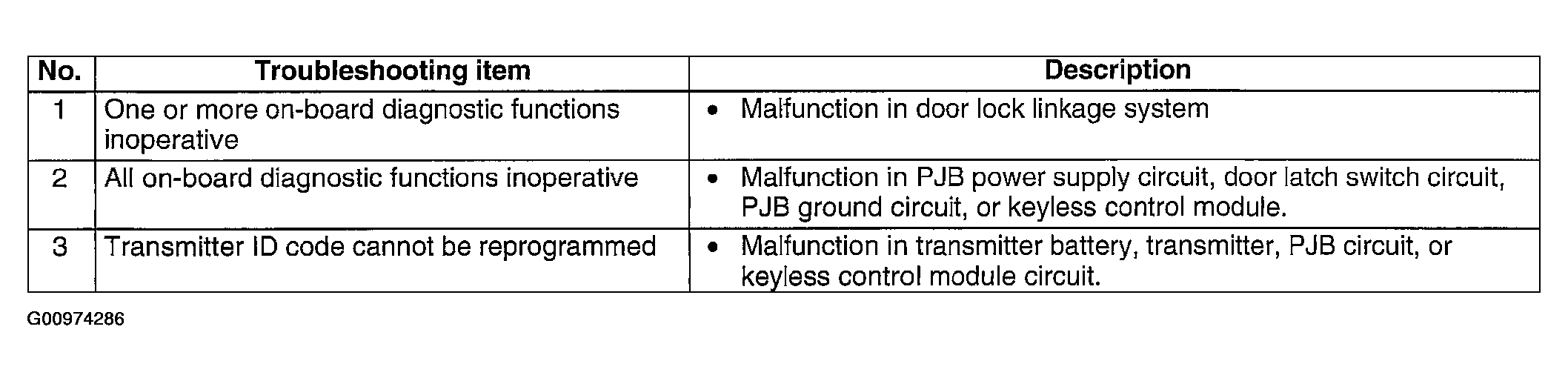

Fig 1: Symptom Troubleshooting - Keyless Entry System
G00974286Courtesy of MAZDA MOTORS CORP.
TROUBLESHOOTING CODES

TROUBLESHOOTING CODES DESCRIPTION
NO. 1  ONE OR MORE ON-BOARD DIAGNOSTIC FUNCTIONS INOPERATIVE
NO. 2  ALL ON-BOARD DIAGNOSTIC FUNCTIONS INOPERATIVE
NO. 3  TRANSMITTER ID CODE CANNOT BE REPROGRAMMED
