Rear Window Defrost Switch Connector End View (C241)

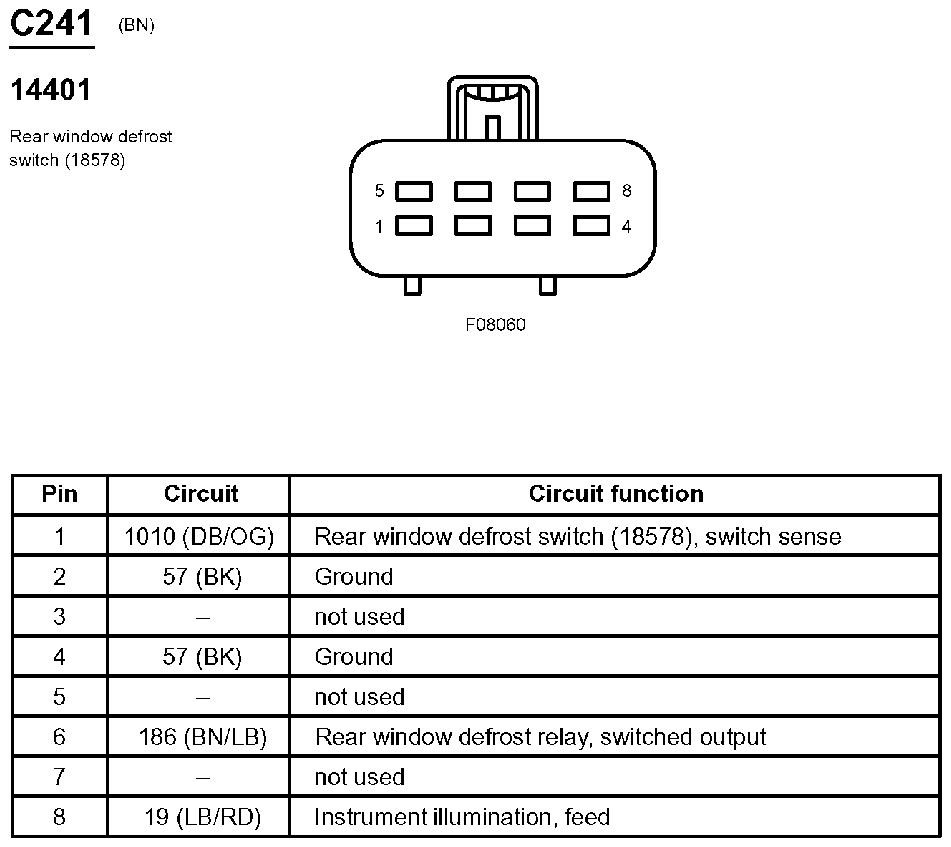

Fig 1: Rear Window Defrost Switch Connector End View (C241)

G07831472

Courtesy of FORD MOTOR CO.
