Passenger Air Bag Module Connector End View (C256)

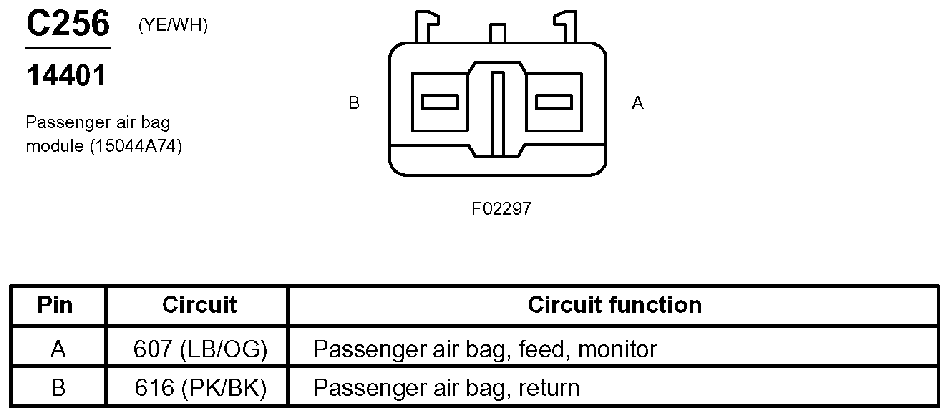

Fig 1: Passenger Air Bag Module Connector End View (C256)

G07831476

Courtesy of FORD MOTOR CO.
