Power Steering System: Fill

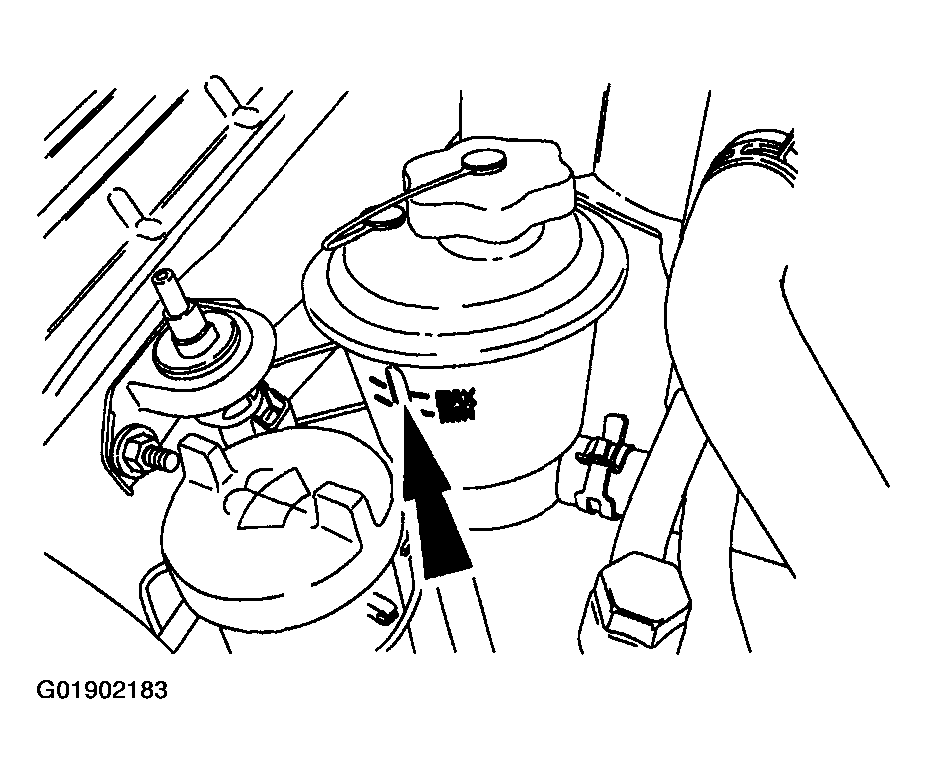

Fig 1: Filling Reservoir

Courtesy of MAZDA MOTORS CORP.

WARNING:

Do not mix oil types. Any mixture or any unapproved oil can lead to seal deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a loss of power steering assist.

Fill the reservoir.
1. Use MERCON(R) Automatic Transaxle Fluid (ATF).

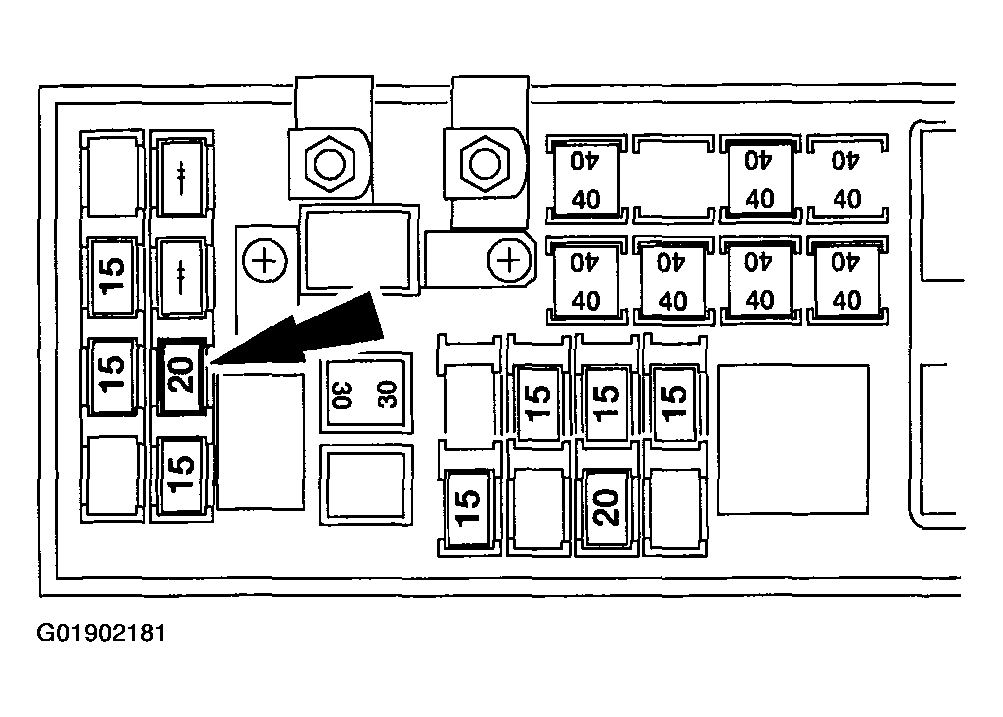

  Fig 2: Locating Fuel Fuse
  Courtesy of MAZDA MOTORS CORP.
Remove the FUEL fuse to disable the vehicle.
Raise the front wheels off the floor. Refer to WHEEL AND TIRE .

Fig 3: Turning Steering Wheel From Stop-To-Stop
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.
CAUTION:
- Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump can occur.
Turn the steering wheel from stop-to-stop while cranking the engine.
Lower the vehicle.

Fig 4: Filling Reservoir
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not overfill the reservoir.
Fill the reservoir.
1. Use MERCON(R) ATF.
Install the fuel fuse.
Clear the diagnostic trouble codes (DTCs). Refer to CLEARING CODES .
