Rear Safety Belt Retractor: Installation

Both Rear Safety Belt Retractors

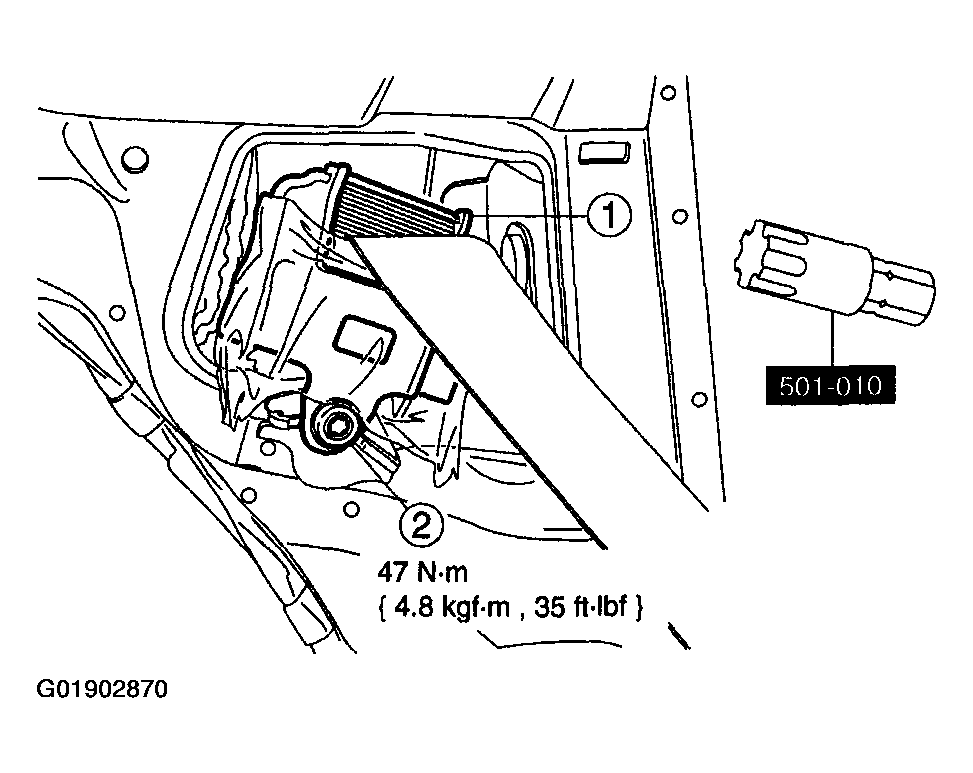

Fig 1: Installing Rear Safety Belt Retractor

Courtesy of MAZDA MOTORS CORP.

1. Install the rear safety belt retractor.
   1. Position the rear safety belt retractor to the C-pillar.
   2. Using the special tool, install the bolt.

   LH Side Only

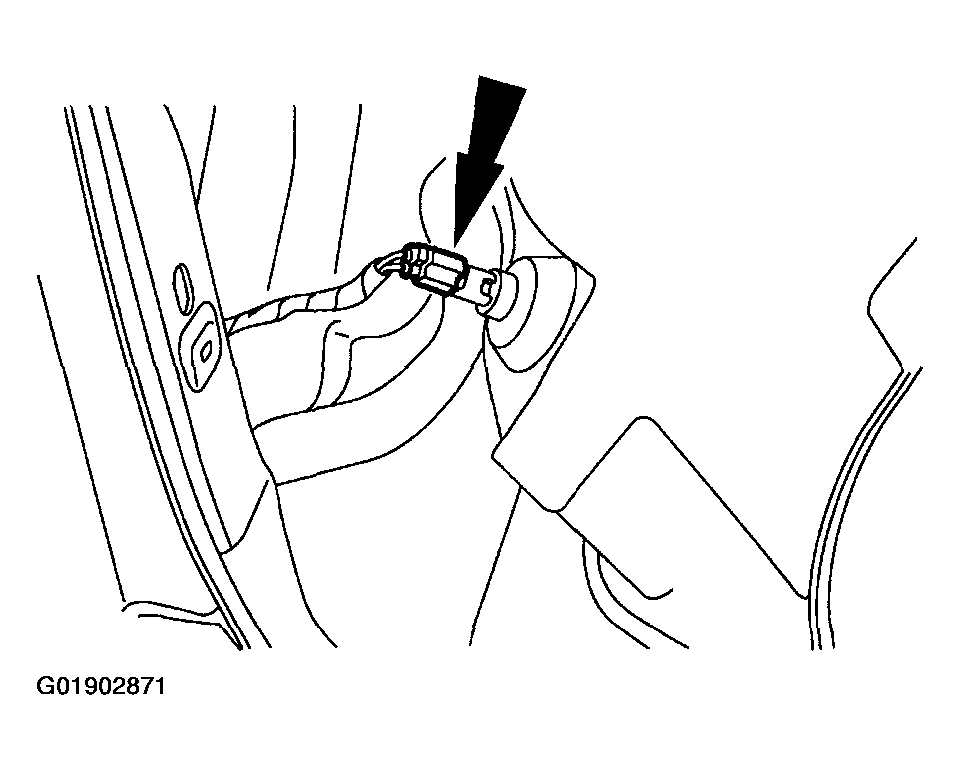

   Fig 2: Connecting Power Point Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
2. Position the rear quarter trim panel.
   • If equipped, connect the power point electrical connector.

   Both Retractors

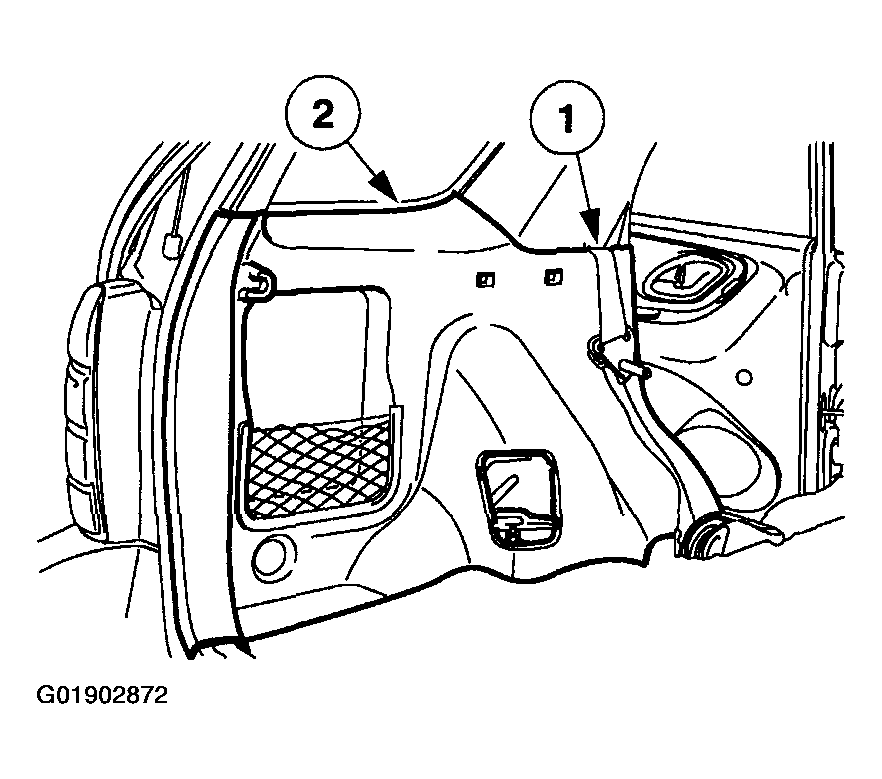

   Fig 3: Installing Quarter Trim Panel

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • Make sure the safety belt webbing is not twisted prior to installation.
3. Install the quarter trim panel.
   1. Position the quarter trim panel and feed the safety belt webbing through the opening.
   2. Align the quarter trim panel and push in, fastening the retainers.

      All Vehicles

      Fig 4: Installing Cargo Cover Hold Down

      Courtesy of MAZDA MOTORS CORP.
   3. Install the cargo cover hold down.
      Fig 5: Installing Cargo Cover

      Courtesy of MAZDA MOTORS CORP.
   4. Install the cargo cover.

      Both Retractors

      Fig 6: Installing Rear Hatch Scuff Plate

      Courtesy of MAZDA MOTORS CORP.
   5. Install the rear hatch scuff plate.

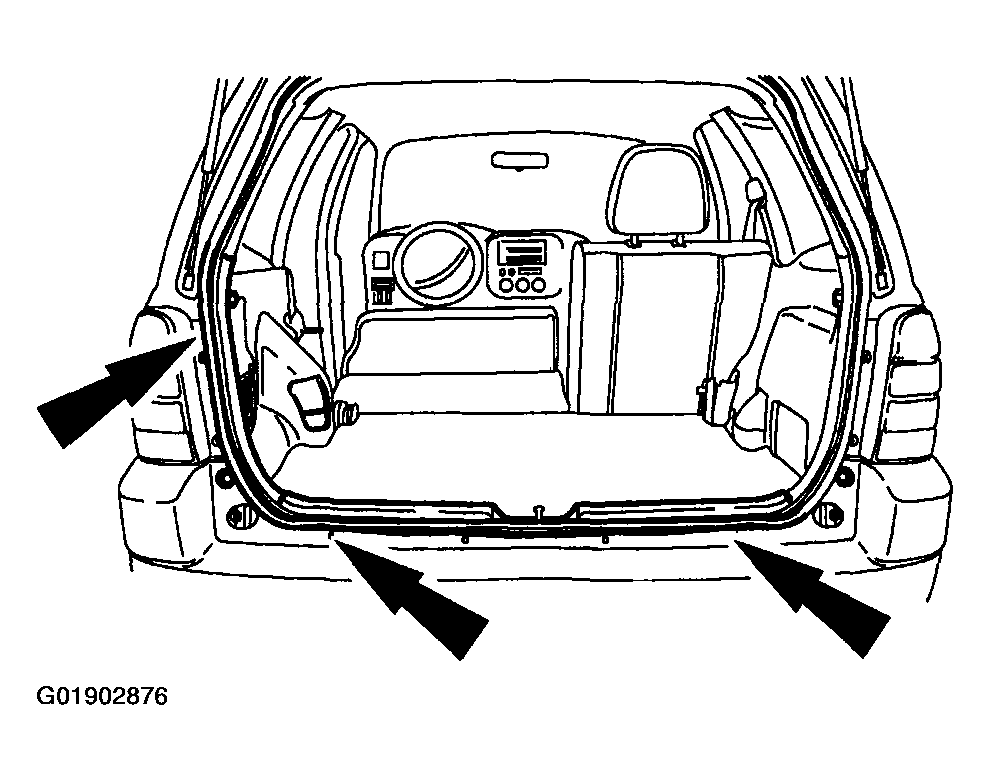

      Fig 7: Installing Rear Hatch Weatherstripping

      Courtesy of MAZDA MOTORS CORP.
   6. Install the rear hatch weatherstripping.
      Fig 8: Installing Spacer Onto Rear Safety Belt Guide Bolt

      Courtesy of MAZDA MOTORS CORP.
   7. Install the spacer onto the rear safety belt guide bolt.
      Fig 9: Installing Rear Safety Belt Guide

      Courtesy of MAZDA MOTORS CORP.
      NOTE:

      • Make sure the safety belt webbing is not twisted prior to installation.
   8. Install the rear safety belt guide.
      1. Position the safety belt guide.
      2. Using the special tool, install the bolt.
      Fig 10: Installing Rear Safety Belt Guide Cover

      Courtesy of MAZDA MOTORS CORP.
      NOTE:

      • If the safety belt guide cover is damaged or if it does not remain in position, install a new cover.
   9. Install the rear safety belt guide cover.

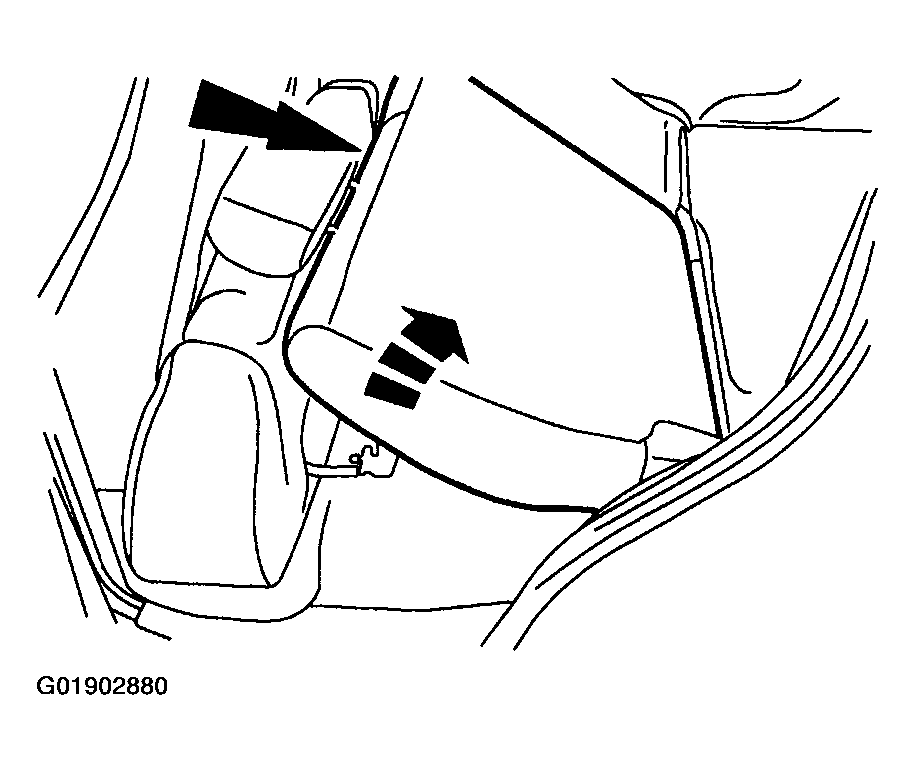

      Fig 11: Raising Second Row Seat Backrest

      Courtesy of MAZDA MOTORS CORP.
   10. Raise the second row seat backrest.

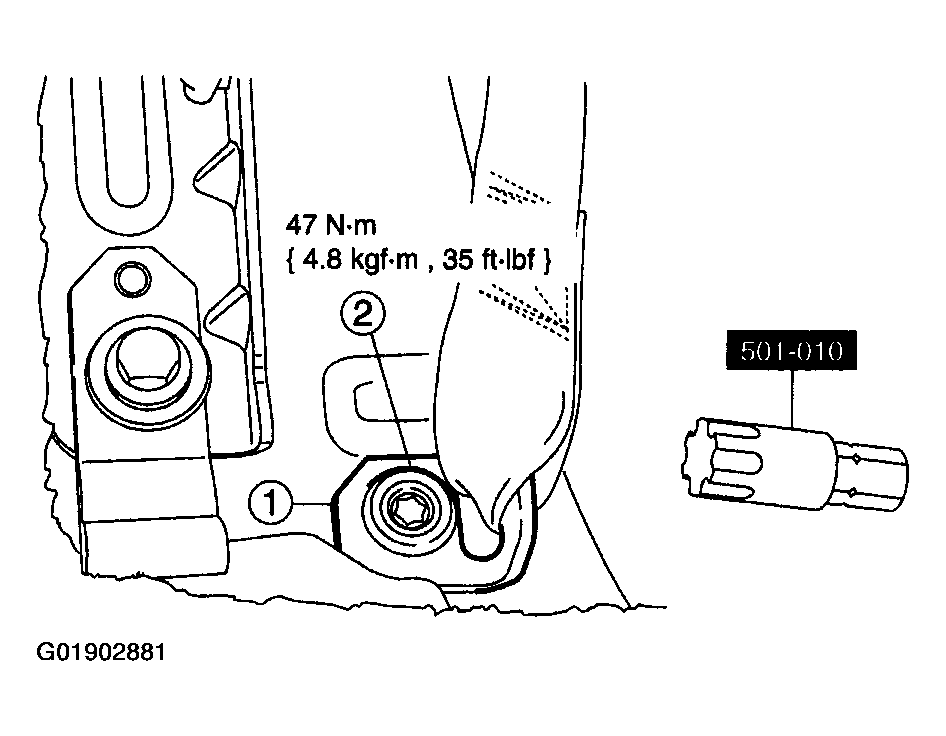

       Fig 12: Installing Safety Belt Anchor

       Courtesy of MAZDA MOTORS CORP.
       NOTE:

       • Make sure the safety belt webbing is not twisted prior to installation.
   11. Install the safety belt anchor.
       1. Position the safety belt anchor.
       2. Using the special tool, install the bolt.

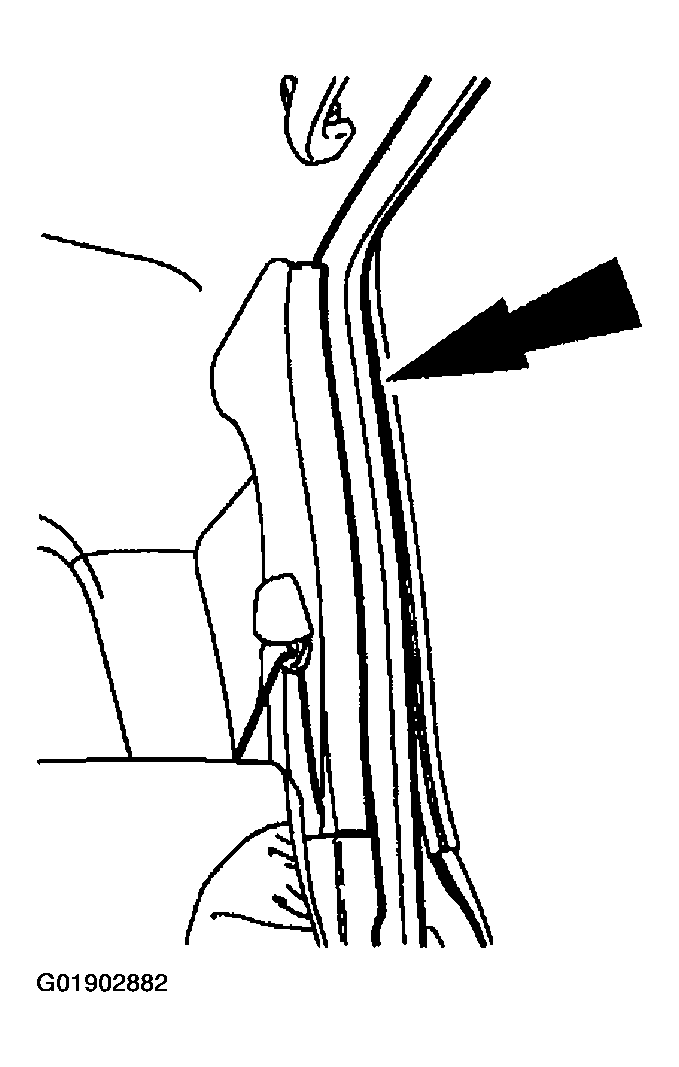

          Fig 13: Installing C-Pillar Weatherstripping

          Courtesy of MAZDA MOTORS CORP.
   12. Install the C-pillar weatherstripping.

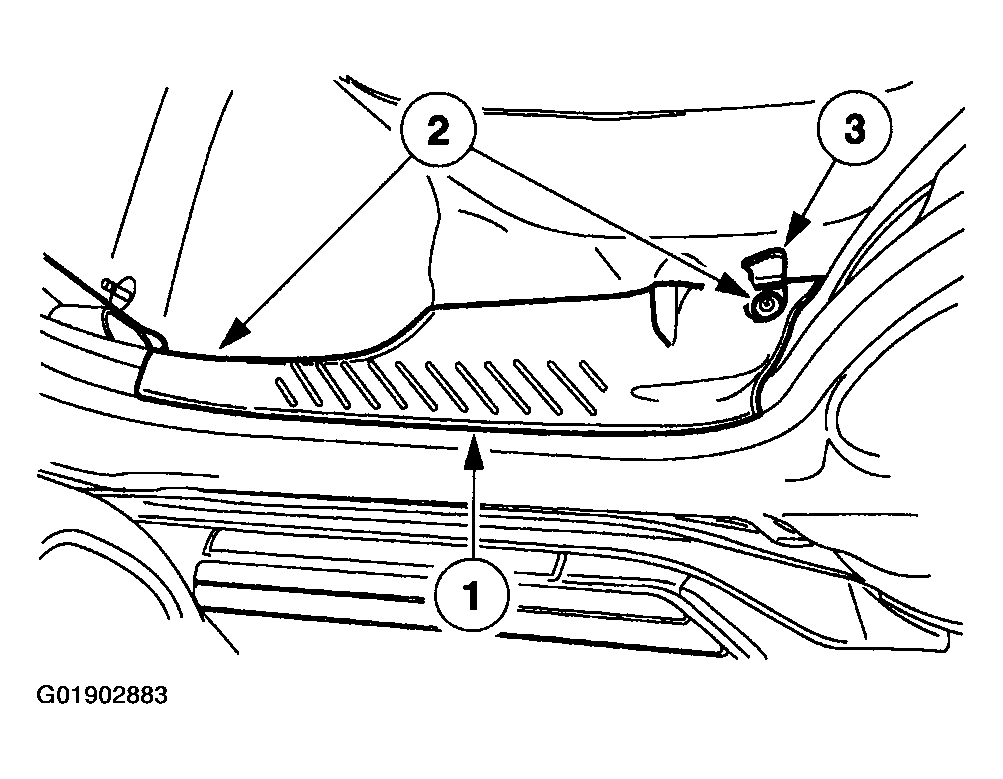

       Fig 14: Installing Rear Door Scuff Plate

       Courtesy of MAZDA MOTORS CORP.
   13. Install the rear door scuff plate.
       1. Position the rear door scuff plate.
       2. Install the two pin-type retainers (one shown).
       3. Close the cover.

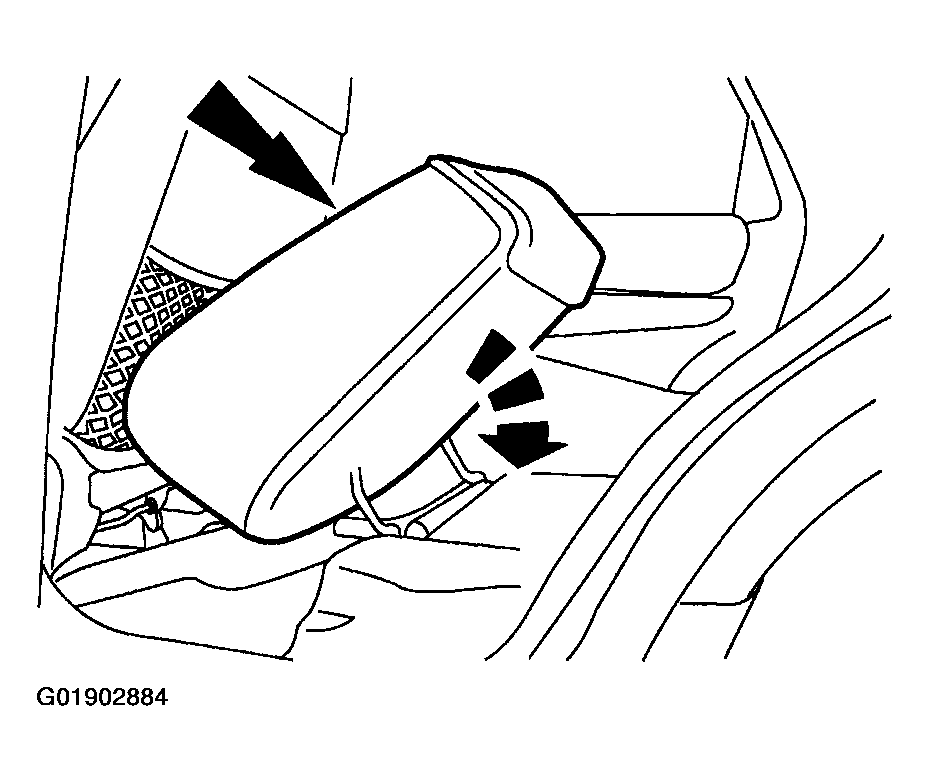

          Fig 15: Positioning Seat Cushion Down

          Courtesy of MAZDA MOTORS CORP.
   14. Position the seat cushion down.

       Vehicles With A Rear Power Point

   15. Connect the battery ground cable. .

       All Vehicles

   16. Check the active restraint system for correct operation.
   1. Make sure that after the rear safety belt retractor is installed, the retractor is not in the Automatic Locking Retractor (ALR) mode.
   2. Ensure the new retractor operates correctly.
