Removal and Installation

Remove the wheel and tire. Refer to WHEEL AND TIRE .

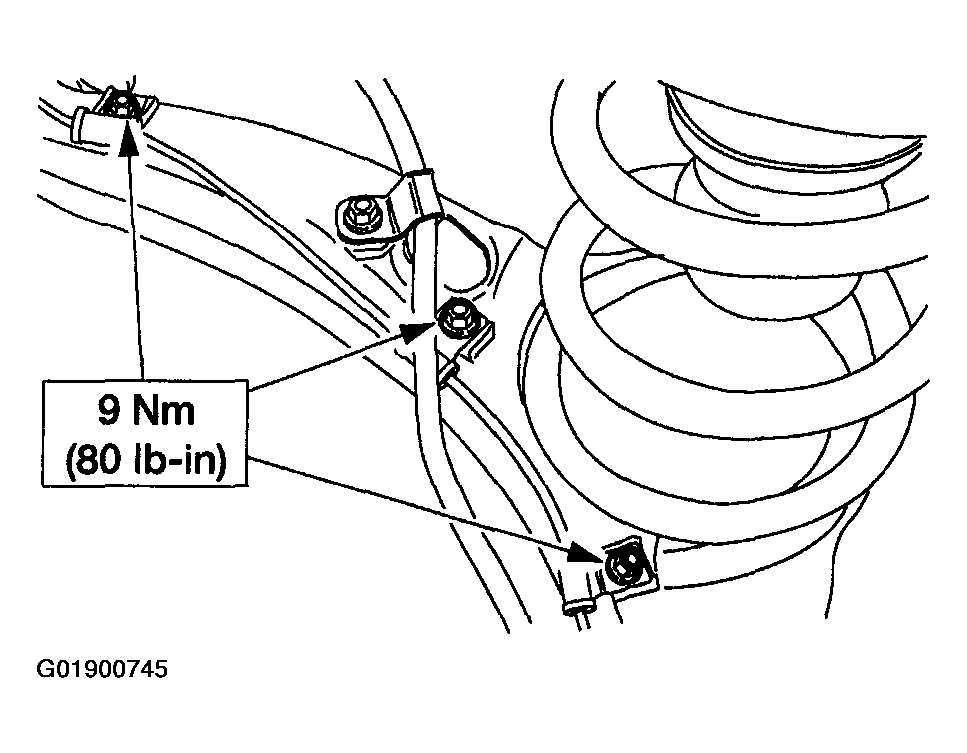

Fig 1: Detach Grommet From Body And Pull Connector Through Hole - Rear Sensor
Courtesy of MAZDA MOTORS CORP.
Detach the grommet from the body and pull the connector through the hole.

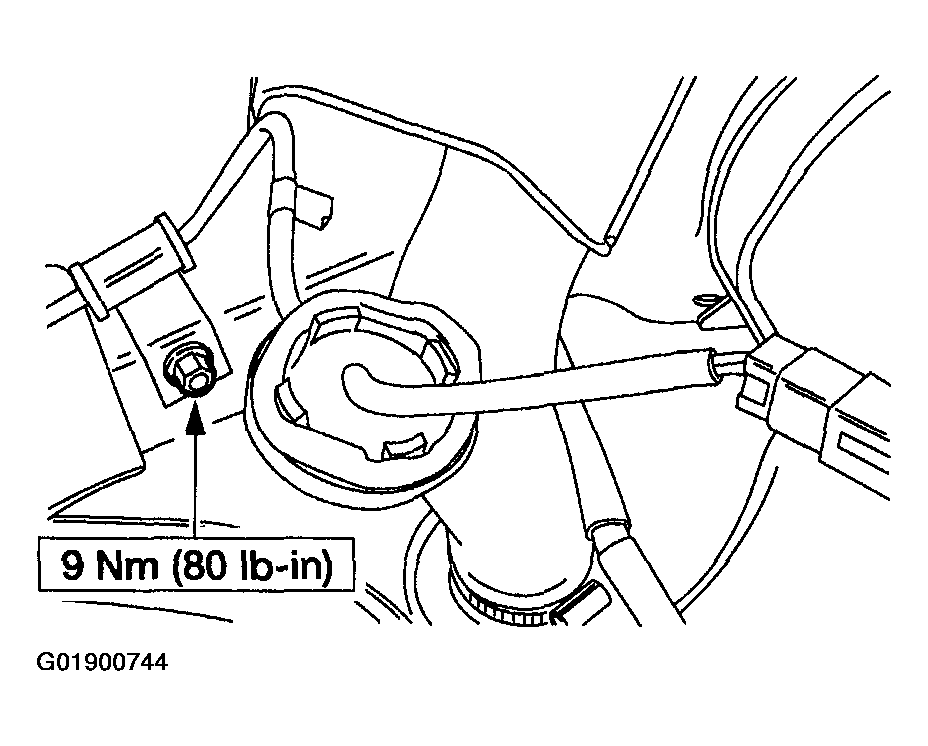

Fig 2: Disconnecting Sensor Wiring - Rear Sensor
Courtesy of MAZDA MOTORS CORP.
Disconnect the sensor wiring.

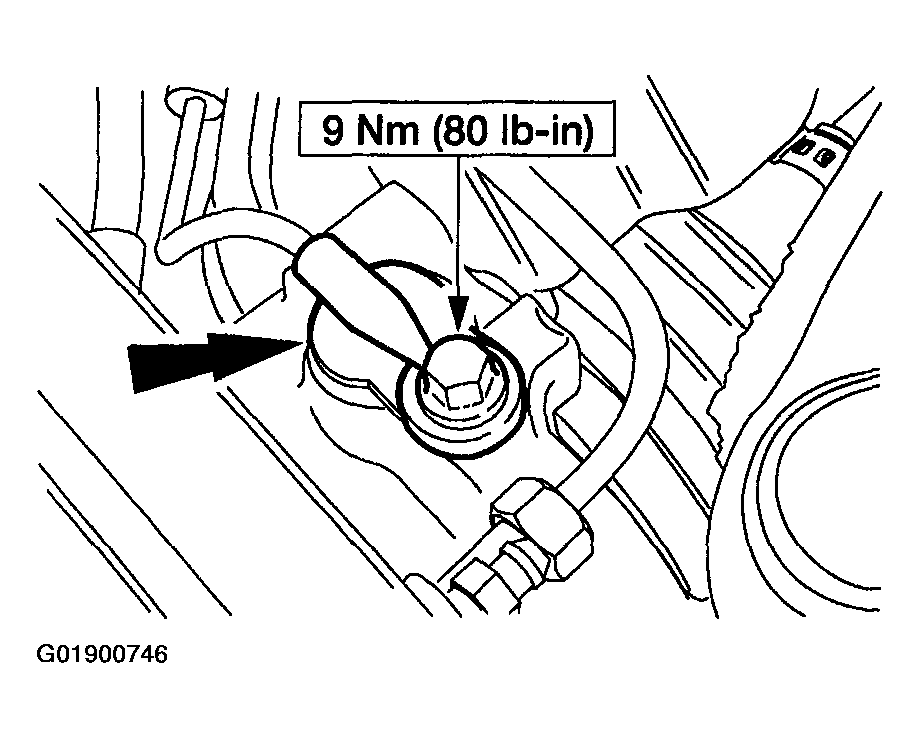

Fig 3: Detaching Bolt - Rear Sensor
Courtesy of MAZDA MOTORS CORP.
Detach the bolt.

Fig 4: Removing Bolts - Rear Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

Fig 5: Removing Bolt And Sensor
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Clean off any dirt that may have collected around the sensor before removal.
Remove the bolt and the sensor.
NOTE:
- Thoroughly clean the mounting surface.
To install, reverse the removal procedure.
