Hood Latch: Removal

Fig 1: Identifying Hood Latch
G01903951Courtesy of MAZDA MOTORS CORP.
  1. Remove the hood latch nut.
    NOTE:
    • Mark the hood latch position prior to removal of the bolts.
    Fig 2: Removing Hood Latch Bolts
    G01903952Courtesy of MAZDA MOTORS CORP.
  2. Remove the hood latch bolts.

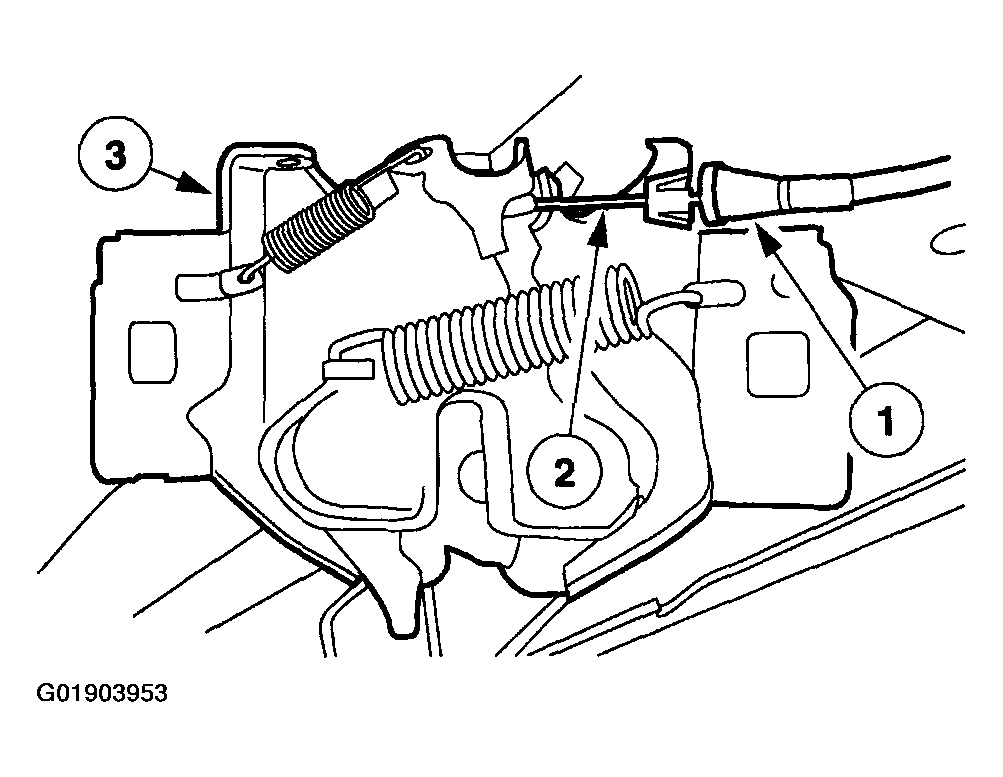

    Fig 3: Removing Hood Latch
    G01903953Courtesy of MAZDA MOTORS CORP.
  3. Remove the hood latch.
    1. Release the cable conduit.
    2. Disconnect the cable.
    3. Remove the hood latch.
