Modular Audio - Upper Module Removal and Installation: Notes

  1. Disconnect the battery cables. For additional information, refer to BATTERY DISCONNECT .
  2. Remove the audio unit. For additional information, refer to AUDIO UNIT
  3. Remove in the order indicated in the figure.

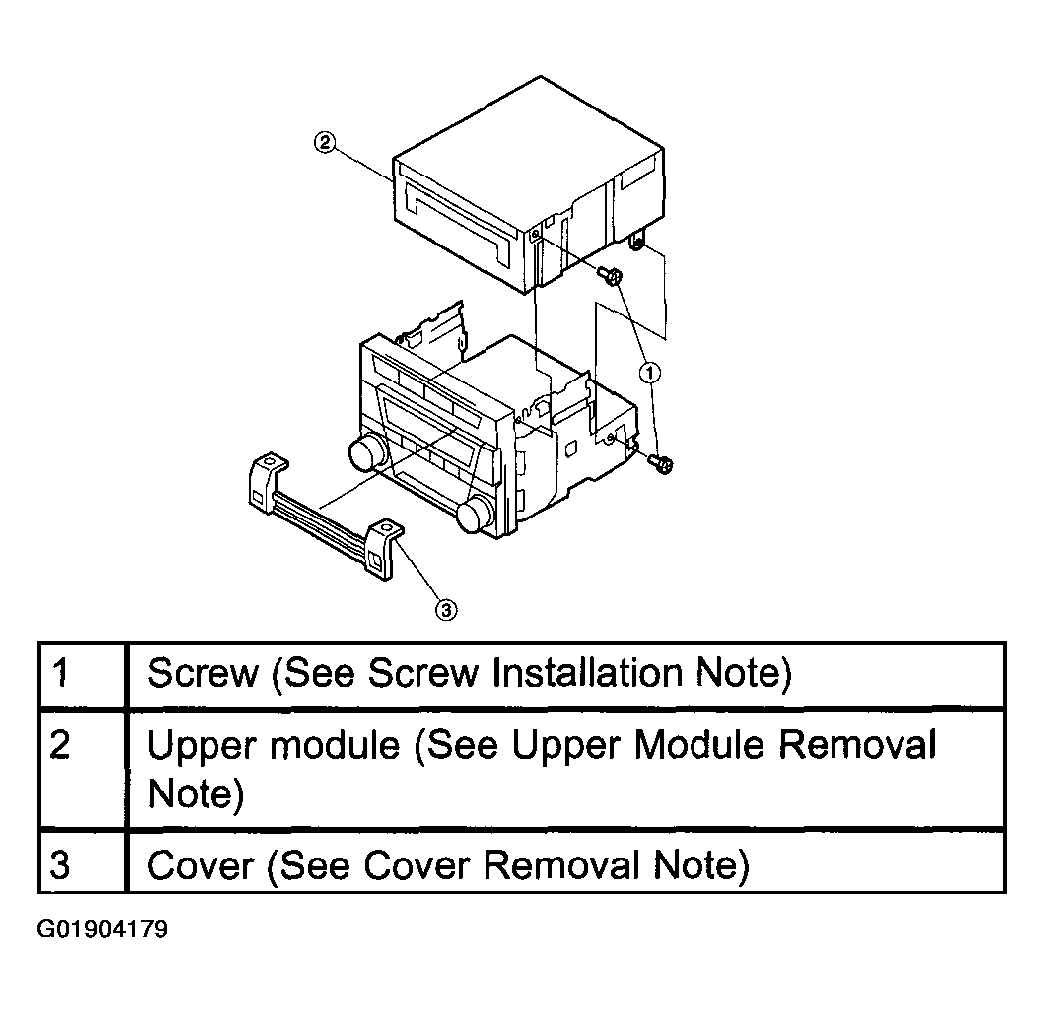

    Fig 1: Modular Audio Removing Procedure And Removing Order Chart (Upper Module)
    G01904179Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure
