Master Window/Door Lock/Unlock Switch Connector End View (C508)

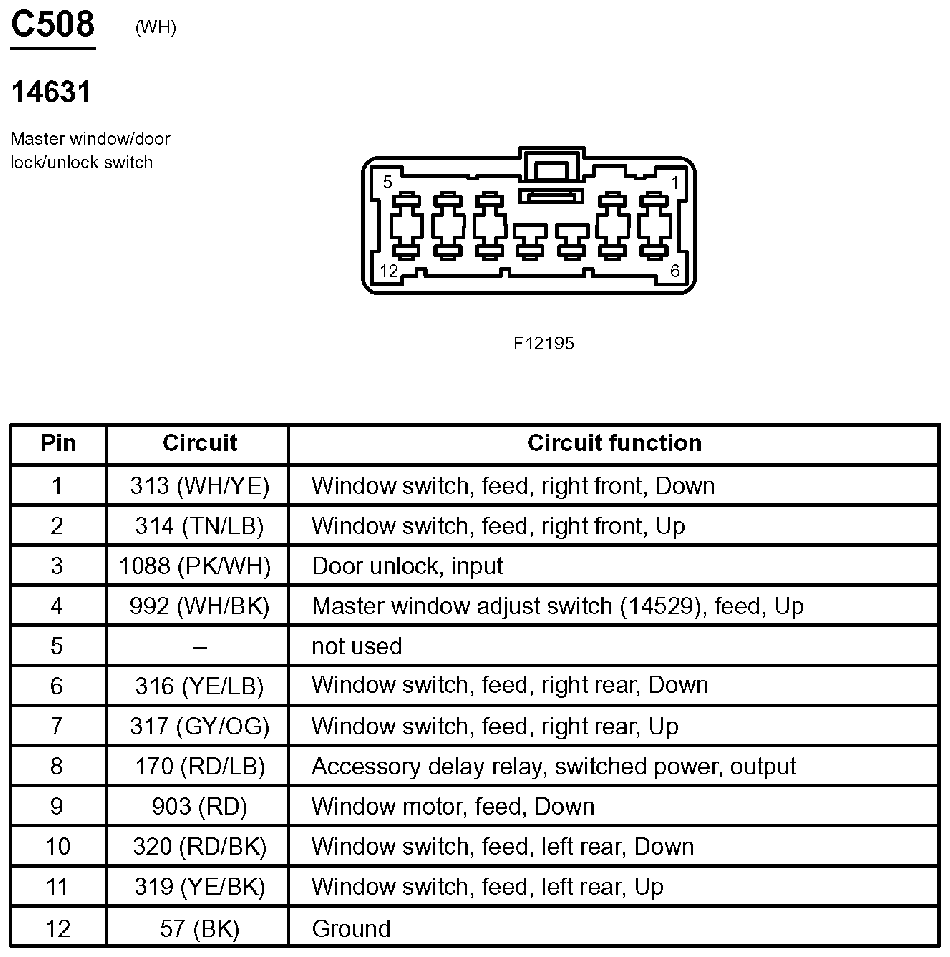

Fig 1: Master Window/Door Lock/Unlock Switch Connector End View (C508)

G07831552

Courtesy of FORD MOTOR CO.
