Home >> Mazda >> 2003 >> Protege5 Standard >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Technical Data (Transmission) >> Transmission/Transaxle Technical Data

Transmission/Transaxle Technical Data

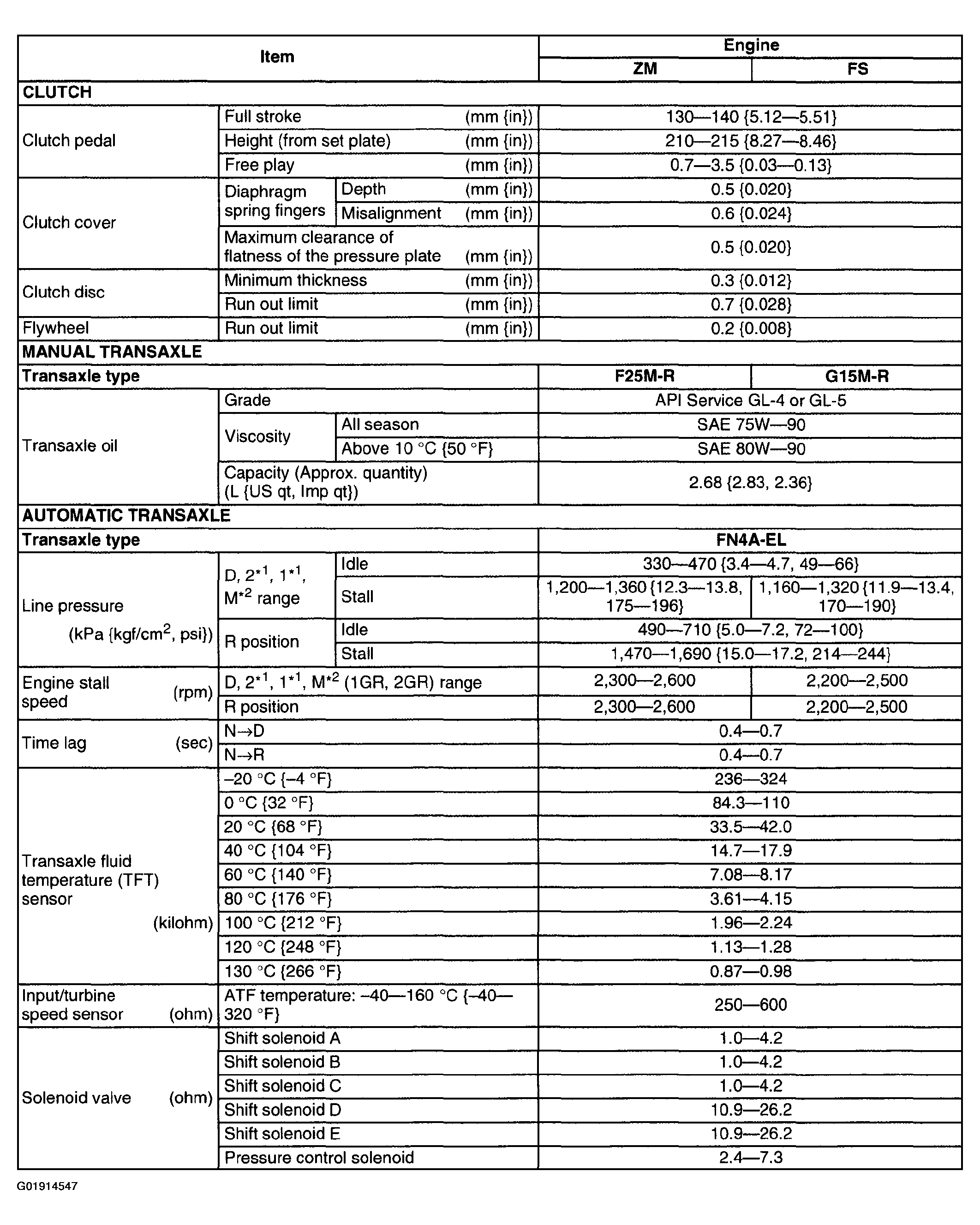

Fig 1: Transmission/Transaxle Technical Data Chart (1 Of 2)
G01914547Courtesy of MAZDA MOTORS CORP.
Fig 2: Transmission/Transaxle Technical Data Chart (2 Of 2)
G01914548Courtesy of MAZDA MOTORS CORP.
