Steering SST
Steering SST

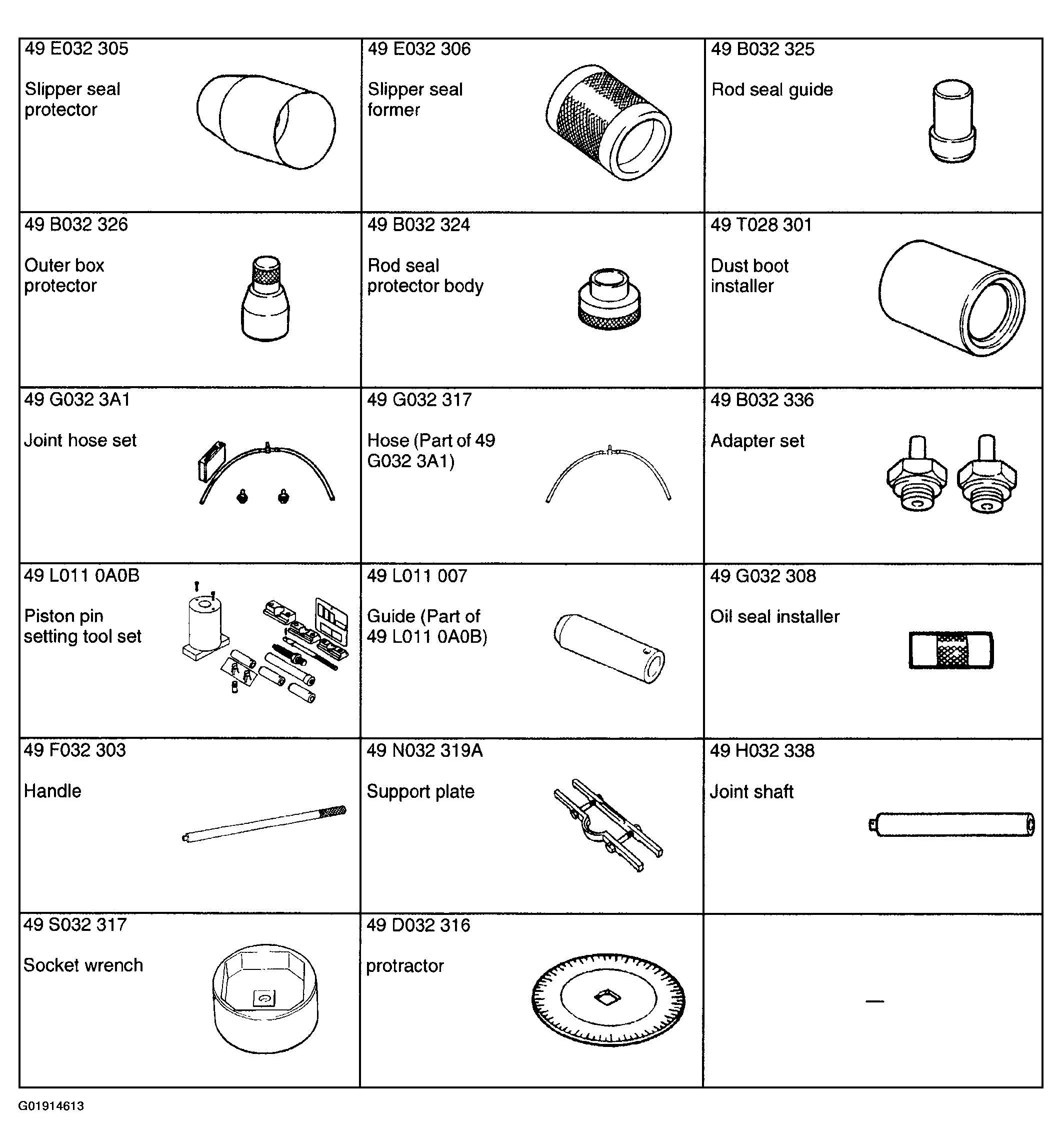

Fig 1: Steering SST Special Tools (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

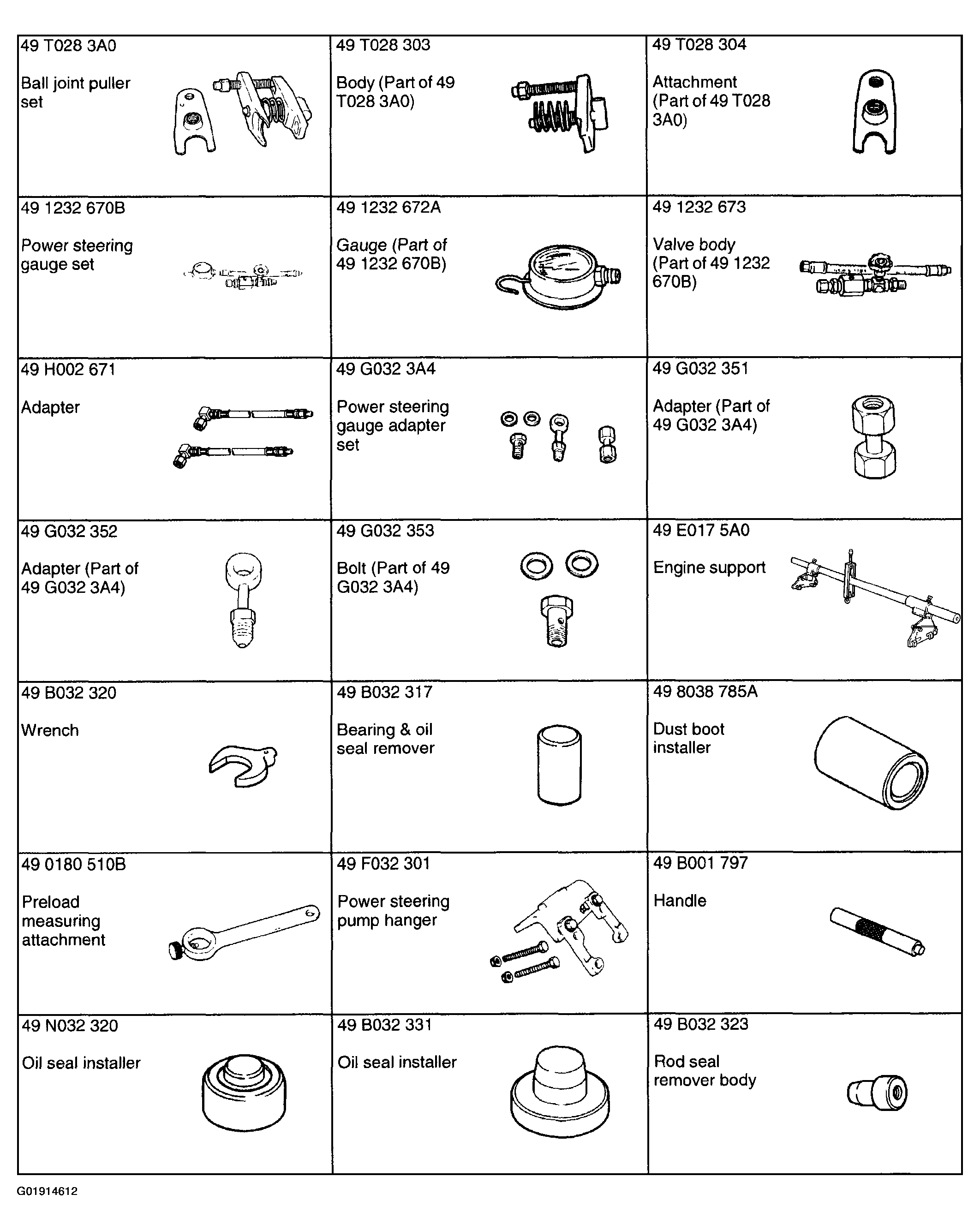

Fig 2: Steering SST Special Tools (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
