Steering Gear And Linkage Reassembly: Notes

Assemble in the order indicated in the figure.

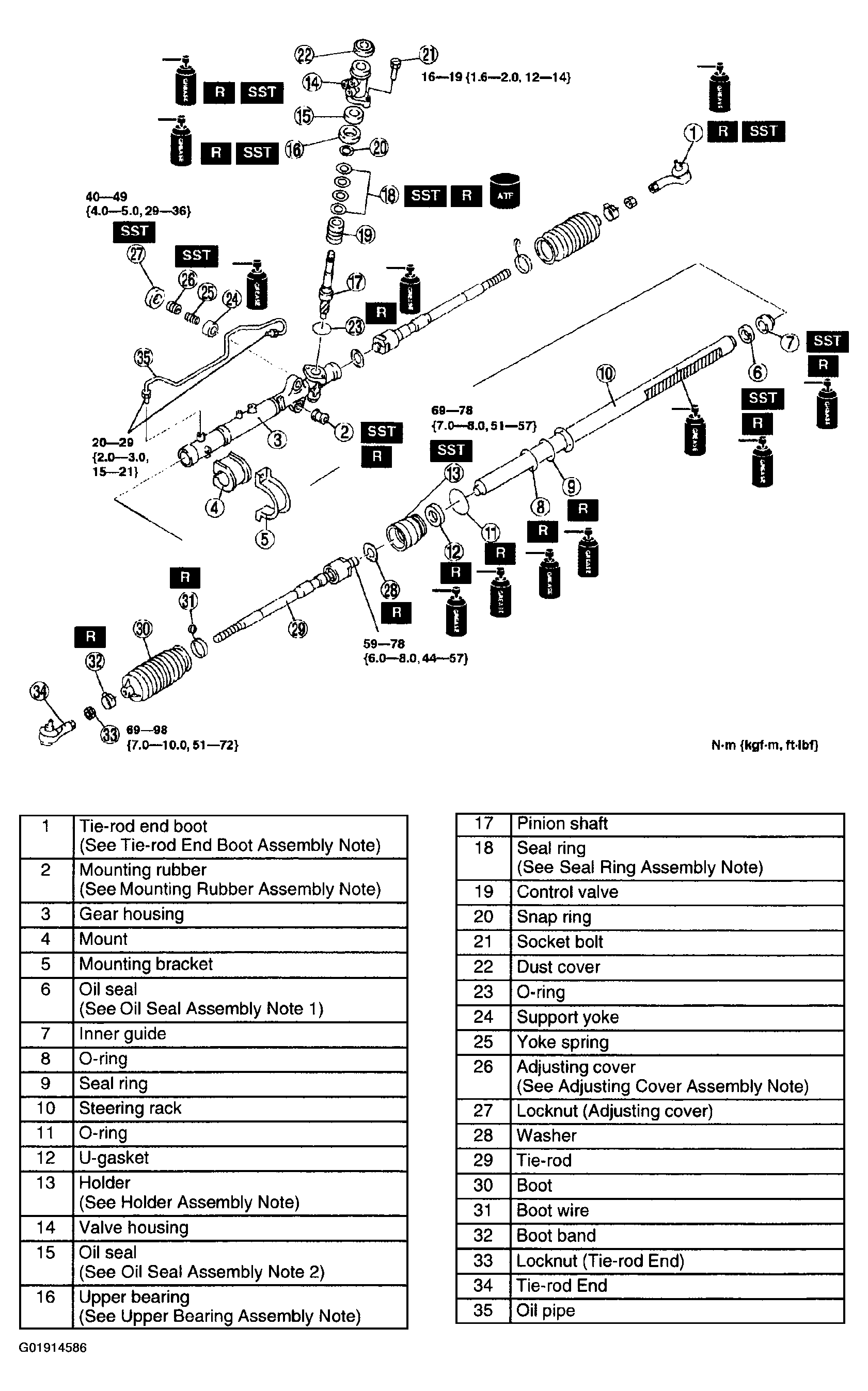

Fig 1: Assembling Steering Gear And Linkage
Courtesy of MAZDA MOTORS CORP.
