Steering Gear And Linkage Disassembly: Notes
Disassemble in the order indicated in the figure.

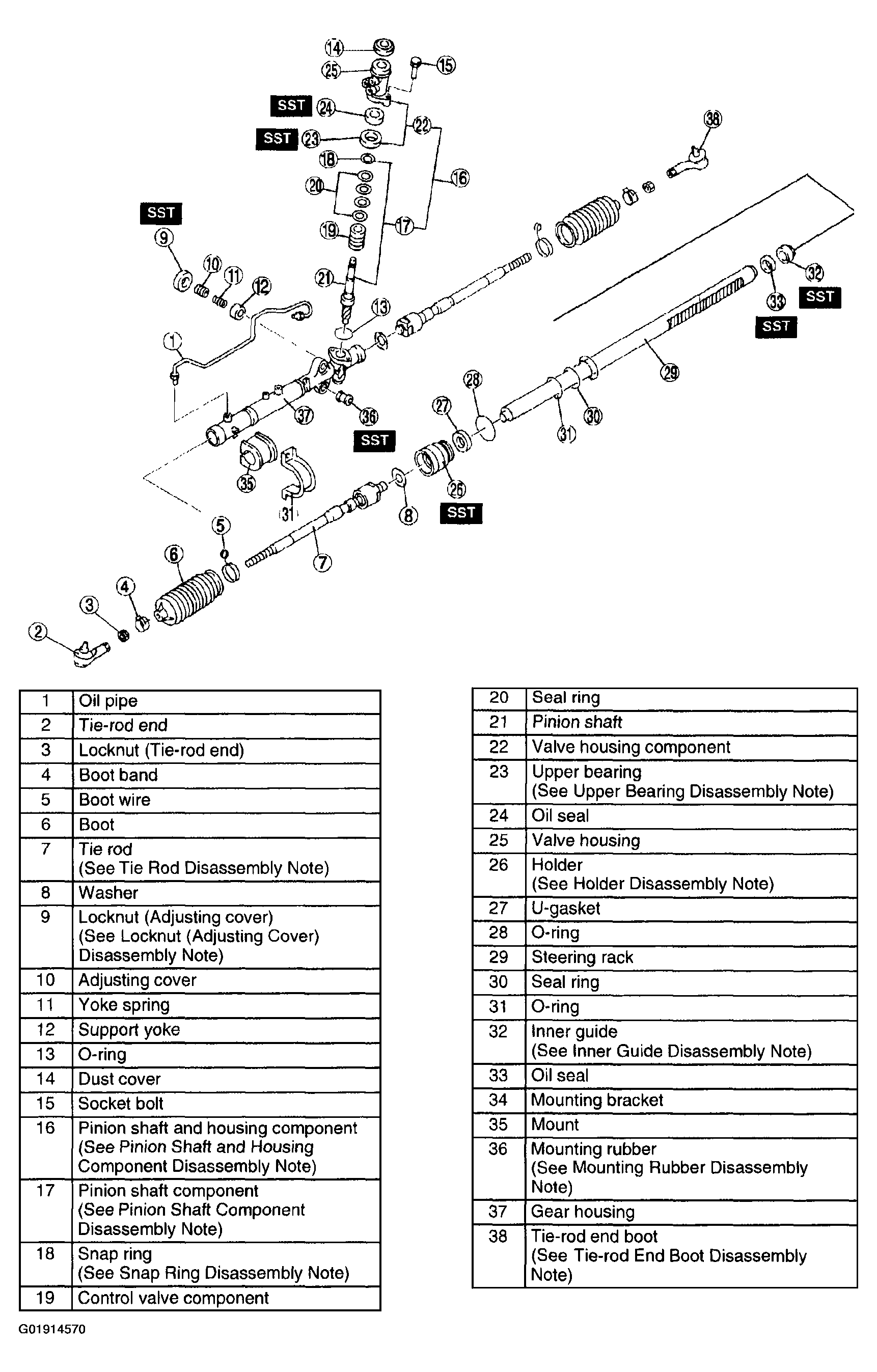

Fig 1: Disassembling Steering Gear And Linkage
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
