Oil Pump Installation Note: FS
- Apply clean engine oil to the oil seal.
- Push the oil seal slightly in by hand.
- Press the oil seal evenly using the SST.

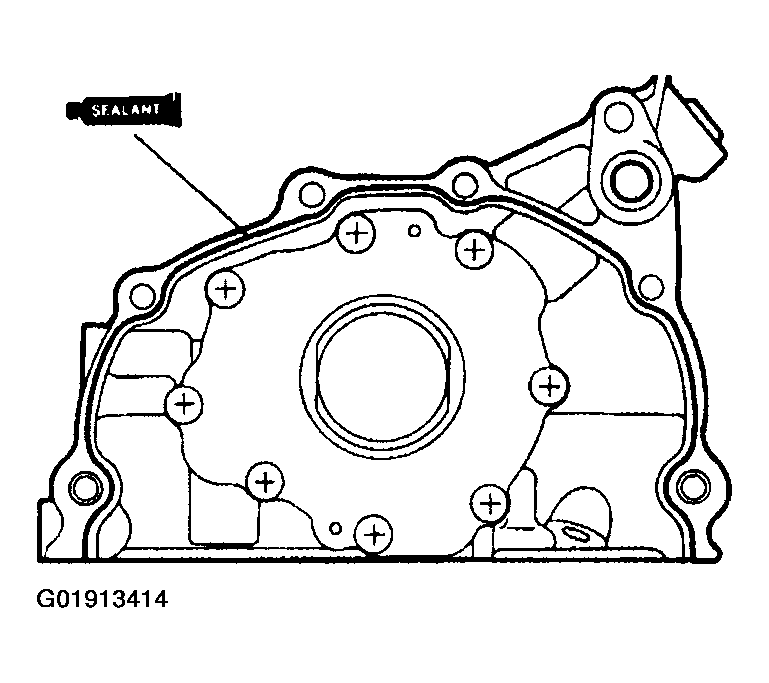

- Apply silicone sealant to the oil pump as shown.
Thickness
1.0-2.0 mm {0.040-0.078 in}
Thickness
1.0-2.0 mm {0.040-0.078 in}
