Oil Pan Upper Block Installation Note

  1. Apply silicone sealant to the oil pan upper block as shown.

    Thickness

    2.0-3.0 mm {0.08-0.11 in}

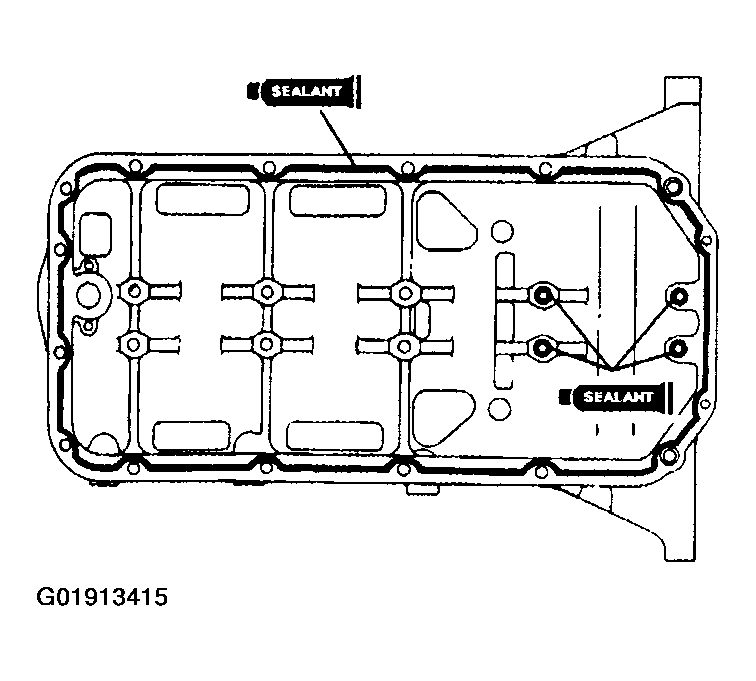

    Fig 1: Applying Silicone Sealant To Oil Pan Upper Block
    G01913415Courtesy of MAZDA MOTORS CORP.
  2. Tighten the bolts A.
  3. Tighten the oil pan upper block bolts in 2 or 3 steps in the order shown.

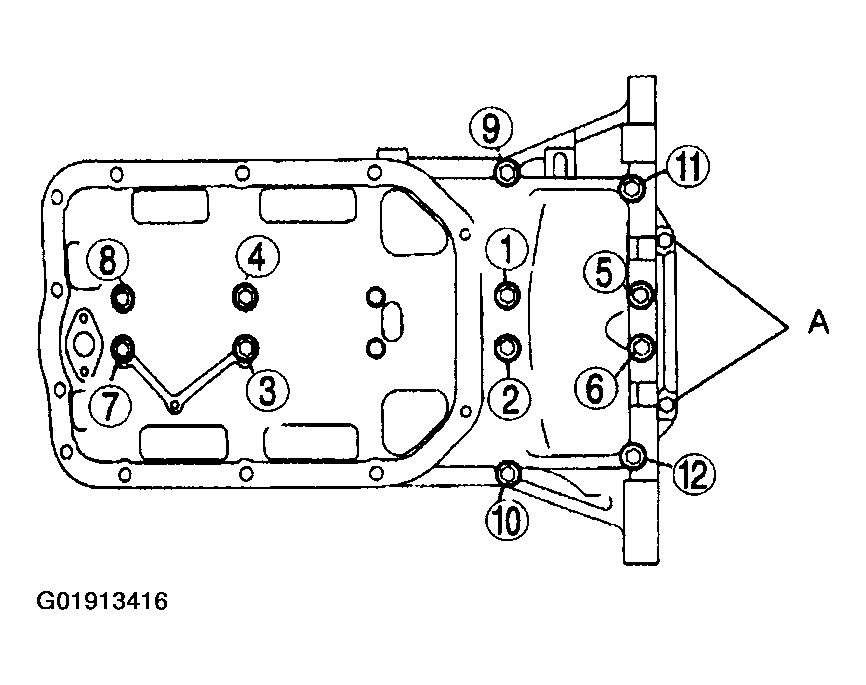

    Fig 2: Oil Pan Upper Block Bolts Tightening Sequence
    G01913416Courtesy of MAZDA MOTORS CORP.
