Lubrication Location Index

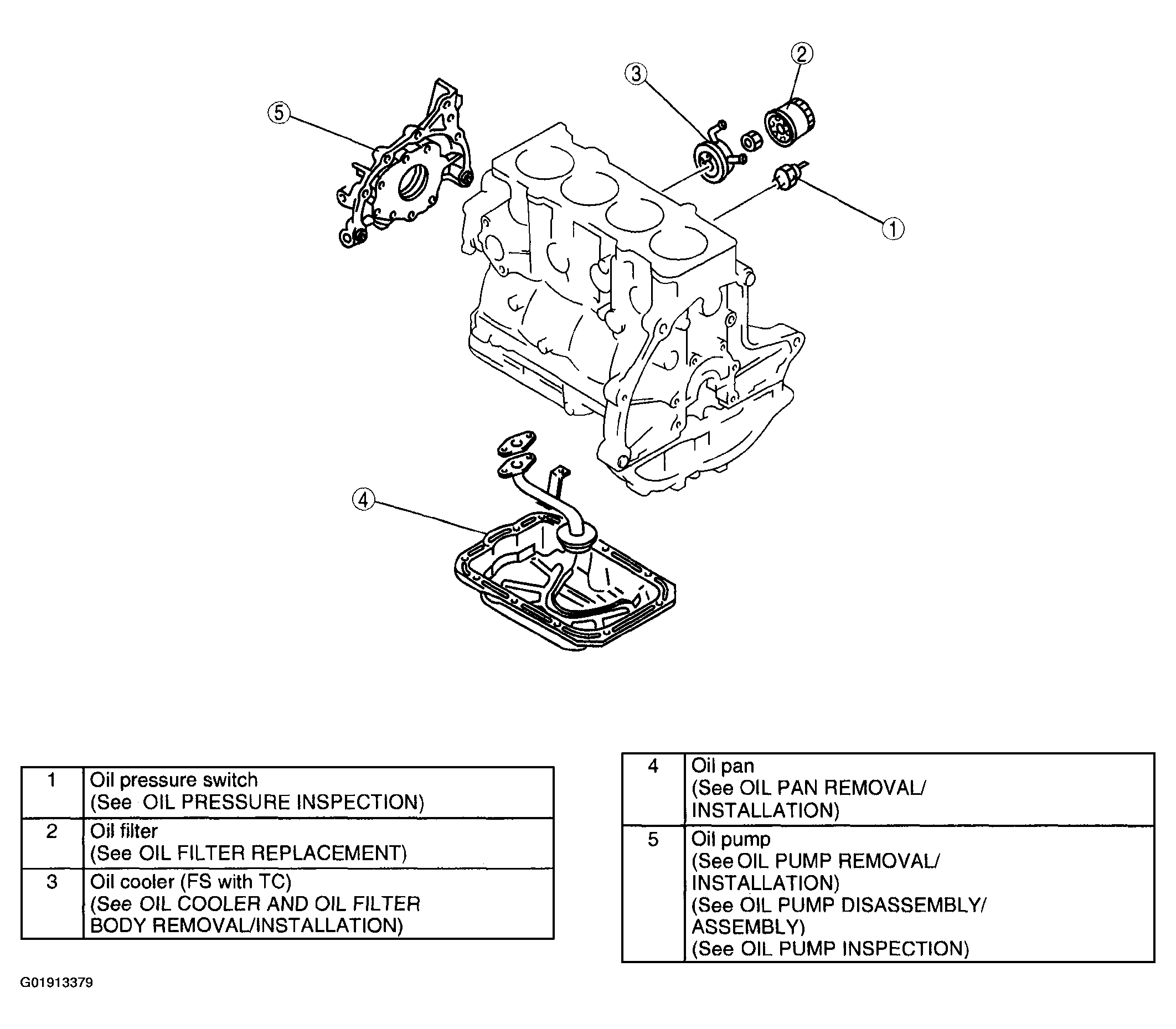

Fig 1: Identifying Lubrication System Components

G01913379

Courtesy of MAZDA MOTORS CORP.
