FS With TC

  1. Disconnect the negative battery cable.
  2. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS  .) (See ENGINE COOLANT REPLACEMENT  .)
  3. Remove the fresh air duct.
  4. Remove in the order indicated in the illustration.
  5. Install in the reverse order of removal.

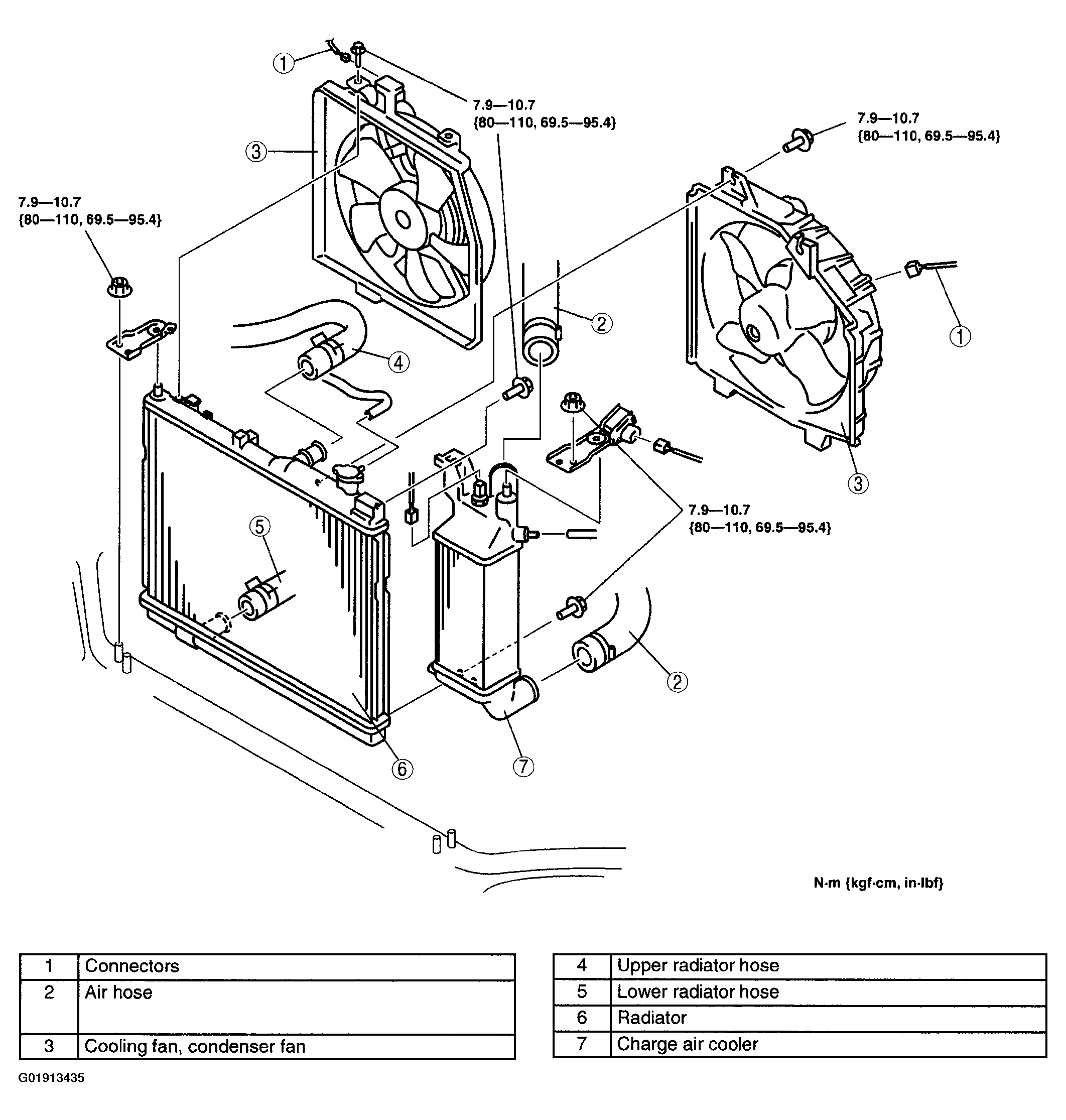

    Fig 1: Removing Radiator (FS With TC)
    G01913435Courtesy of MAZDA MOTORS CORP.
