Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located under driver's side of instrument panel. See Fig 1 .

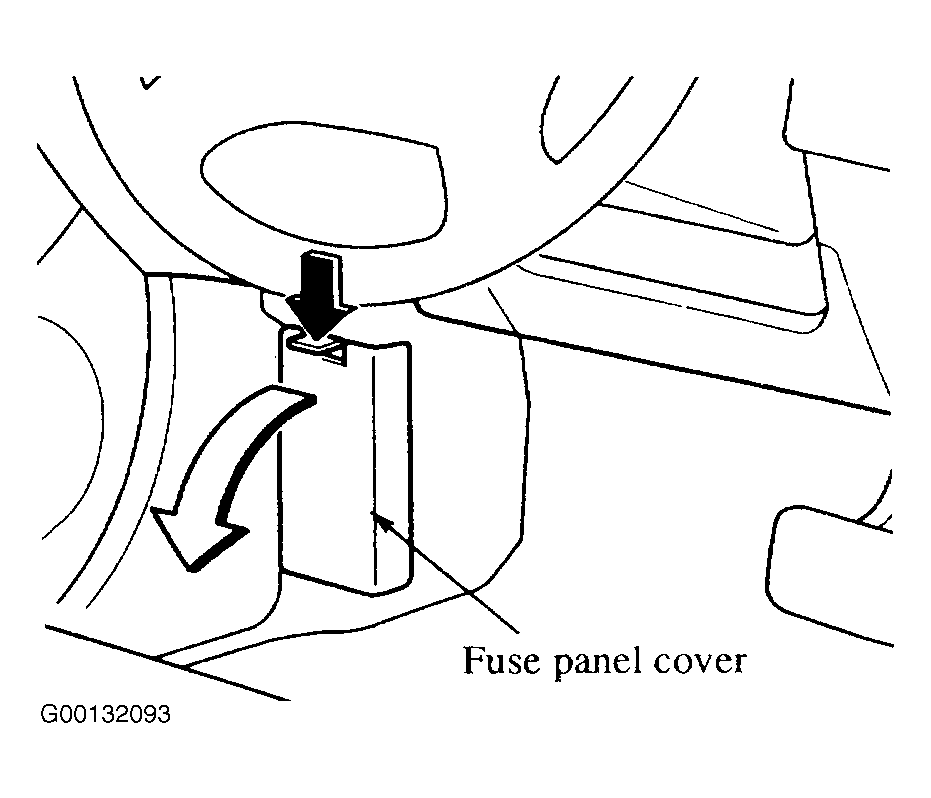

Fig 1: Locating Instrument Panel Fuse Block
G00132093Courtesy of MAZDA MOTORS CORP.

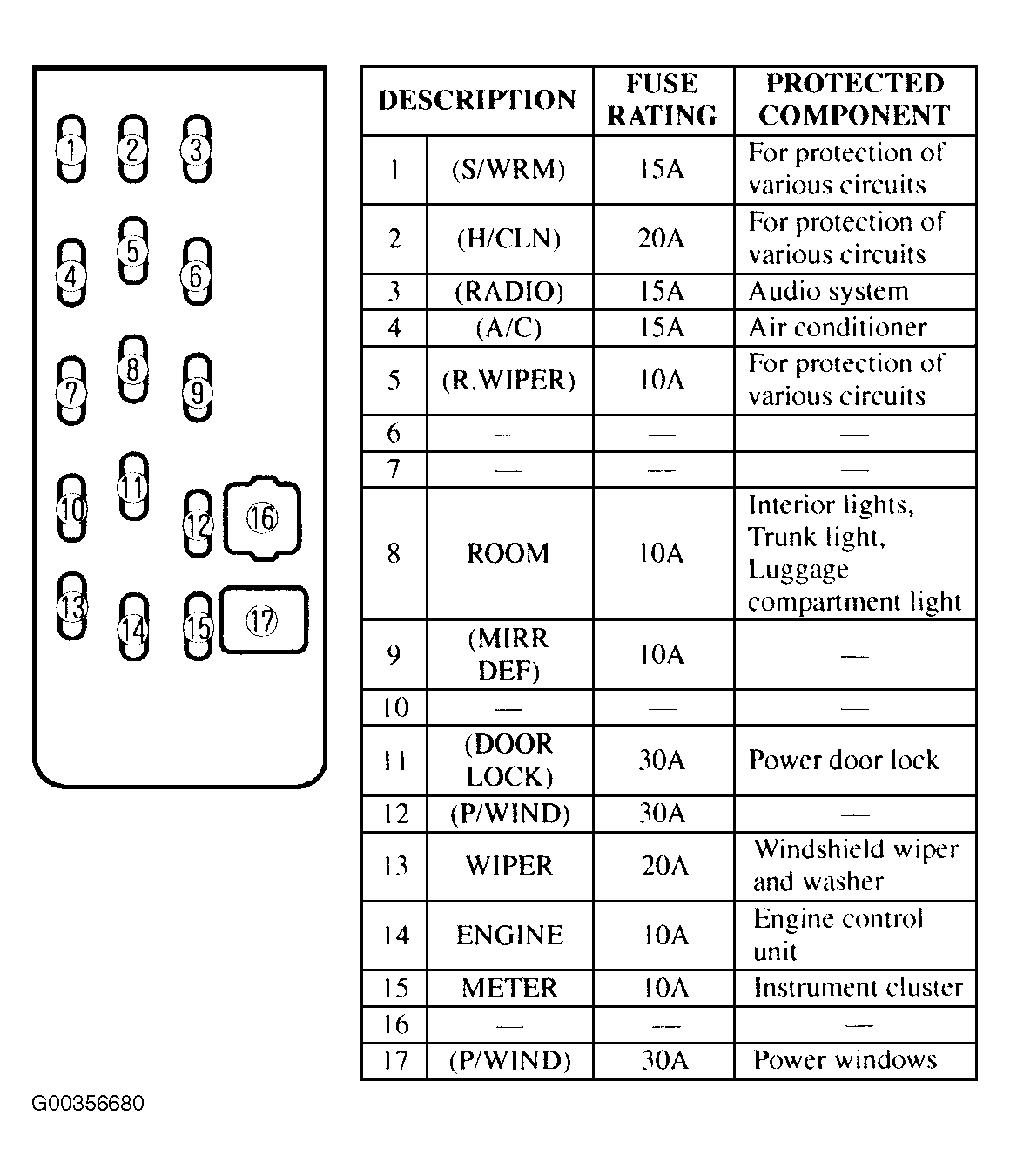

Fig 2: Instrument Panel Fuse Box Legend
G00356680Courtesy of MAZDA MOTORS CORP.
