Rear Seat Disassembly/Assembly: 4SD

  1. Disassemble in the order indicated in the figure.

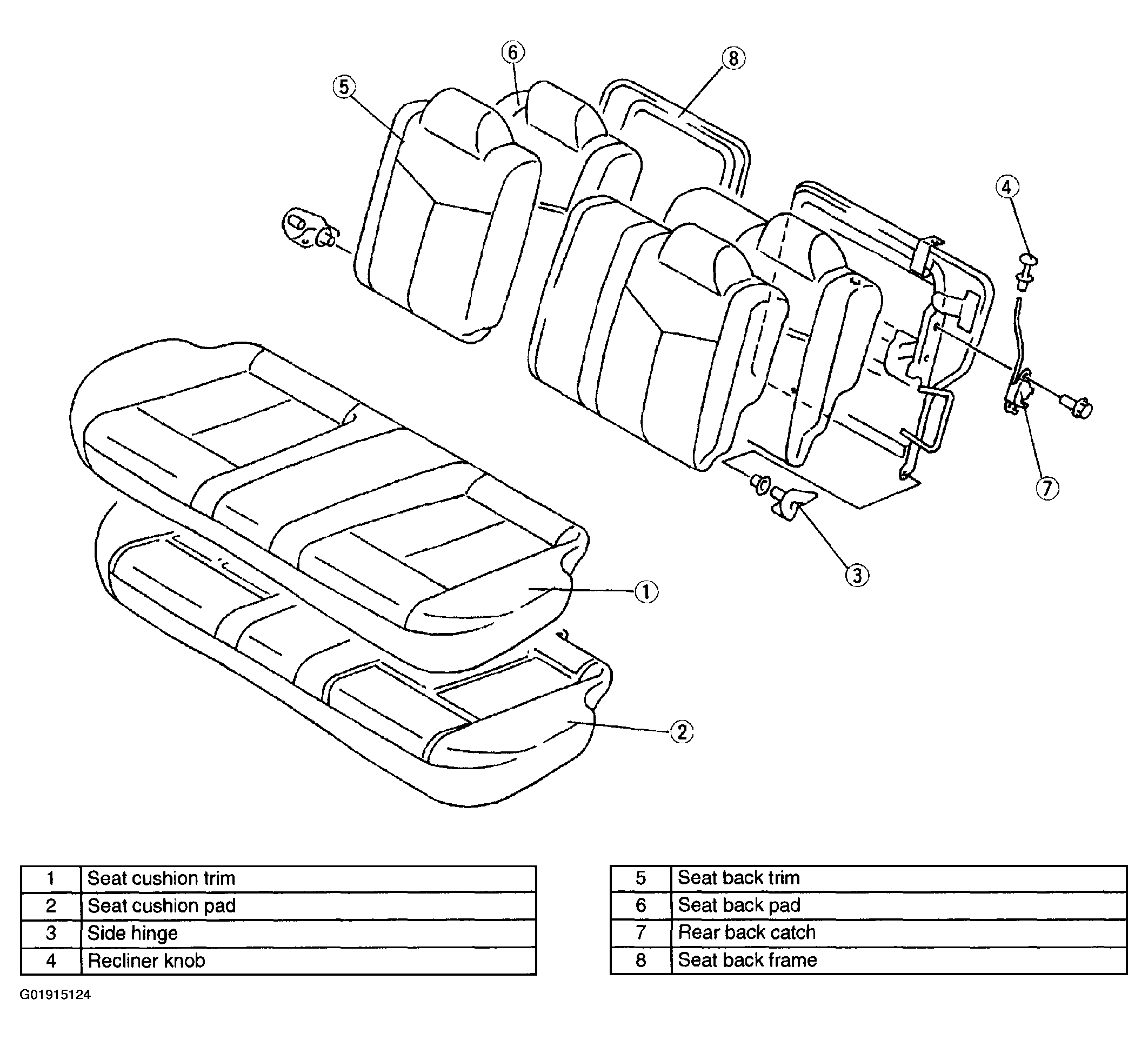

    Fig 1: View Of Rear Seat (4SD)
    G01915124Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
