Side Panel Removal/Installation

  1. Remove clips A using a tape-wrapped flathead screwdriver.

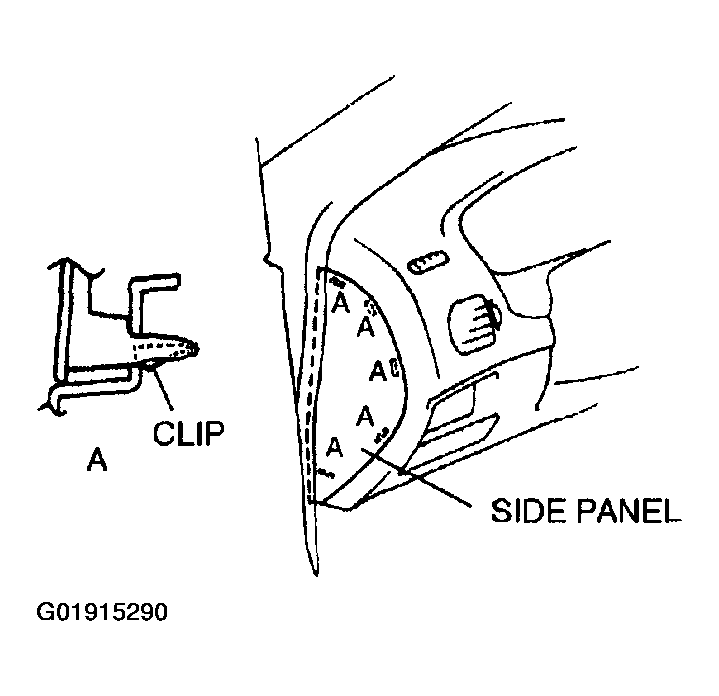

    2. Fig 1: Removing Side Panel
    G01915290Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
