Boot Panel Removal Note

  1. Pull the boot panel upward, then disengage clips A and B from the console.

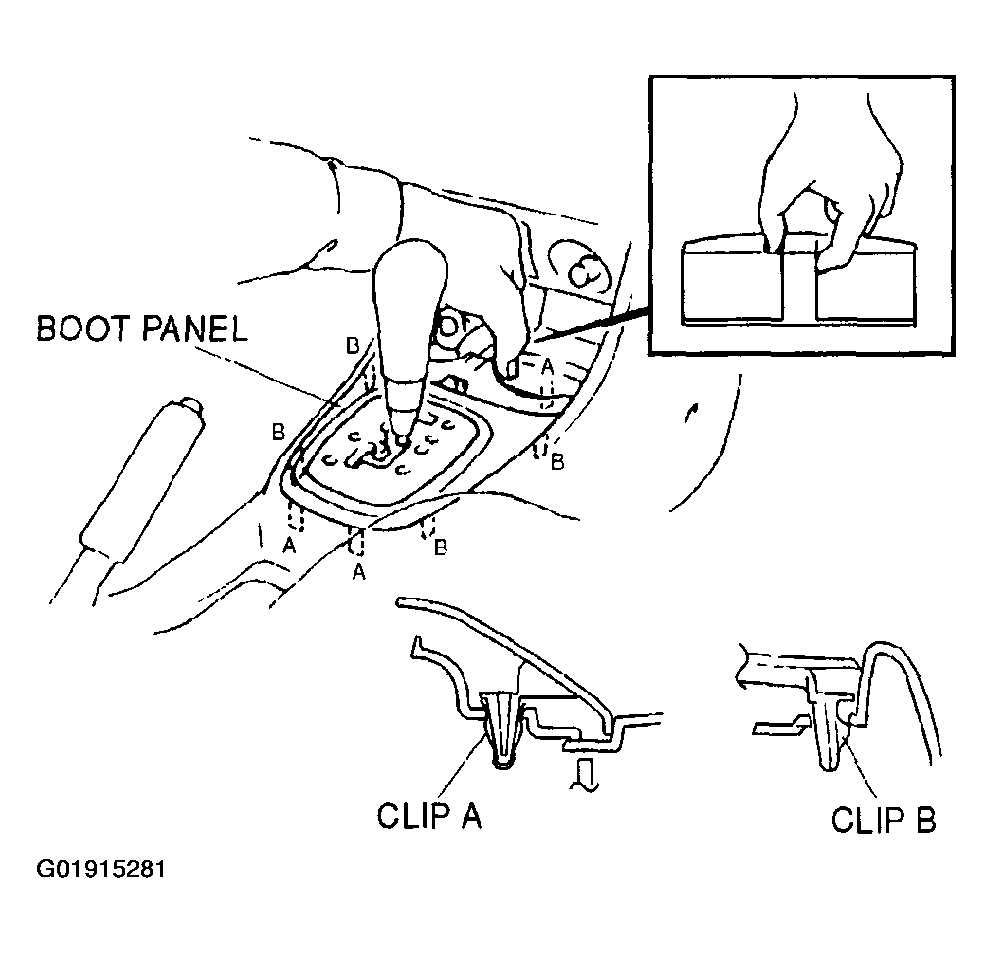

    Fig 1: Pulling Boot Panel Upward And Disengaging Clips A And B From Console
    G01915281Courtesy of MAZDA MOTORS CORP.
