Console Disassembly/Assembly

  1. Disassemble in the order indicated in the figure.

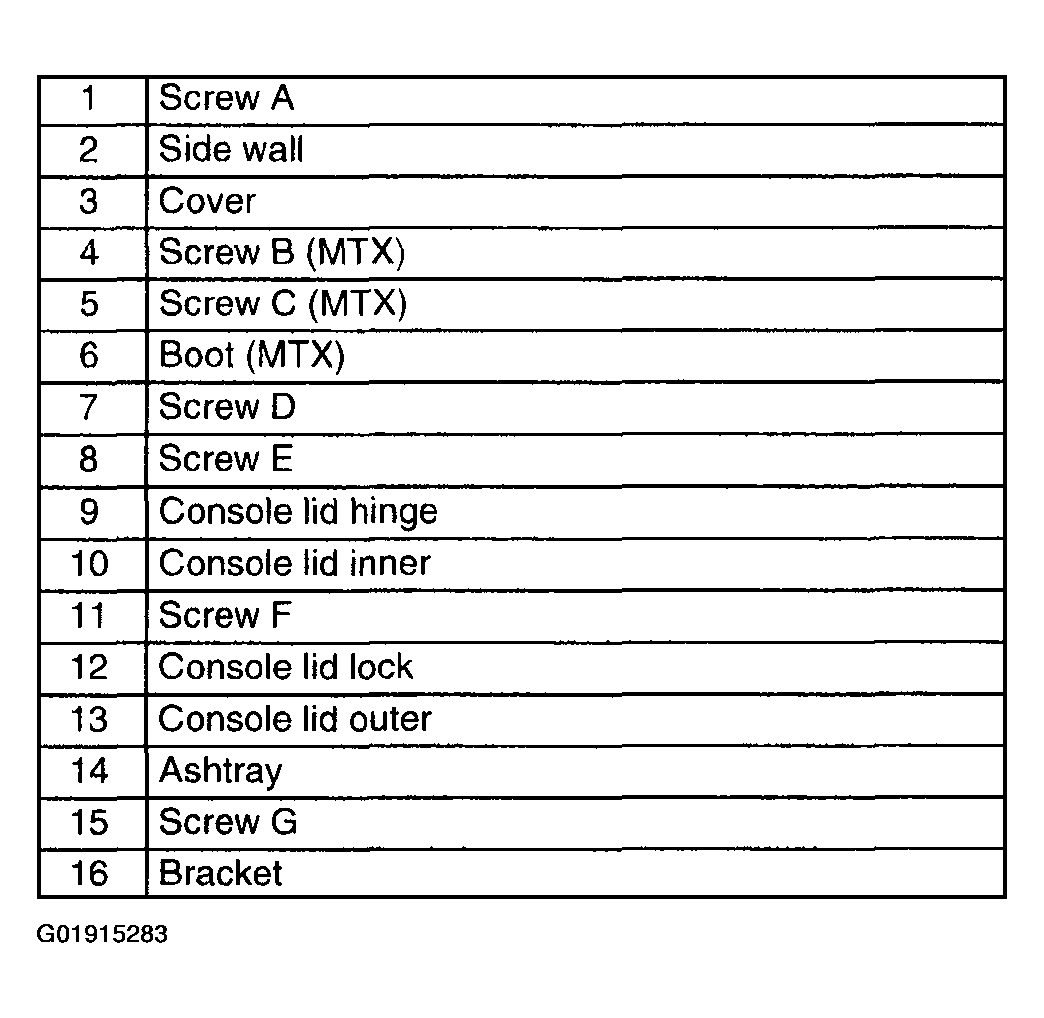

    Fig 1: Console Cover Disassembling Sequence Index
    G01915283Courtesy of MAZDA MOTORS CORP.

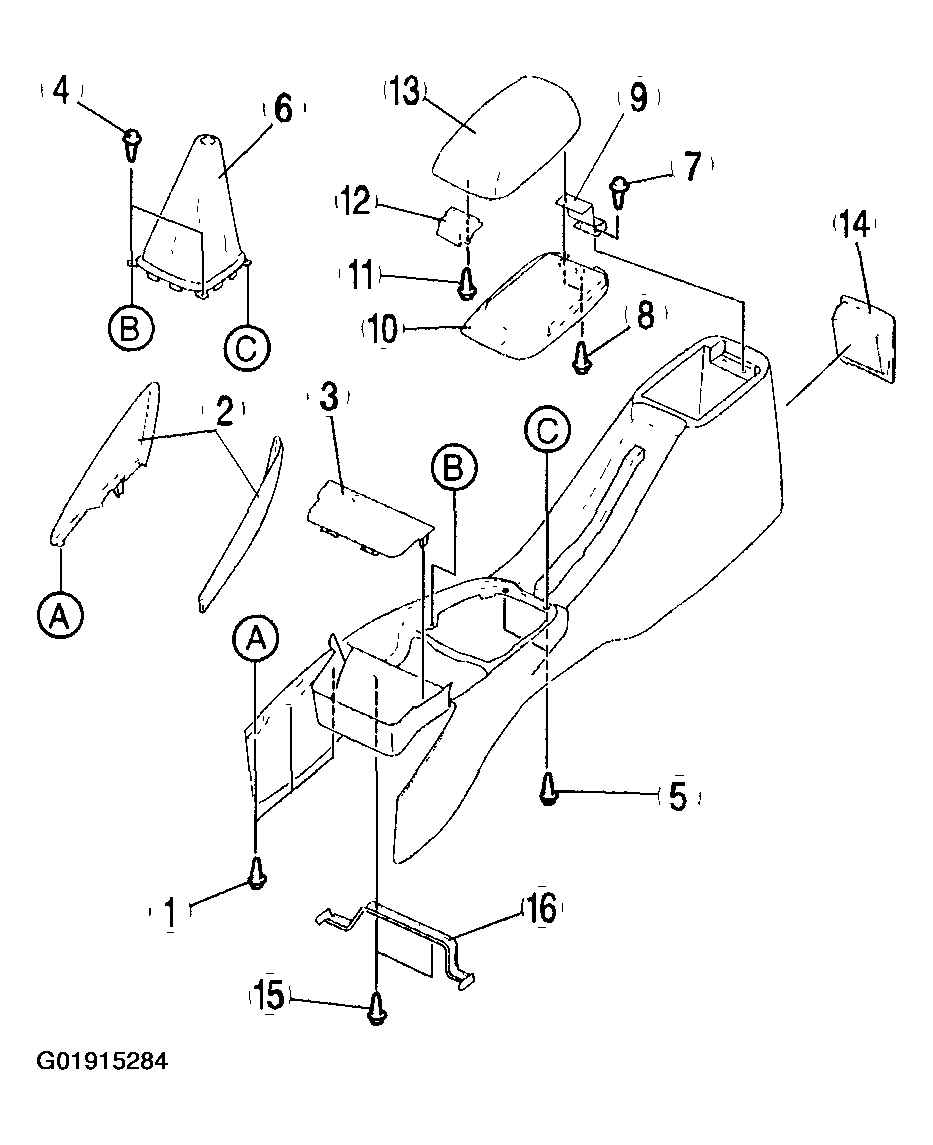

    Fig 2: Disassembling Sequence Of Console Cover
    G01915284Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
