Console Adjustment

CAUTION:
  • Take care to install the console and the center panel so that there is no interference which may cause noise.
  1. Loosen screws A.
  2. Slide the console indicated by the arrow and measure the gap between the console and the dashboard.

    Clearance

    A: 0.2-1.8 mm (0.0008-0.07 in)

  3. Tighten screws A.

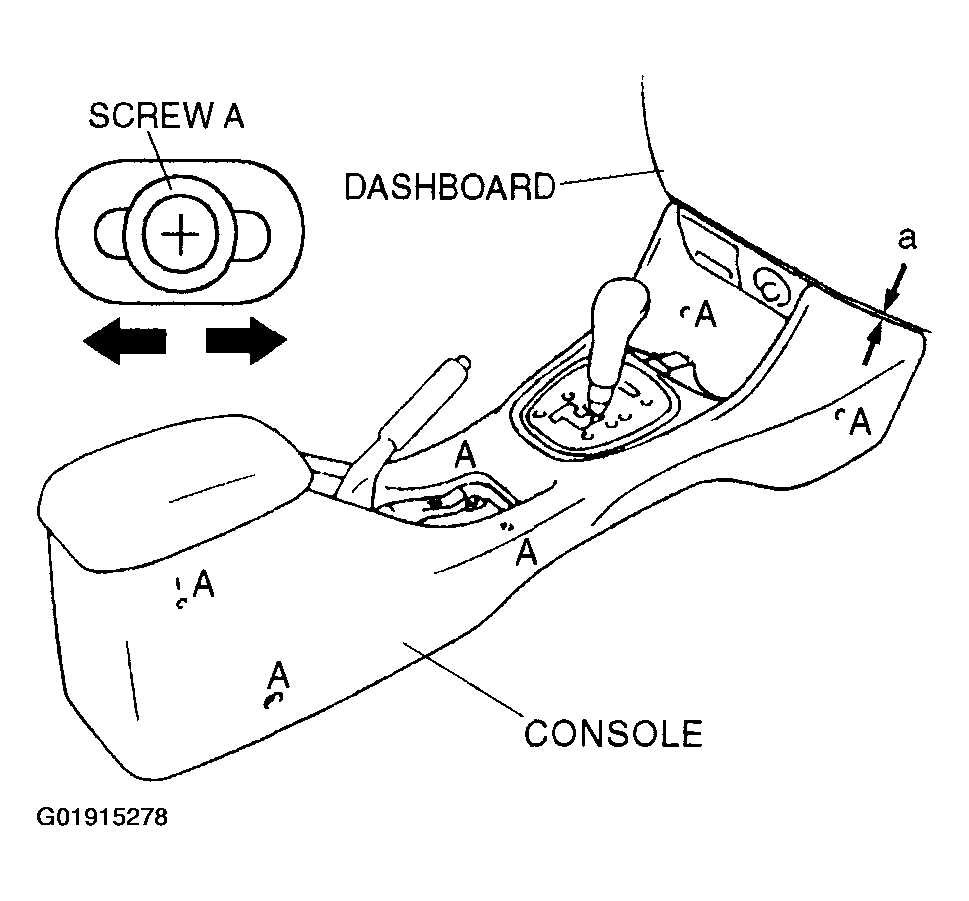

    Fig 1: Loosening Screws A And Sliding Console Indicated By Arrow
    G01915278Courtesy of MAZDA MOTORS CORP.
