Protege5 Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Symptom Troubleshooting (Keyless Entry System)
>>
Keyless Entry System Wiring Diagram
Keyless Entry System Wiring Diagram

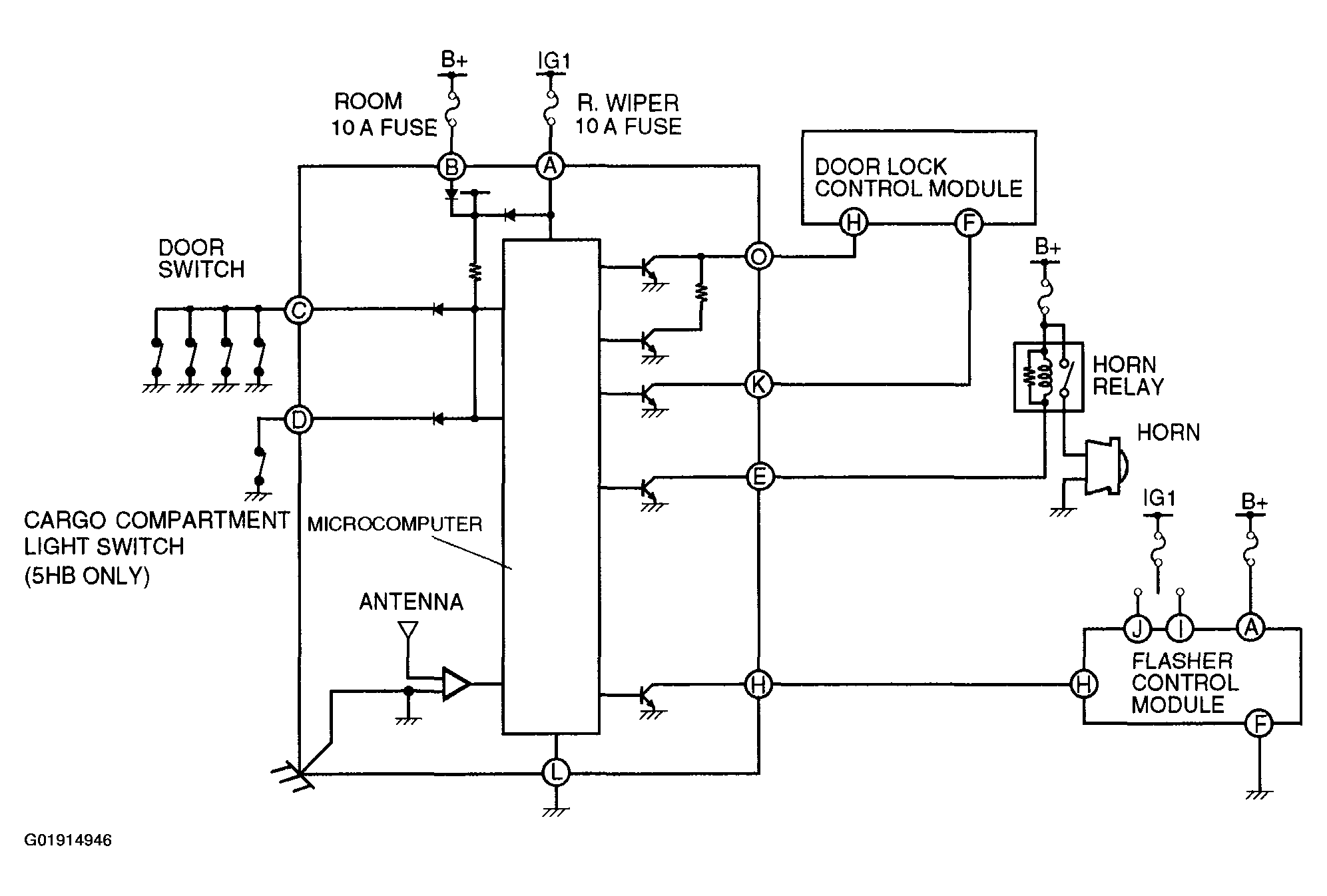

Fig 1: Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
