Upper Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the audio unit. (See AUDIO UNIT REMOVAL  .)
  3. Remove in the order indicated in the figure.
    Fig 1: Upper Module Removing Sequence Index
    G01915514Courtesy of MAZDA MOTORS CORP.

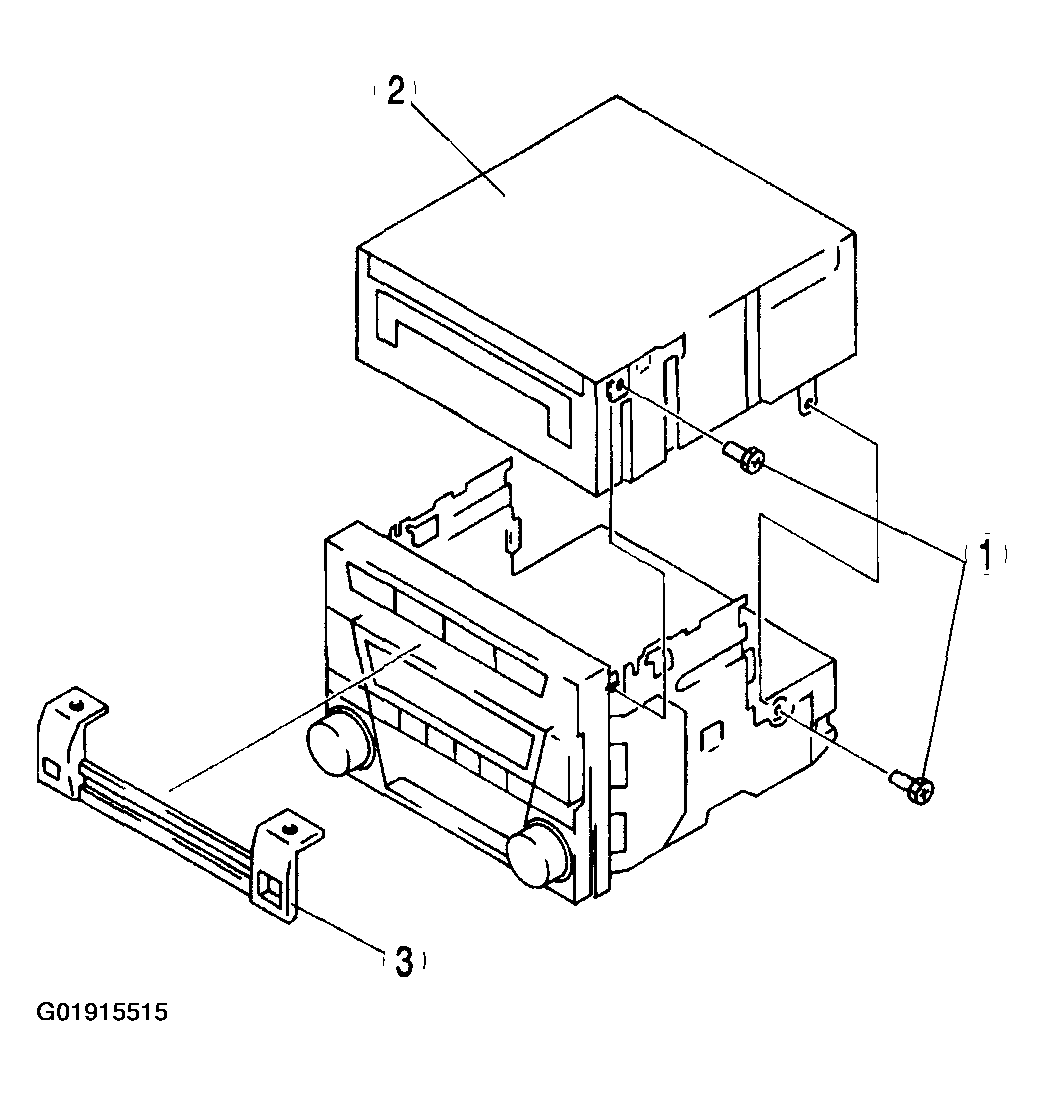

    Fig 2: Removing Upper Module
    G01915515Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
