Camber and Caster Adjustment

Jack up the front of the vehicle and support it on safety stands.
Remove the mounting block nuts.
Push the mounting block downward, and turn it to the desired position.

Fig 1: Camber And Caster Angle Adjustment Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing Mounting Block Nuts
Courtesy of MAZDA MOTORS CORP.

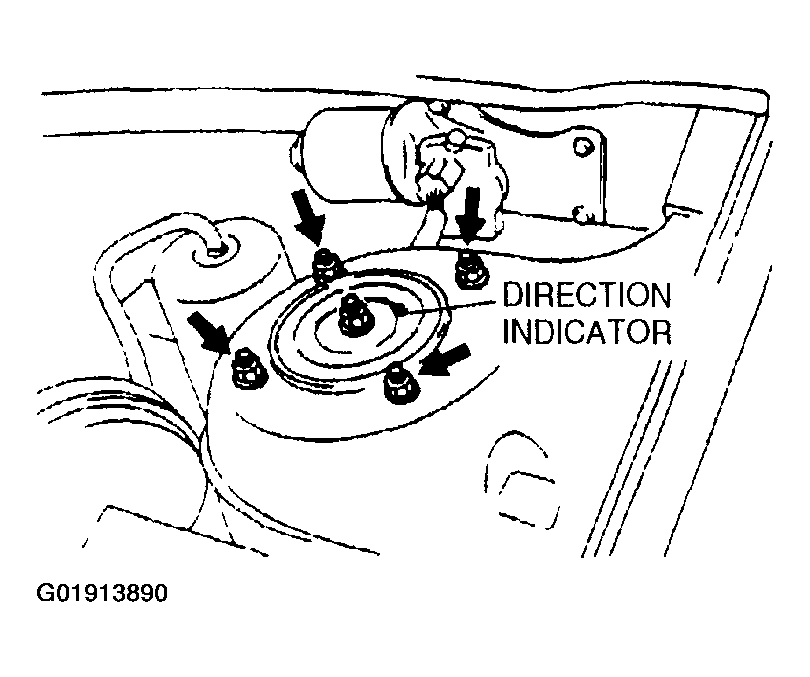

Fig 3: Mounting Nut Tightening Direction Indicator
Courtesy of MAZDA MOTORS CORP.
Install and tighten the mounting nuts to the specified torque.
Tightening torque

47-62 N.m (34-46 ft.lbf)
