Steering Shaft Installation Note

CAUTION:
  • Do not apply a shock in the axial direction of the shaft.
  1. Tighten bolt A.
  2. Tighten bolt C.
  3. Tighten bolt B.
  4. Release the adjusting lever, and lower the steering shaft to the lowest position.
  5. Tighten bolt D.

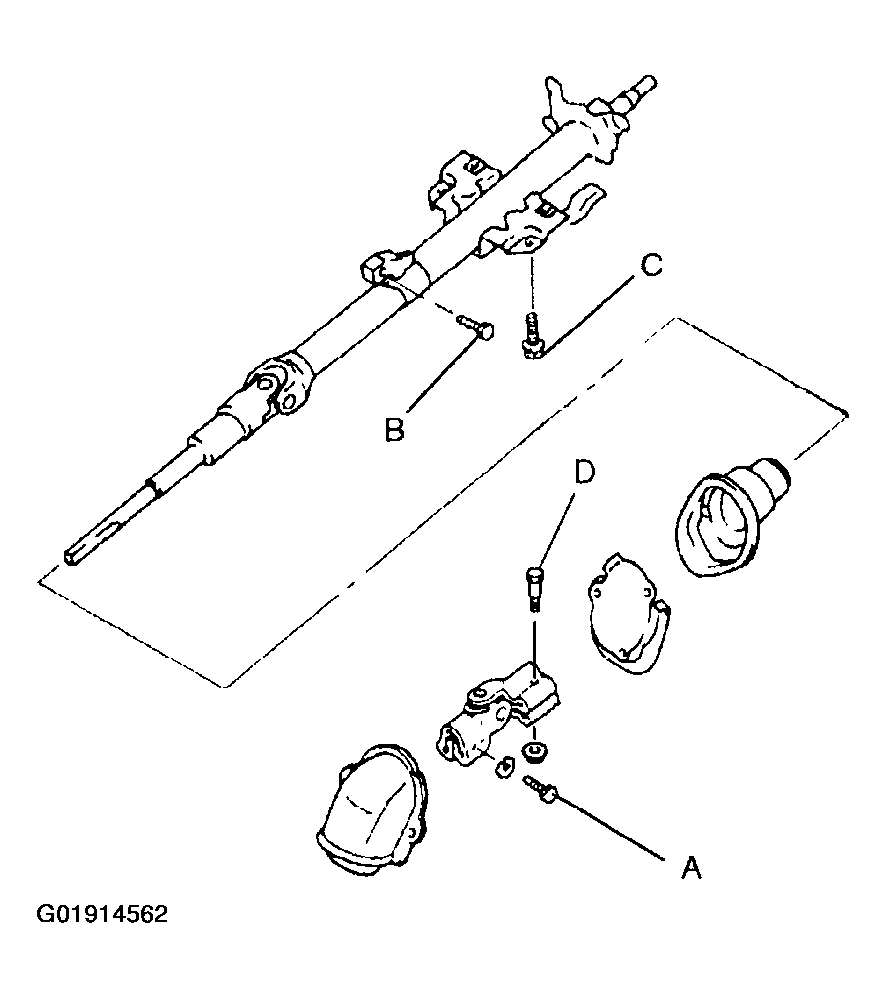

    Fig 1: Installing Steering Shaft
    G01914562Courtesy of MAZDA MOTORS CORP.
