Cylinder Outer Component Removal Note

CAUTION:
  • When replacing the cylinder outer component, the coil also must be replaced.
  1. Set the key in the ACC position.
  2. Keep pushing the button and remove the cylinder outer component.

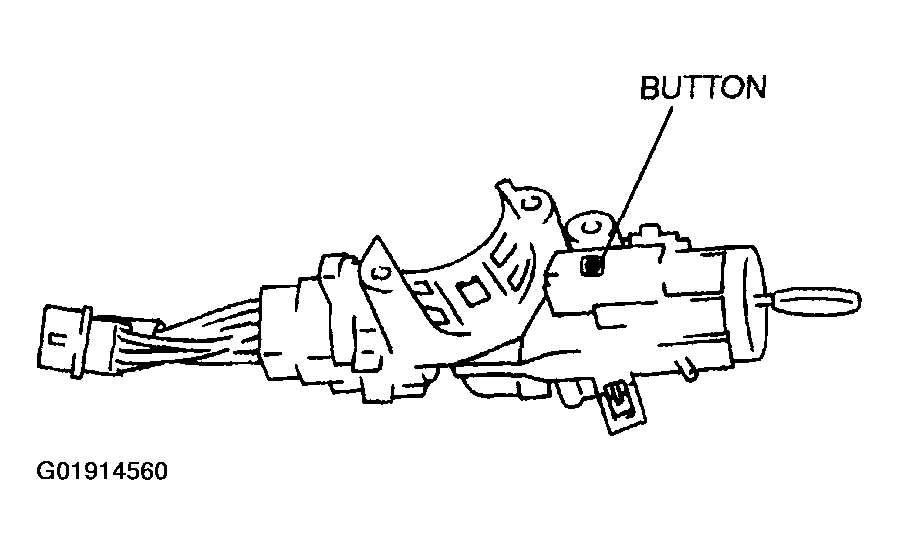

    Fig 1: Removing Cylinder Outer Component
    G01914560Courtesy of MAZDA MOTORS CORP.
