Tie Rod Disassembly Note

  1. Unclamp the washer.
  2. Remove the tie-rod.

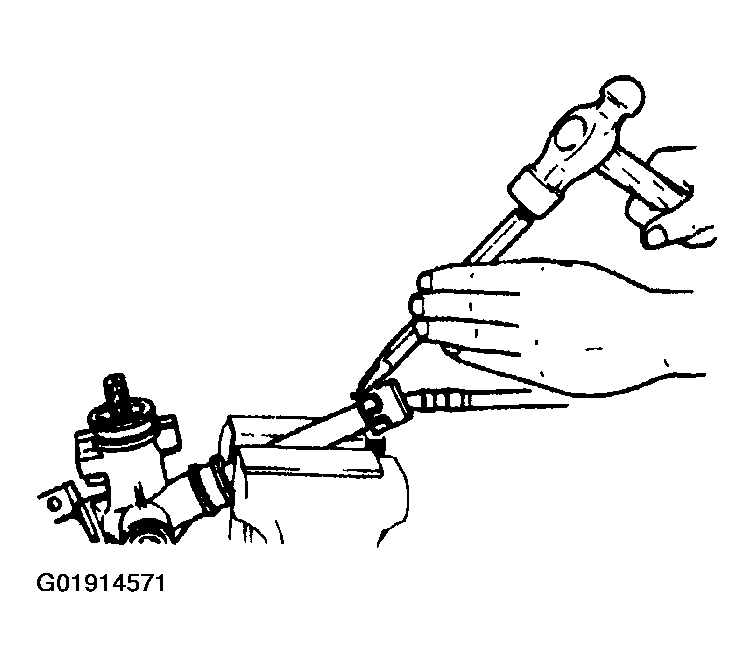

    Fig 1: Disassembling Tie Rod
    G01914571Courtesy of MAZDA MOTORS CORP.
