Vane Assembly Note

  1. Place the vanes in the rotor with the rounded edges contacting the cam.

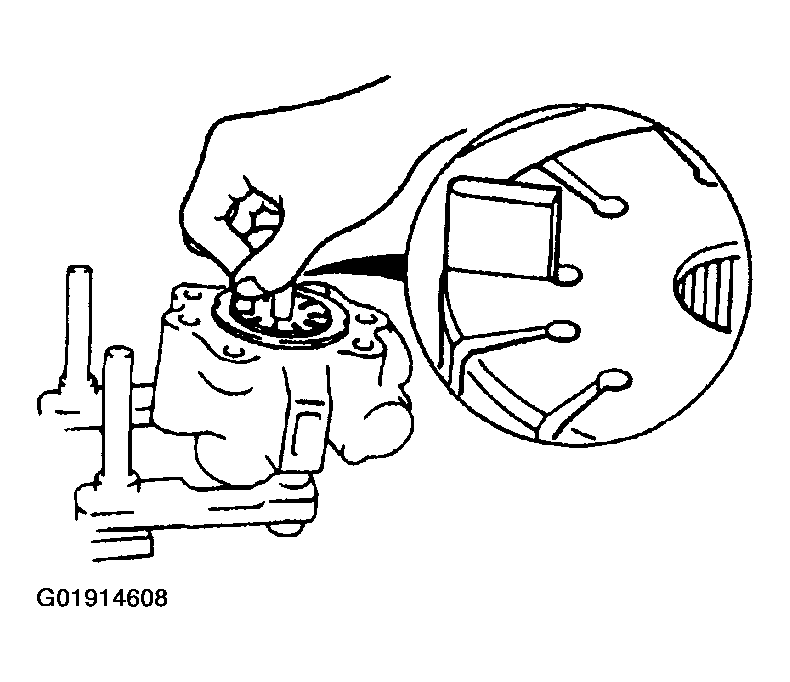

    Fig 1: Assembling Vane
    G01914608Courtesy of MAZDA MOTORS CORP.
