Cam Ring Assembly Note

  1. Install the cam ring in the front pump body with the mark facing upward.

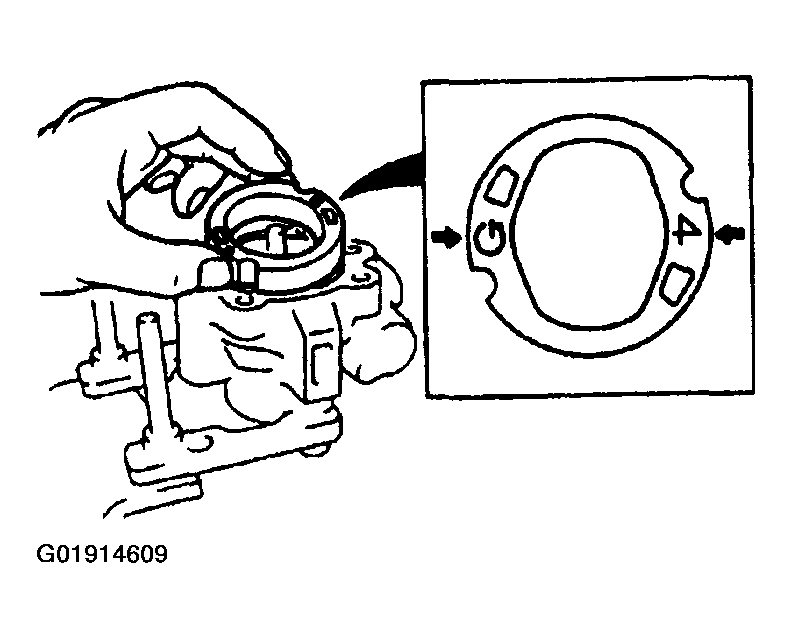

    Fig 1: Assembling Cam Ring
    G01914609Courtesy of MAZDA MOTORS CORP.
