Snap Ring Disassembly Note

  1. Carefully remove the snap ring without damaging the pinion shaft component.

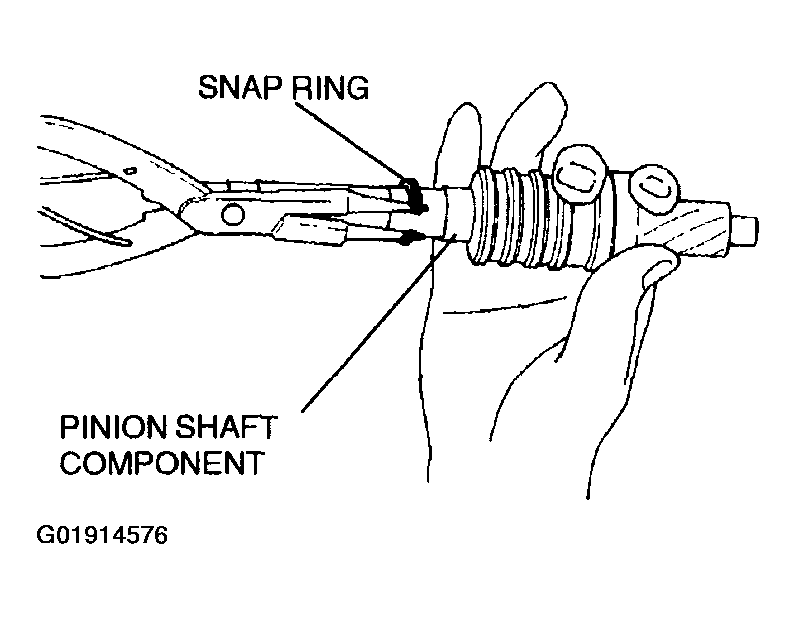

    Fig 1: Disassembling Snap Ring
    G01914576Courtesy of MAZDA MOTORS CORP.
