Hood Lock And Opener Removal/Installation

  1. Remove in the order indicated in the table.

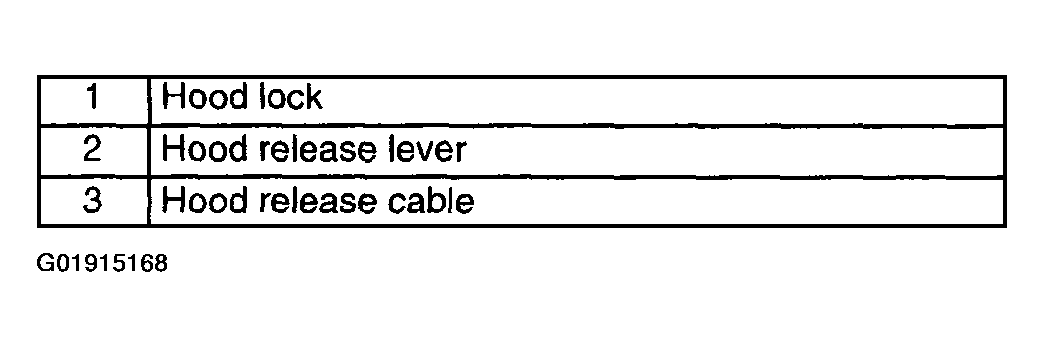

    Fig 1: Removing Order Table
    G01915168Courtesy of MAZDA MOTORS CORP.

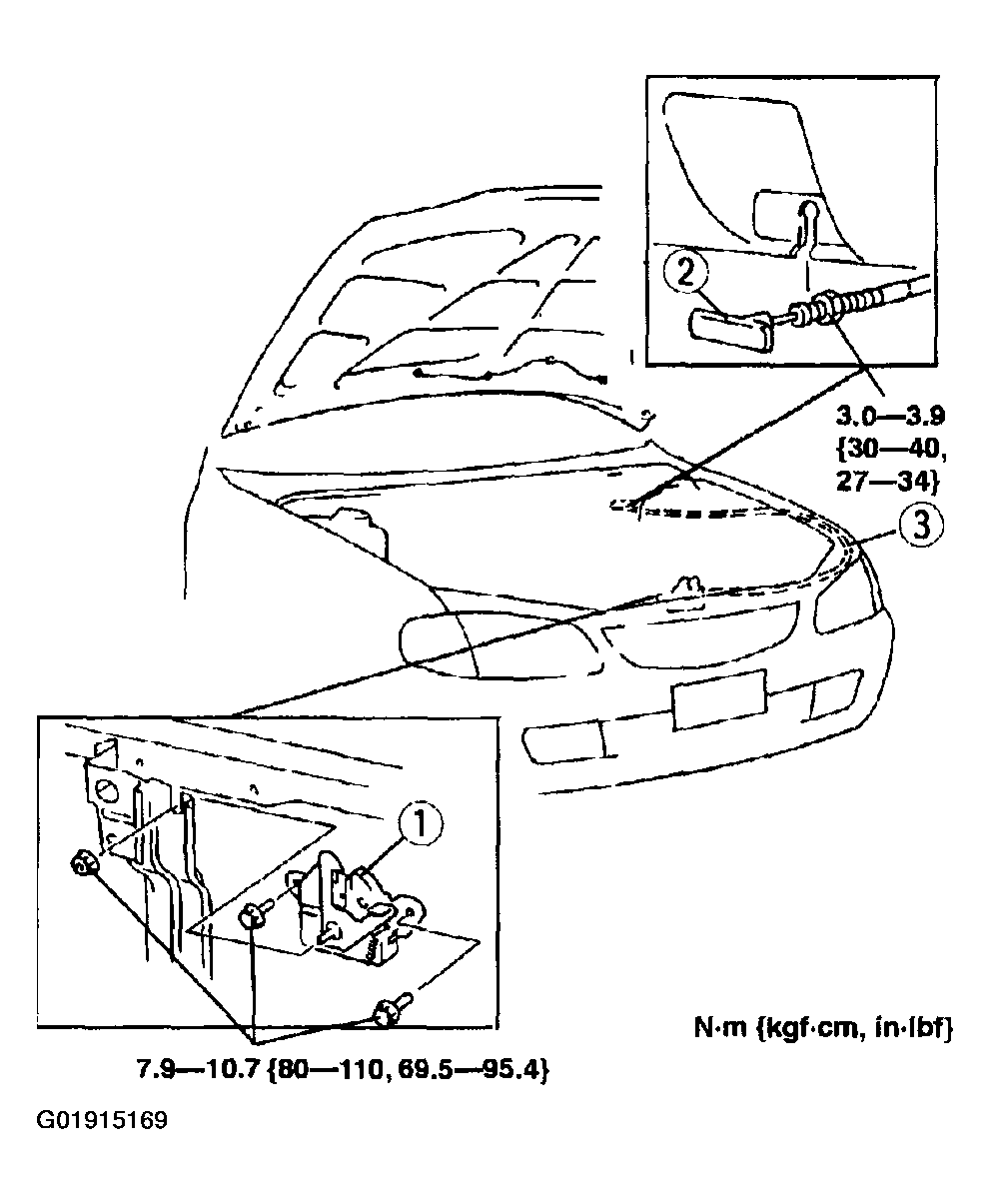

    Fig 2: Removing Hood Lock And Opener
    G01915169Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
