Front Oil Seal Replacement: Notes

  1. Disconnect the negative battery cable.
  2. Remove the timing belt. (See TIMING BELT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.

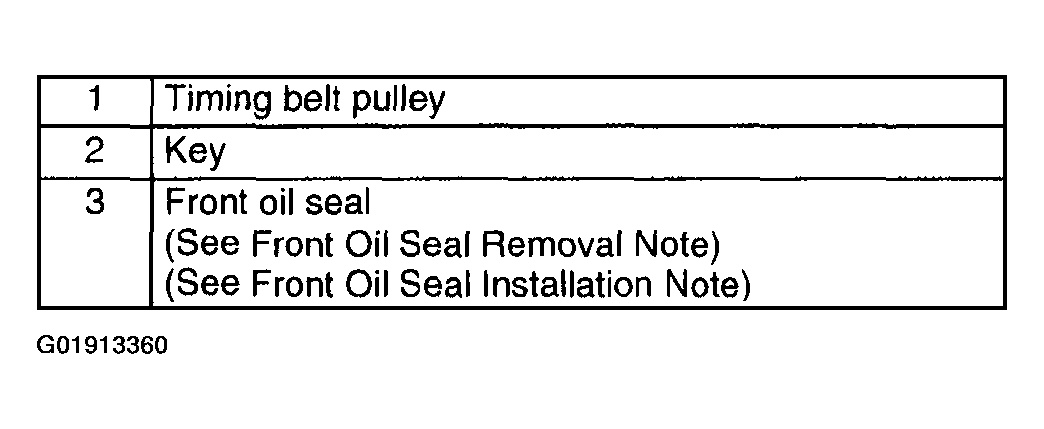

    Fig 1: Replacing Front Oil Seal (1 Of 2)
    G01913360Courtesy of MAZDA MOTORS CORP.

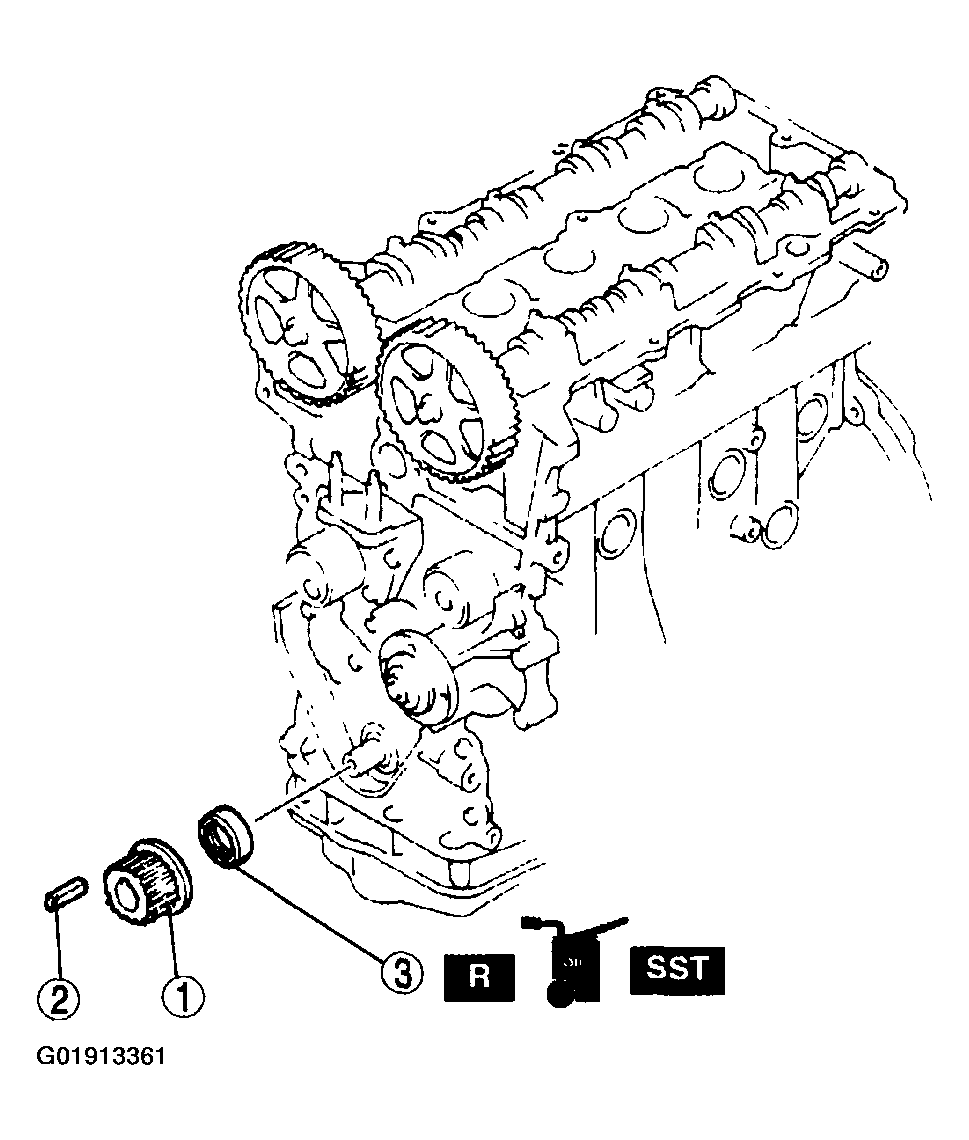

    Fig 2: Replacing Front Oil Seal (2 Of 2)
    G01913361Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
