Rear Seat Belt Removal/Installation: 5HB

  1. Remove the trunk side trim.
  2. Remove the bolts, then remove the rear seat belt.
  3. Install in the reverse order of removal.

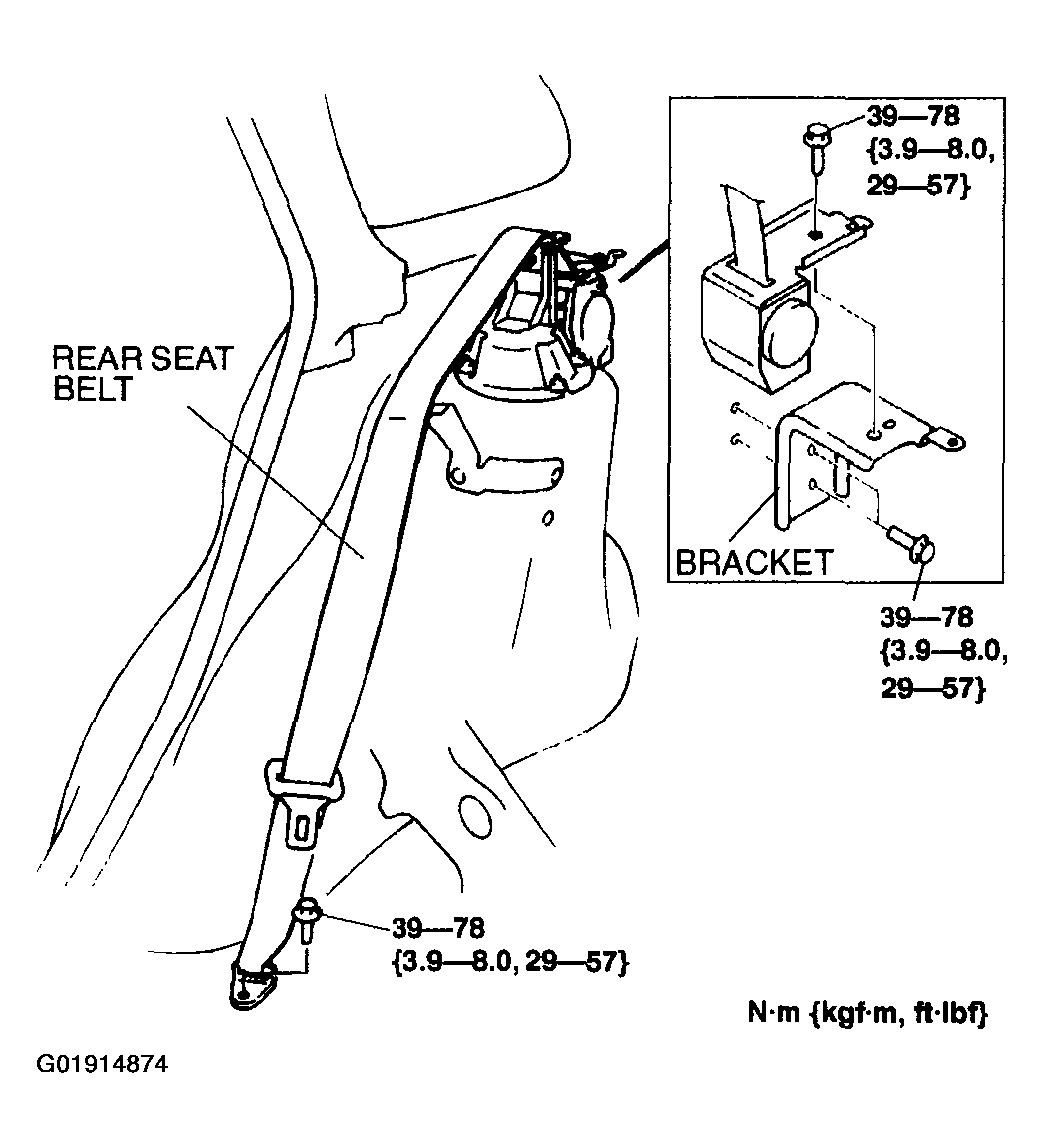

    Fig 1: Removing Rear Seat Belt (5HB)
    G01914874Courtesy of MAZDA MOTORS CORP.
