Front Seat Belt Removal/Installation

WARNING:
  • Handling the front seat belt (pre-tensioner seat belt) or the side air bag sensor improperly can accidentally deploy the pre-tensioner or the side air bag module, which may seriously injure you. Read SERVICE WARNINGS before handling the front seat belt or working around the B-pillar areas. (See AIR BAG SAFETY PRECAUTIONS .)
NOTE:
  • The side air bag sensor is located in the B-pillar.
CAUTION:
  • The ELR has a sup>ring that will unwind if the retractor's cover is removed. The sup>ring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.
  1. Disconnect the negative battery cable.
  2. Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL .) (See B-PILLAR LOWER TRIM INSTALLATION .)
  3. Remove in the order indicated in the table.
    Fig 1: Order Indication Table
    G01914871Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

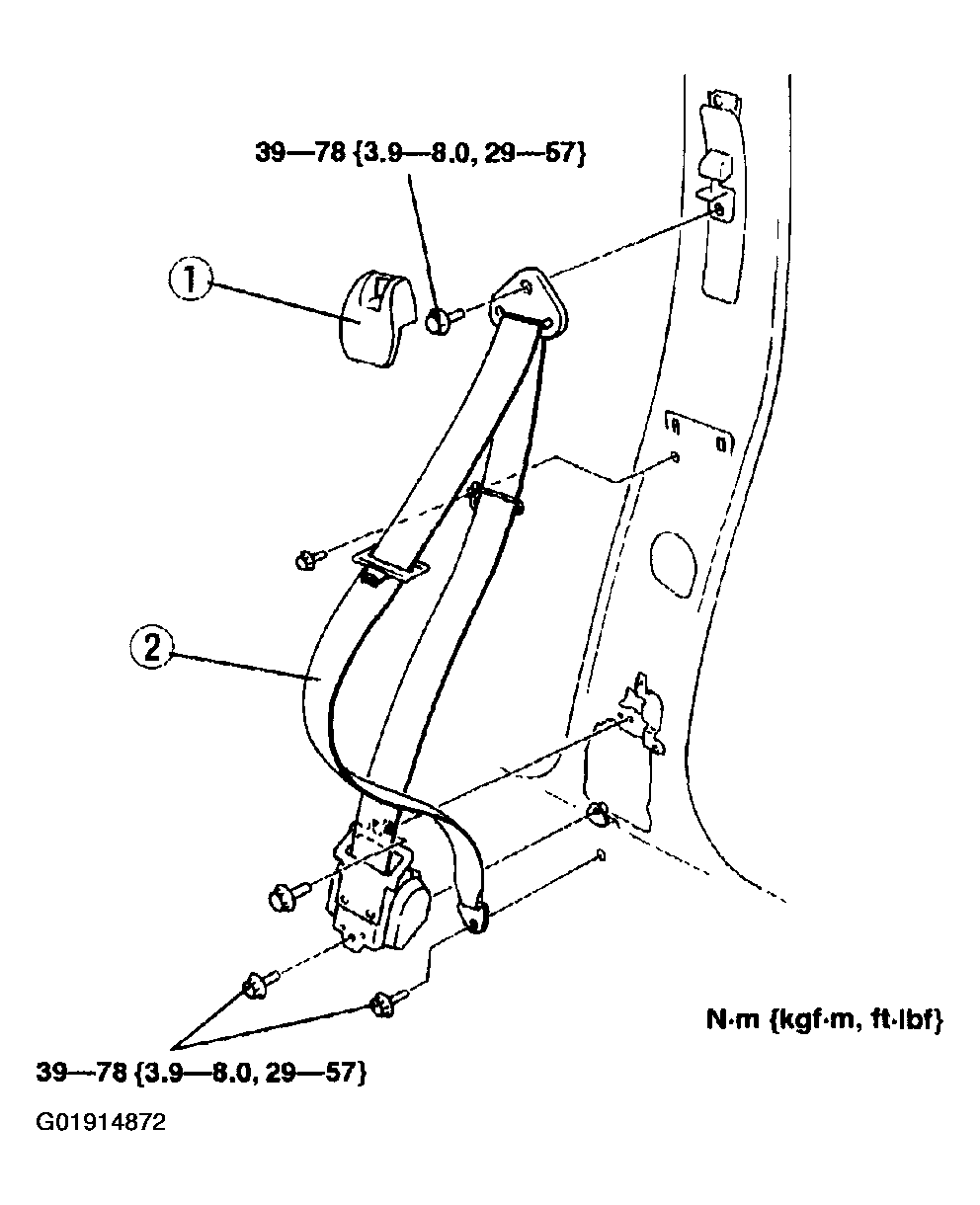

    Fig 2: Removing Anchor Cover And Front Seat Belt
    G01914872Courtesy of MAZDA MOTORS CORP.
